Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 200mm -
Fork RockShox BoXXer Select
-
Groupset Zee -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox BoXXer Select RC, DebonAir spring, low-speed compression adjust, rebound adjust, Maxle Stealth DH axle
Rear Shock
Marzocchi Bomber CR, rebound adjust, 241mm x 76mm, Spring rates: 300lbs/in (SM), 350lbs/in (MD), 400lbs/in (LG), 450lbs/in (XL)
Drivetrain
Rear Derailleur
Shimano Zee M640, 10-speed, SHADOW RD+
Front Derailleur
None
Shift Levers
Shimano Zee M640, 10-speed, RAPIDFIRE PLUS
Cassette
Shimano HG500, 10-speed, 11-25 tooth
Crank
Samox/Saracen Custom, 165mm length
Bottom Bracket
Samox, sealed cartridge bearings, 83mm English/BSA threaded
Chain
Shimano HG54
Chain Guide
MRP G4 CS, upper slider, lower pulley, with bashguard
Pedals
None
Wheels
Front Hub
Front: Formula DHL-93, sealed bearings, 110x20mm Boost, Rear: KT M5HR, sealed bearings, 157x12mm, HG driver
Rear Hub
Front: Formula DHL-93, sealed bearings, 110x20mm Boost, Rear: KT M5HR, sealed bearings, 157x12mm, HG driver
Rims
Jalco PHL32 OS, 32 hole, tubeless ready
Spokes
Double-butted stainless steel
Tires
Maxxis Minion DHR II, DH casing, 27.5" x 2.4"
Brakes
Brakes
Shimano MT520, 4-piston, 203mm 6-bolt rotors
Brake Levers
Shimano MT501
Cockpit
Stem
Race Face Chester, direct mount, 50mm length, 35mm bar clamp
Handlebar
Race Face Chester, 780mm width, 20mm rise, 35mm clamp diameter
Grips
ODI Elite Motion
Headset
Prestine PT-F13
Seat
Saddle
Saracen Custom DH MTB, CrMo rails
Seatpost
Race Face Chester, 325mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.368 mm | 1.309 mm | 1.273 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 786 mm | 806 mm | 826 mm | 854 mm |
| Rake | 53 mm | 53 mm | 53 mm | 57 mm |
| Trail | 122 mm | 122 mm | 122 mm | 117 mm |
| Stack | 602 mm | 602 mm | 602 mm | 611 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 593 mm | 613 mm | 630 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 125 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1226 mm | 1246 mm | 1266 mm | 1294 mm |
| Bottom Bracket Drop | 1 mm | 1 mm | 1 mm | 1 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

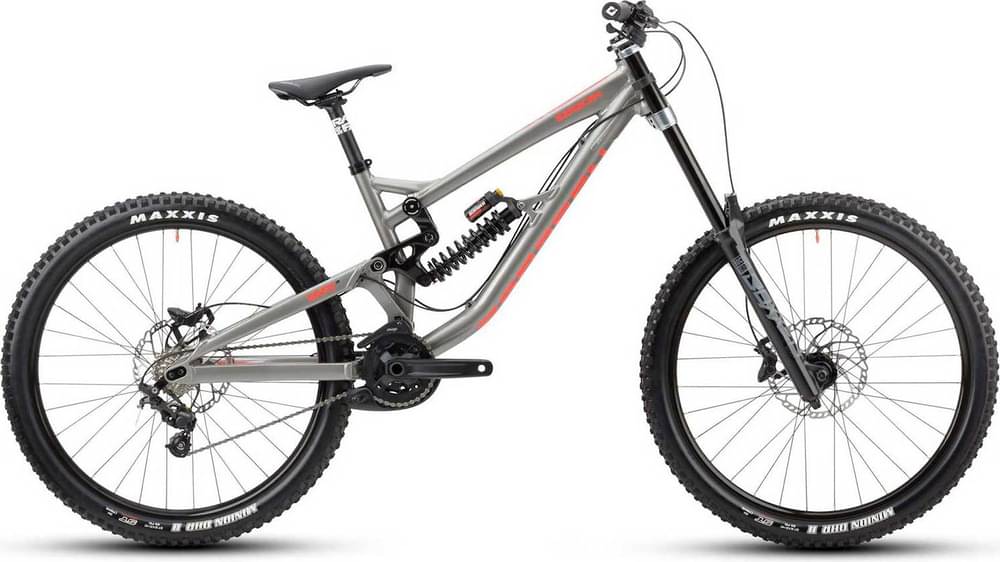

Myst AL is a Saracen Myst model. There are 14 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Downhill bikes average weight
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Saracen Myst AL it’s weighing 17.6 kg (38.8 lbs). At this weight, is considerably heavier than average. In conclusion, the average Downhill bike weighs 10.76% less than Myst AL.
Myst AL components
Fork
Saracen Myst AL 2021 bike is equipped with the RockShox BoXXer Select fork, and has 203mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Marzocchi Bomber CR rear shock model, which has a travel of 200mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Myst AL bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Myst AL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
