Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Factory Float 49
-
Groupset Saint -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 49 Float Factory, Kashima, FIT GRIP2, 4-way high and low speed compression, 20mm x 110mm DH
Rear Shock
FOX DHX2 Factory, Kashima, HSC, LSC, HSR, LSR, 241mm x 76mm, Coil: 350lbs (M), 400lbs (L)
Drivetrain
Rear Derailleur
Shimano Saint M820 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano Saint M820 Rapidfire Plus, 10-speed
Cassette
Shimano Deore CS-HG500, 10-speed, 11-25 tooth
Crank
Shimano Saint FC-M825, 165mm
Bottom Bracket
Shimano SM-BB80
Chain
Shimano HG54
Chain Guide
Gamut P30S
Pedals
None included
Wheels
Front Hub
Front: KT DHF412 Boost, Center Lock, 20mm thru axle, Rear: KT DHR215, Center Lock, 12mm Saracen Taper Lock axle
Rear Hub
Front: KT DHF412 Boost, Center Lock, 20mm thru axle, Rear: KT DHR215, Center Lock, 12mm Saracen Taper Lock axle
Rims
DT Swiss FR560 29, 32 hole
Spokes
Double butted stainless steel
Tires
Maxxis Minion DHR II, 3C, EXO, TR, 29 x 2.4"
Brakes
Brakes
Shimano Saint BR-M820 hydraulic disc, 203mm rotors
Brake Levers
Shimano Saint M820
Cockpit
Stem
PRO Tharsis 9.8 Direct Mount, 31.8mm, 0 degree rise, 50mm length
Handlebar
PRO Tharsis 9.8 7050 alloy riser, 5 degree up, 9 degree back, 20mm rise, 800mm width
Grips
Saracen Lock-on
Headset
Saracen Offset
Seat
Saddle
PRO Tharsis 9.8
Seatpost
PRO Tharsis 9.8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.343 mm |
| Bottom Bracket Height | 351 mm | 351 mm |
| Front Center | 807 mm | 830 mm |
| Rake | 59 mm | 59 mm |
| Trail | 125 mm | 125 mm |
| Stack | 613 mm | 618 mm |
| Reach | 440 mm | 460 mm |
| Top Tube Length | 593 mm | 614 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Head Tube Length | 90 mm | 95 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1251 mm | 1274 mm |
| Bottom Bracket Drop | 23 mm | 23 mm |
| Wheels | 29" | 29" |
About this model

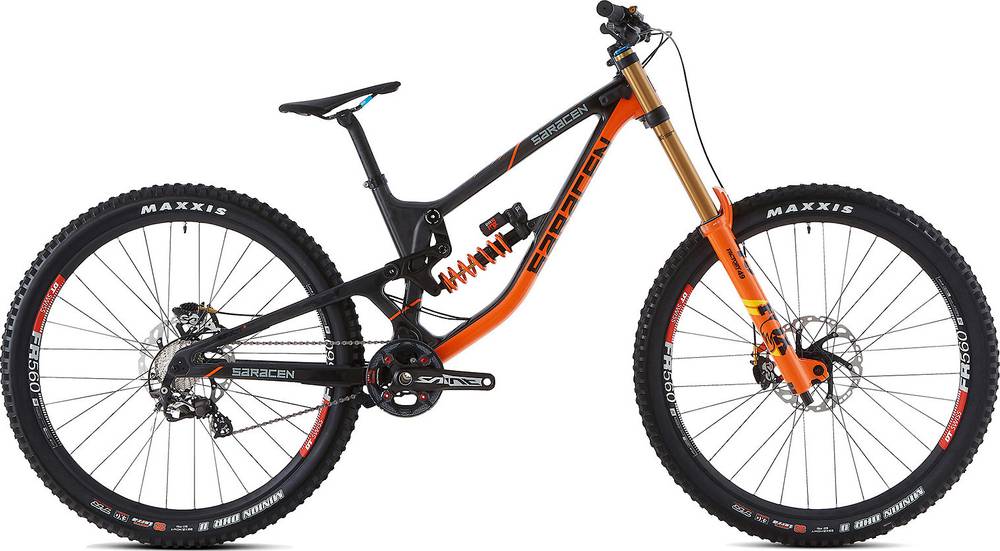

Myst Team 29 belongs to the Saracen Myst model. Saracen launched 14 bikes of this model so far. You can easily view all of the Saracen Myst bikes models from 2019, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Myst Team 29 components
Fork
Saracen Myst Team 29 2019 bike is equipped with the Fox Factory Float 49 fork, and has 203mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Myst Team 29 has a rear shock with a travel of 200mm. The model FOX DHX2 Factory is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Myst Team 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Saracen Myst Team 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
