Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Factory Float 49
-
Groupset Saint -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 49 FLOAT Factory, Kashima, FIT GRIP2, 4-way high and low speed compression, 20mm x 110mm thru axle
Rear Shock
FOX DHX2 Factory, Kashima, HSC, LSC, HSR, LSR, 241mm x 76mm, Spring rate: 350lbs on M, 400lbs on L
Drivetrain
Rear Derailleur
Shimano Saint RD-M820-SS, SHADOW RD+, 10-speed
Front Derailleur
None
Shift Levers
Shimano Saint M820, RAPIDFIRE PLUS, 10-speed
Cassette
Shimano Deore CS-HG500, 10-speed, 11-25 tooth
Crank
Shimano Saint FC-M825, 165mm
Bottom Bracket
Shimano Saint SM-BB80, BSA 83mm
Chain
Shimano HG54
Chain Guide
Shimano Saint SM-CD50
Pedals
Alloy MTB
Wheels
Front Hub
Front: Shimano Saint M820, centerlock, 20mm thru axle, Rear: KT DHR215, centerlock, 12mm Saracen Taper Lock axle
Rear Hub
Front: Shimano Saint M820, centerlock, 20mm thru axle, Rear: KT DHR215, centerlock, 12mm Saracen Taper Lock axle
Rims
DT Swiss FR 560 29", 32 hole
Spokes
Double butted stainless steel
Tires
Maxxis Assegai WT, 29" x 2.5", 3C, EXO, TR, 60 TPI
Brakes
Brakes
Shimano Saint BR-M820, 203mm rotors
Brake Levers
Shimano Saint M820
Cockpit
Stem
PRO Tharsis 9.8 Direct Mount, 0° rise, 50mm length
Handlebar
PRO Tharsis 9.8, 5° up, 9° back, 20mm rise, 800mm width, 31.8mm diameter
Grips
Saracen Lock-On
Headset
Saracen Custom, 0mm and +/- 5mm adjustable front center options
Seat
Saddle
PRO Tharsis 9.8
Seatpost
PRO Tharsis 9.8, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.343 mm |
| Bottom Bracket Height | 351 mm | 351 mm |
| Front Center | 807 mm | 830 mm |
| Rake | 59 mm | 59 mm |
| Trail | 125 mm | 125 mm |
| Stack | 613 mm | 618 mm |
| Reach | 440 mm | 460 mm |
| Top Tube Length | 593 mm | 614 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Head Tube Length | 90 mm | 95 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1251 mm | 1274 mm |
| Bottom Bracket Drop | 23 mm | 23 mm |
| Wheels | 29" | 29" |
Model Overview

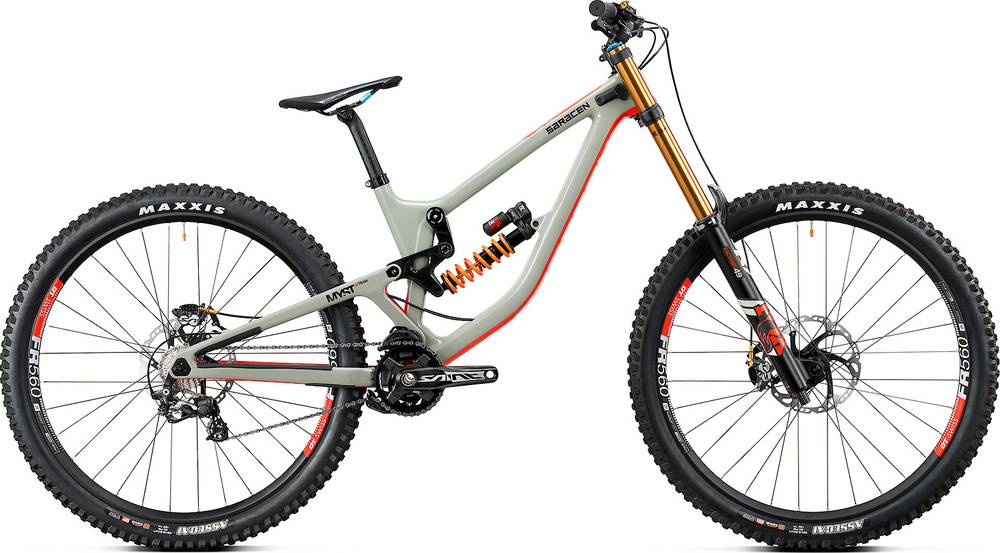

Myst Team 29 belongs to the Saracen Myst model. There are 14 bikes that carry this model name. You can easily view all of the Saracen Myst bikes models from 2020, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Fox Factory Float 49 is included from the factory. It has a travel distance of 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX DHX2 Factory model, with a travel of 200mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Myst Team 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
