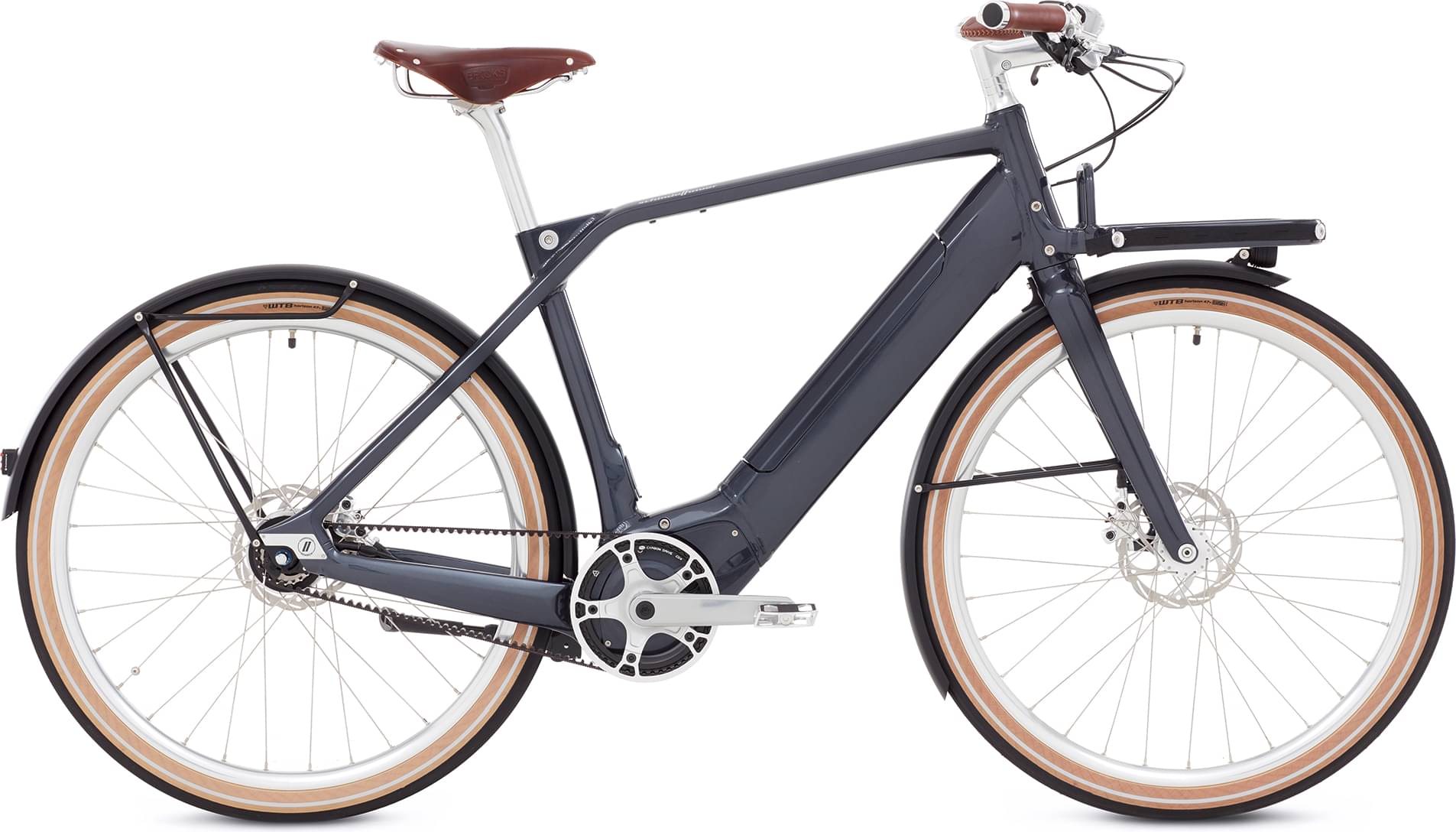

schindelhauer Heinrich 2022
2022 E-bike
Estimate price |
5,811$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Alfine -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch - Powertube 500, intube battery, energy: 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 186cm
LG
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Shimano - Alfine 8-speed internal gear hub
Crank
Miranda - Delta
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced
Tires
WTB - Horizon 47-584, with reflex stripes
Brakes
Brakes
Formula - CURA disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori - Stealth, aluminium
Handlebar
Satori - Noirette aluminium
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki integrated, tapered 1 1/8-1,5
Seat
Saddle
Brooks - B17
Seatpost
Schindelhauer
Motor & Battery
Motor
Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h
Battery
Bosch - Powertube 500, intube battery, energy: 500 Wh
Remote
Bosch - Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.507 mm | 1.372 mm | 1.389 mm |
| Stack | 609 mm | 609 mm | 628 mm |
| Reach | 404 mm | 444 mm | 452 mm |
| Top Tube Length | 590 mm | 630 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 200 mm | 200 mm | 220 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1067 mm | 1107 mm | 1122 mm |
| Standover Height | 784 mm | 807 mm | 840 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 200 cm |
About this model
Heinrich is a Schindelhauer E Heinrich model. Schindelhauer released 3 e-bikes variations of this model so far. Take a sneak peek at all Schindelhauer E Heinrich e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Schindelhauer Heinrich 2022 has a starting price of 5304$. Schindelhauer Heinrich enviolo 2022 on the other hand is the most expensive at 5516$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Schindelhauer released this model in 2022, its price was 5304$. Comparing the average cost of a Commuter e-bike to this one, you will see that Heinrich price is 106.46% more expensive.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 23.7 kg (52.25 lbs), the Heinrich model is a bit lighter than average. In short, the average Commuter e-bike weight is 6.33% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Heinrich has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Heinrich model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Heinrich has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Schindelhauer Heinrich e-bike has 3 sizes, in the range of 165 cm – 200 cm (5.41 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
