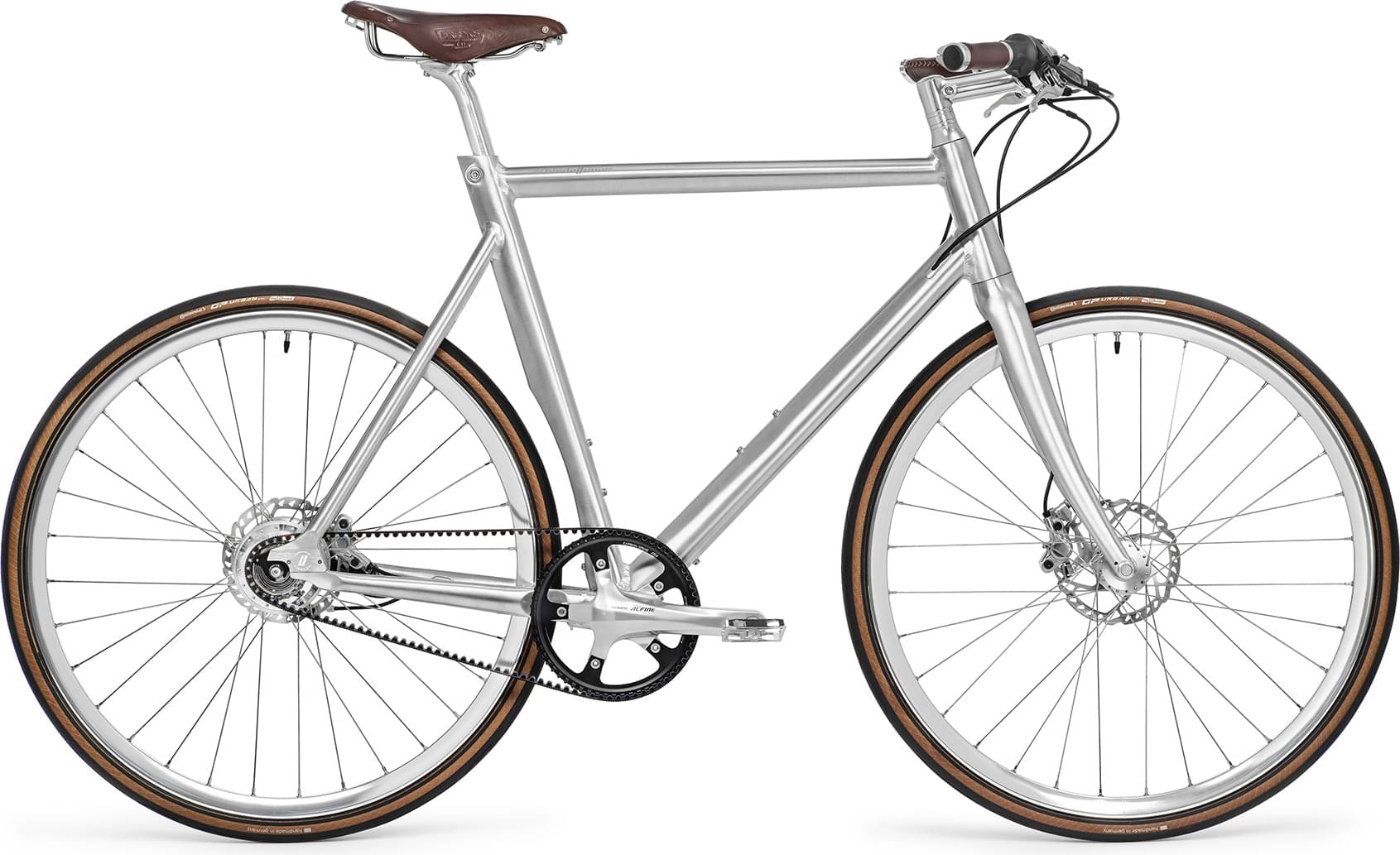

schindelhauer Ludwig XIV 2022
2022 Urban
Estimate price |
4,531$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 162cm
SM
159cm - 172cm
MD
169cm - 181cm
LG
178cm - 190cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
Aluminium fork (tapered), 15mm through-axle, for flat mount disc brakes
Drivetrain
Shift Levers
Rohloff - Speedhub 14-speed internal gear hub
Crank
Shimano - Alfine Hollowtech II
Bottom Bracket
BSA, Shimano - Alfine Hollowtech II
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub, Rohloff - Speedhub 14-speed internal gear hub, Alexrims - CXD26 rims w/ eyelets, Sapim - Race spokes, 3-cross and 2-cross laced
Tires
Continental - GP Urban Classic 35-622
Brakes
Brakes
Shimano - Alfine S7000 disc brake (hydraulic), 160mm
Cockpit
Stem
Schindelhauer
Handlebar
Satori - Noirette, aluminium
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki - integrated, tapered 1 1/8“-1,5“
Seat
Saddle
Brooks - B17
Seatpost
Schindelhauer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.39 mm | 1.426 mm | 1.407 mm | 1.389 mm |
| Stack | 538 mm | 552 mm | 566 mm | 581 mm | 600 mm |
| Reach | 395 mm | 397 mm | 397 mm | 413 mm | 432 mm |
| Top Tube Length | 540 mm | 550 mm | 560 mm | 580 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1008 mm | 1015 mm | 1020 mm | 1040 mm | 1065 mm |
| Standover Height | 790 mm | 809 mm | 831 mm | 852 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 169 cm | 178 cm | 187 cm |
| Rider Max Height | 162 cm | 172 cm | 181 cm | 190 cm | 198 cm |
Model Overview
Ludwig XIV is part of the Schindelhauer Ludwig model. Schindelhauer launched 6 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Schindelhauer Ludwig VIII/XI 2022 has a starting price of 2224$. Schindelhauer Ludwig XIV 2022 on the other hand is the most expensive at 4136$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hipster bikes
Our math shows that the average cost of a dependable Hipster bike is 612$. However, this doesn’t mean that if you spend less money on a Hipster bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 4136$. Comparing the average cost of a Hipster bike to this one, you will see that Ludwig XIV price is 575.82% more expensive.
Hipster bikes average weight
The average weight for Hipster bikes is 9.81 kg (21.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 11.3 kg (24.91 lbs), the Ludwig XIV model is much heavier than average. To sum up, it’s 15.19% heavier than the average weight of Hipster bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Ludwig XIV components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Schindelhauer Ludwig XIV 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ludwig XIV has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 151 cm – 198 cm (4.95 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
