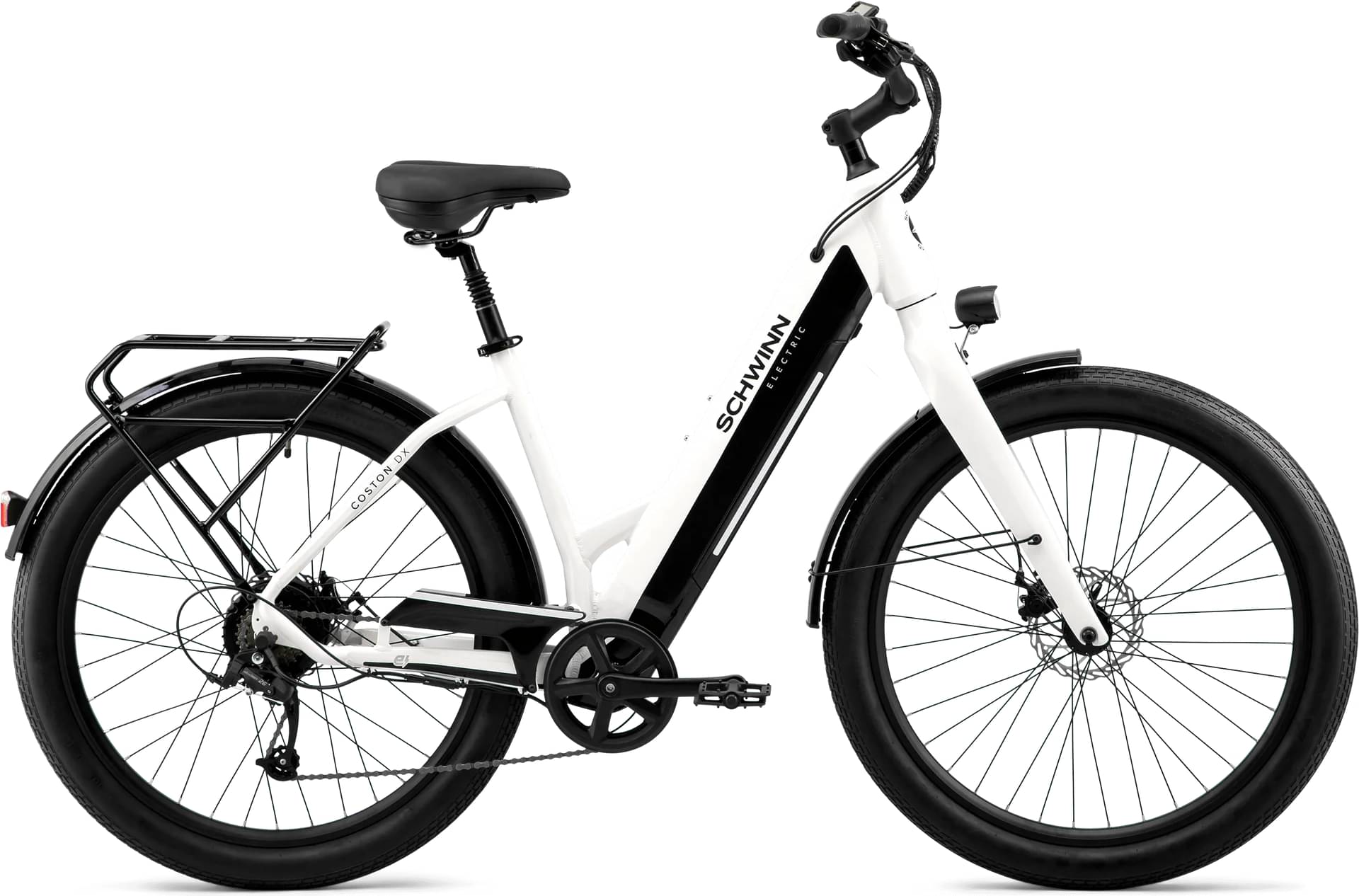

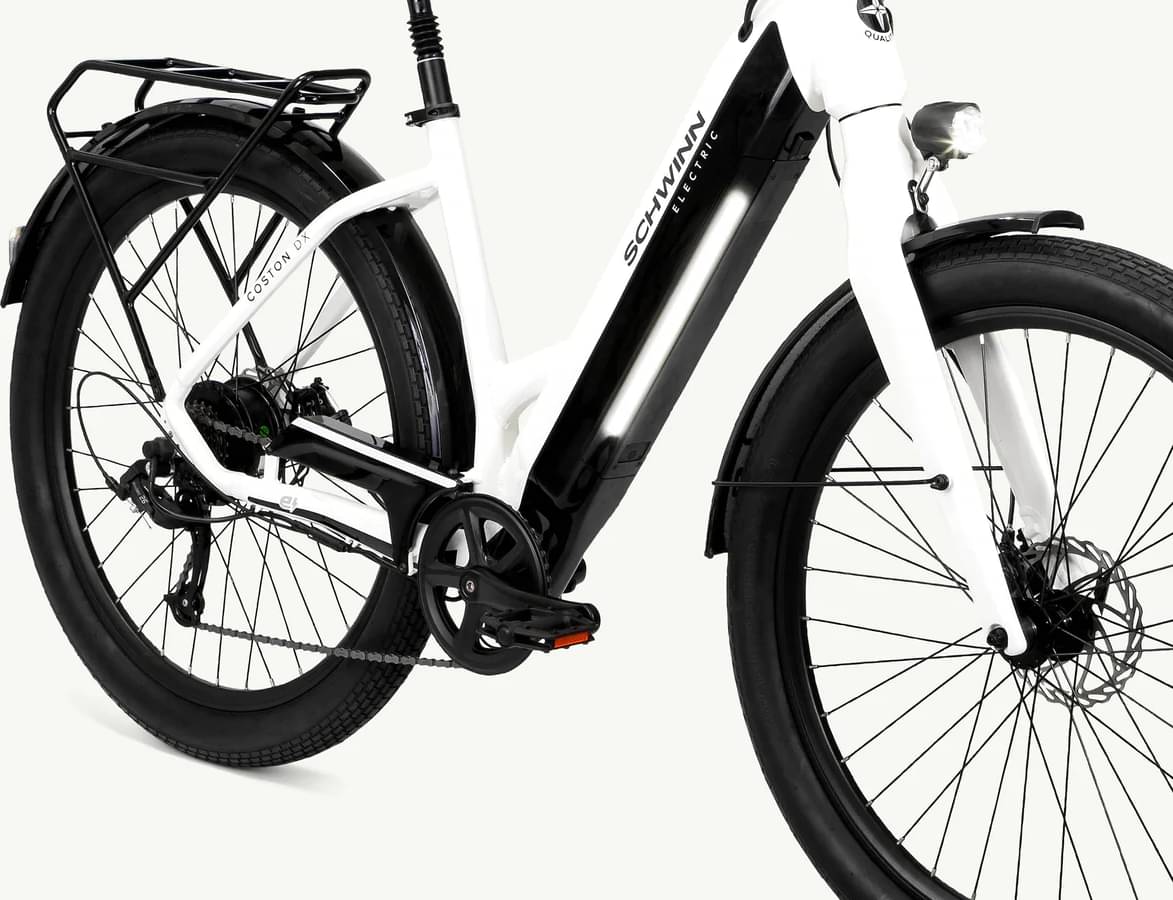

Schwinn Coston DX Step-Thru Electric Bike 2023
2023 E-bike
Estimate price |
2,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT -
Suspension Rigid -
Motor hub-drive -
Battery 360 watt-hour internal downtube battery -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
27.5” Alloy rigid Q/R
Drivetrain
Rear Derailleur
Microshift
Shift Levers
Microshift, 7
Crank
Aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC
Pedals
Nylon, reflector
Wheels
Rear Hub
Aluminum, ball bearing, 135 mm bolt-on, 36H, 6-bolt
Rims
Aluminum, aluminum double wall, 24 mm ID, 36H, non tubeless
Spokes
14G/13G, stainless steel, black
Tires
27.5 in x 2.6 in, wire bead
Brakes
Brakes
JAK 7, mechanical disc, aluminum, 160 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless front load, 90 mm, 10° rise, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 740 mm width, 95 mm rise, 31.8 mm clamp
Grips
Schwinn, semi-ergo
Headset
Threadless, retainer bearing
Seat

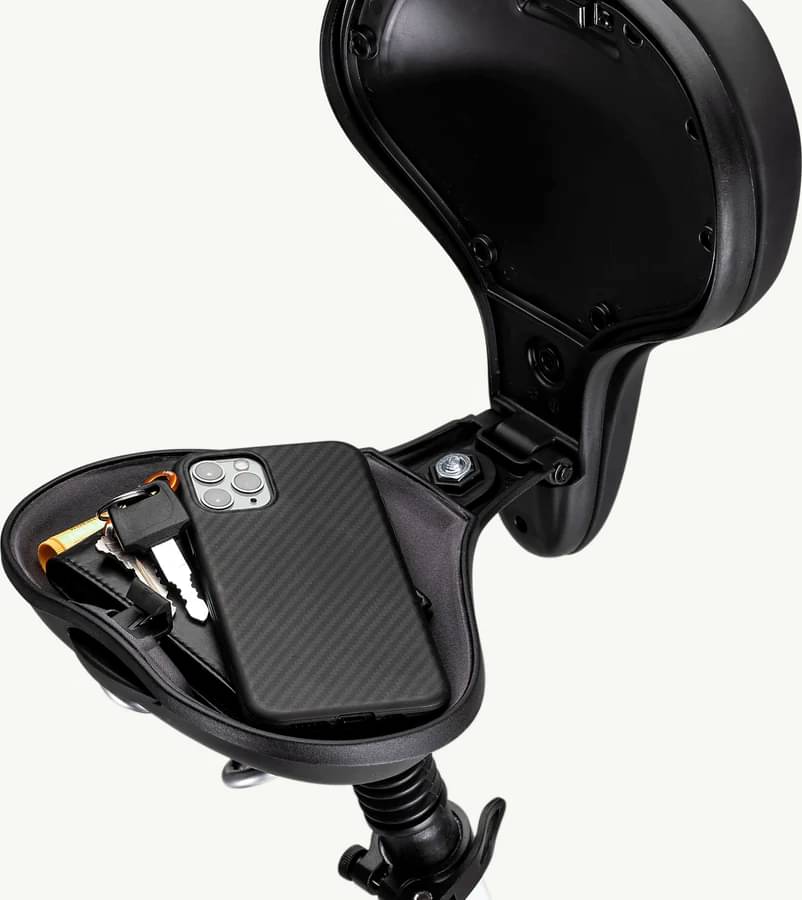

Saddle
Schwinn, steel rails
Seatpost
Aluminum, 350 mm, 20 mm offset, 30.4 mm
Motor & Battery
Motor
250-watt brushless geared hub drive motor
Battery
360 watt-hour internal downtube battery
Fit data
Geometry
Numbers for sizing and ride feel.
Model Overview
Coston DX Step-Thru Electric Bike completes the Schwinn E Coston model. There are 18 e-bikes that carry this model name. You can easily view all of the Schwinn E Coston e-bikes models from 2023, here.
Model range prices
The most economical model, the Schwinn Coston CE Step-Thru Electric Bike 2023 has a starting price of 1799$. Schwinn Coston DX Electric Bike 2023 on the other hand is the most expensive at 2099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 2099$. Comparing this to the average Commuter e-bike price, we see that the price is 22.39% smaller.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Coston DX Step-Thru Electric Bike model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
