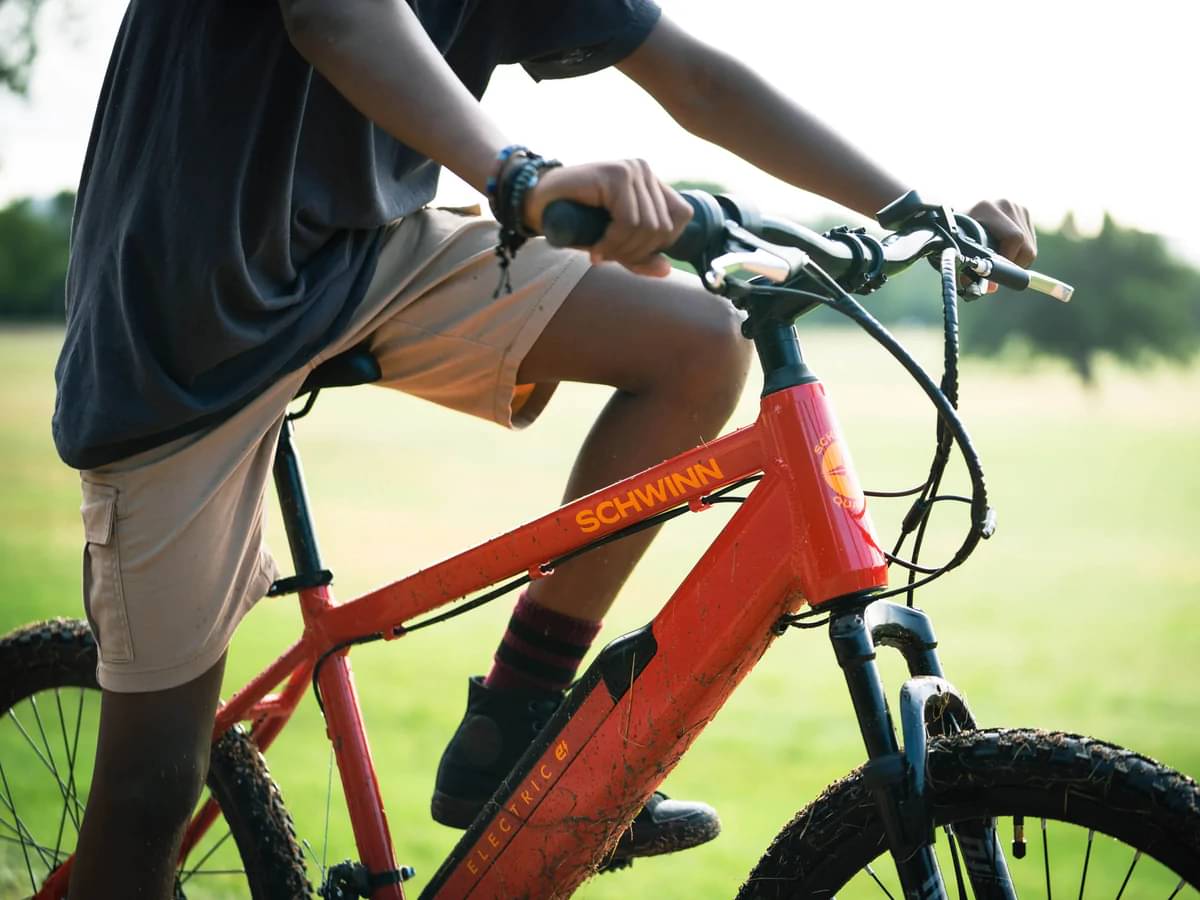

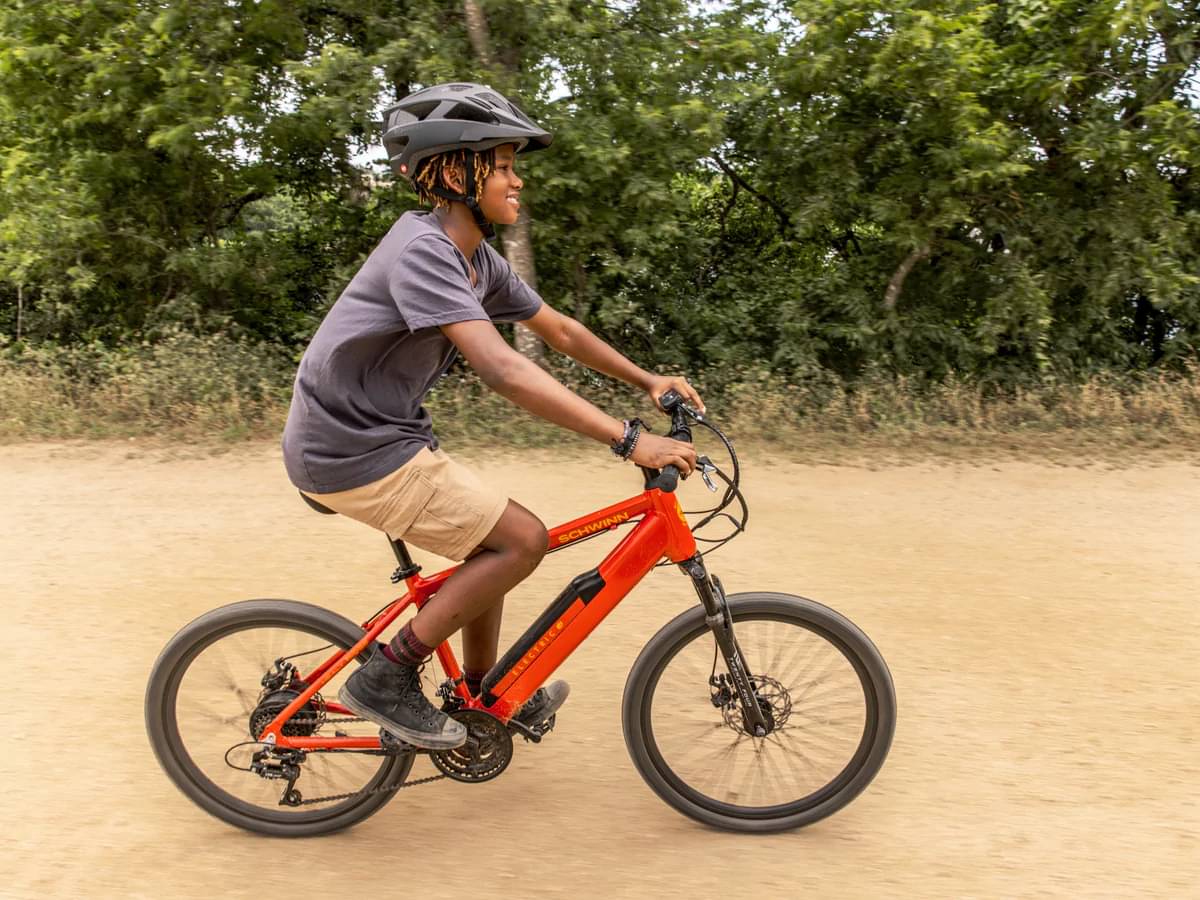

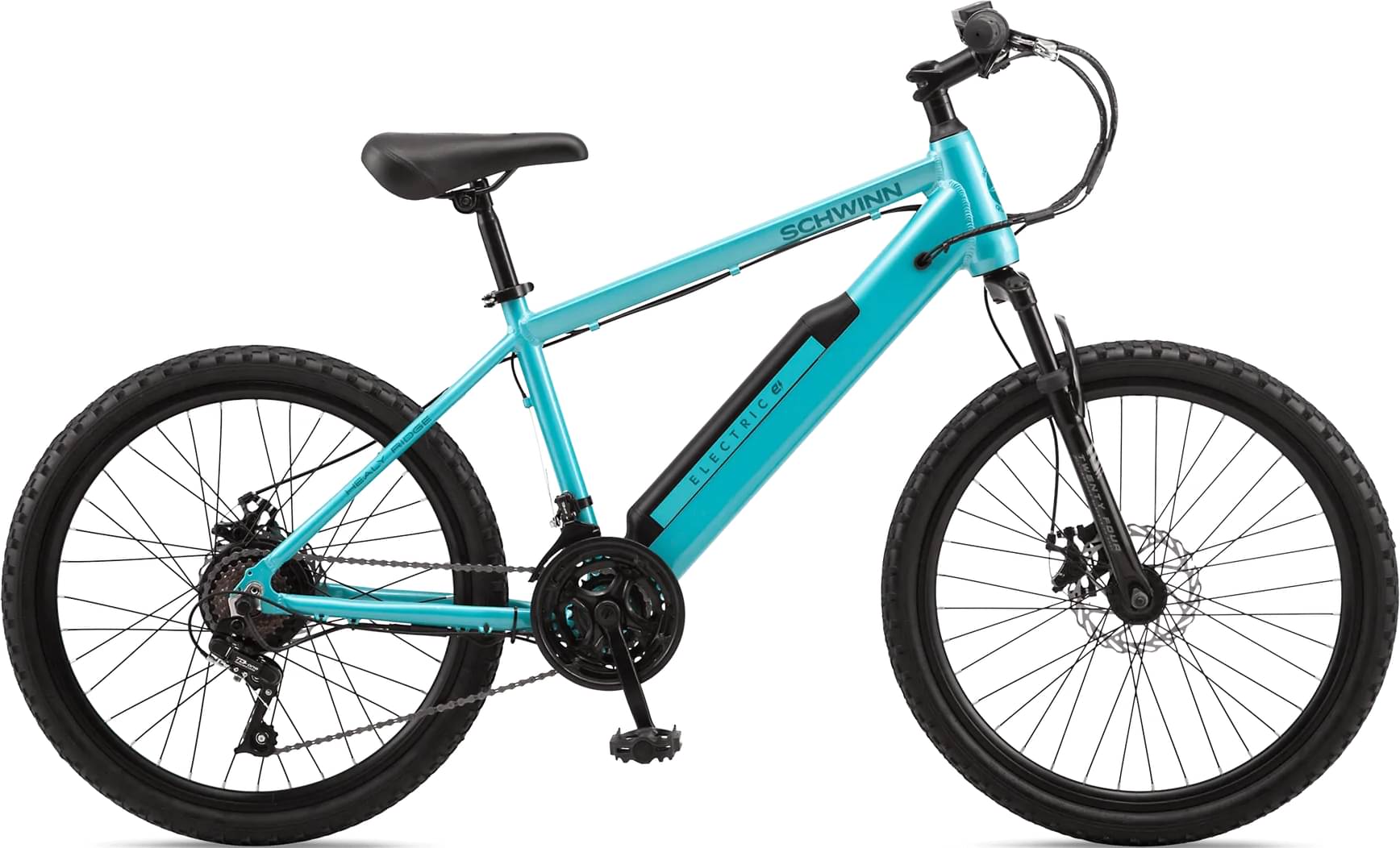

Schwinn Healy Ridge 24in Electric Bike 2022
2022 E-bike
Estimate price |
1,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 50mm -
Groupset microSHIFT -
Suspension Hardtail -
Motor 250W hub-drive -
Battery 280W Lithium Ion Battery -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Schwinn, 24", Hi-Ten steel, 100 mm, nutted, 50 mm travel
Drivetrain
Rear Derailleur
Microshift
Shift Levers
Microshift, 6
Crank
Forged steel, 48/38/28T
Bottom Bracket
Cartridge, square taper, 73 mm
Chain
KMC
Pedals
Steel / resin
Wheels
Rear Hub
Steel, ball bearing, 36H, 6-bolt
Rims
Aluminum, double wall, 36H, non tubeless
Spokes
14G/13G, steel, black
Tires
24 in x 2.1 in, wire bead
Brakes
Brakes
JAK 7, mechanical disc, aluminum, 160 mm
Cockpit
Stem
Threadless front load, 80 mm, 7°, 25.4 mm clamp
Handlebar
Aluminum, 640 mm width, 30 mm rise, 25.4 mm clamp
Grips
Schwinn, Kraton
Headset
Threadless, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Motor & Battery
Motor
250W geared hub drive motor
Battery
280W Lithium Ion Battery

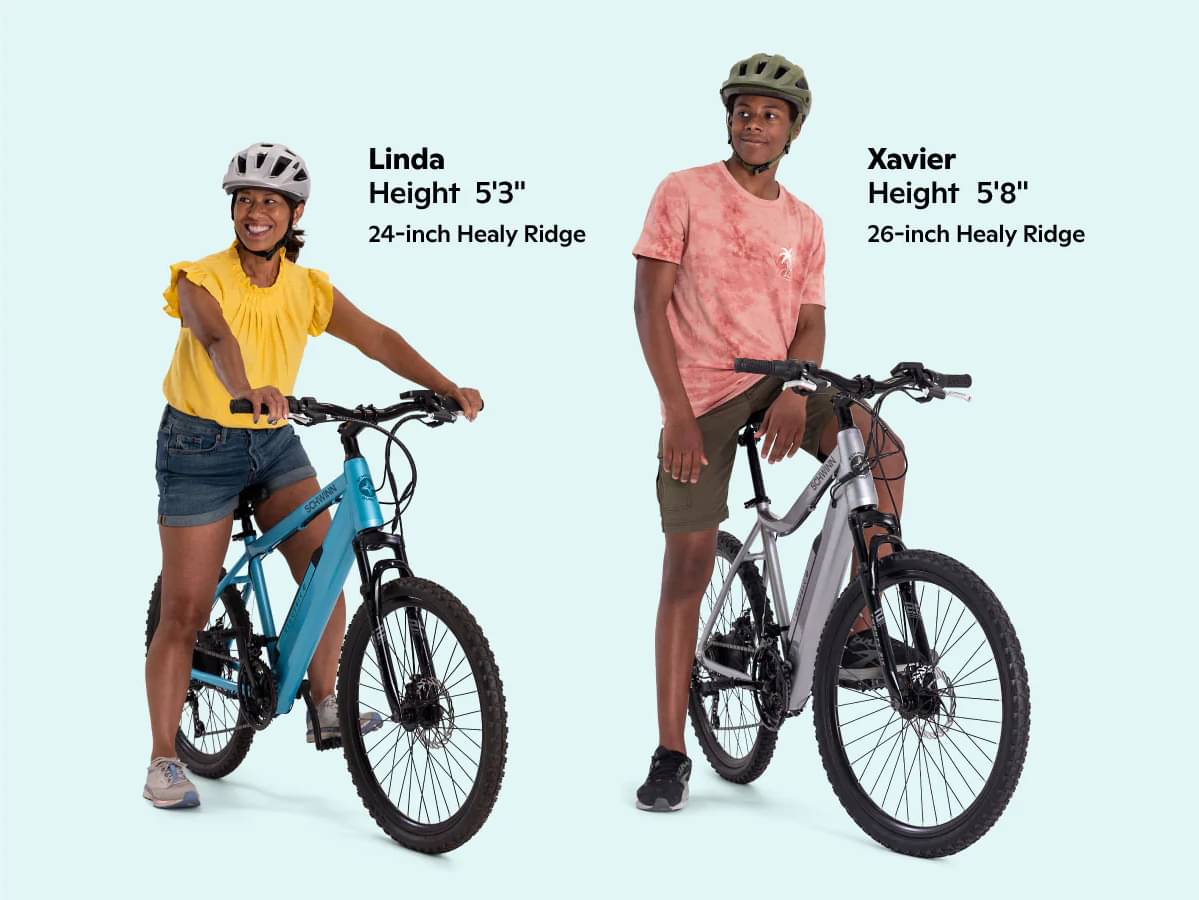

Fit data
Geometry
Numbers for sizing and ride feel.
About this model
Healy Ridge 24in Electric Bike belongs to the Schwinn E Healy model. Schwinn released 6 e-bikes variations of this model so far. You can easily view all of the Schwinn E Healy e-bikes models from 2022, here.
Model range prices
Schwinn Healy Ridge 24in Electric Bike 2022 is the most economical model, with a starting price of 1099$. Schwinn Healy Ridge 24 Electric Bike 2022 on the other hand costs 1099$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Youth e-bikes
According to our math, the average price for a trustworthy Youth e-bike is 1895$. However, this doesn’t mean that if you spend less money on a Youth e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Schwinn released this model in 2022, its price was 1099$. Comparing this to the average Youth e-bike price, we see that the price is 72.43% smaller.
Overview of components

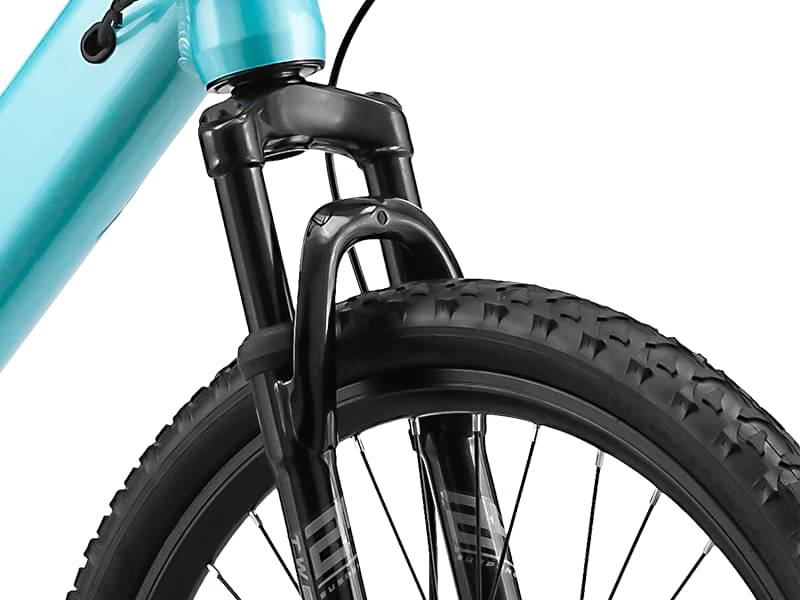

Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the Healy Ridge 24in Electric Bike e-bike is equipped with the 24″ aluminum model. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.

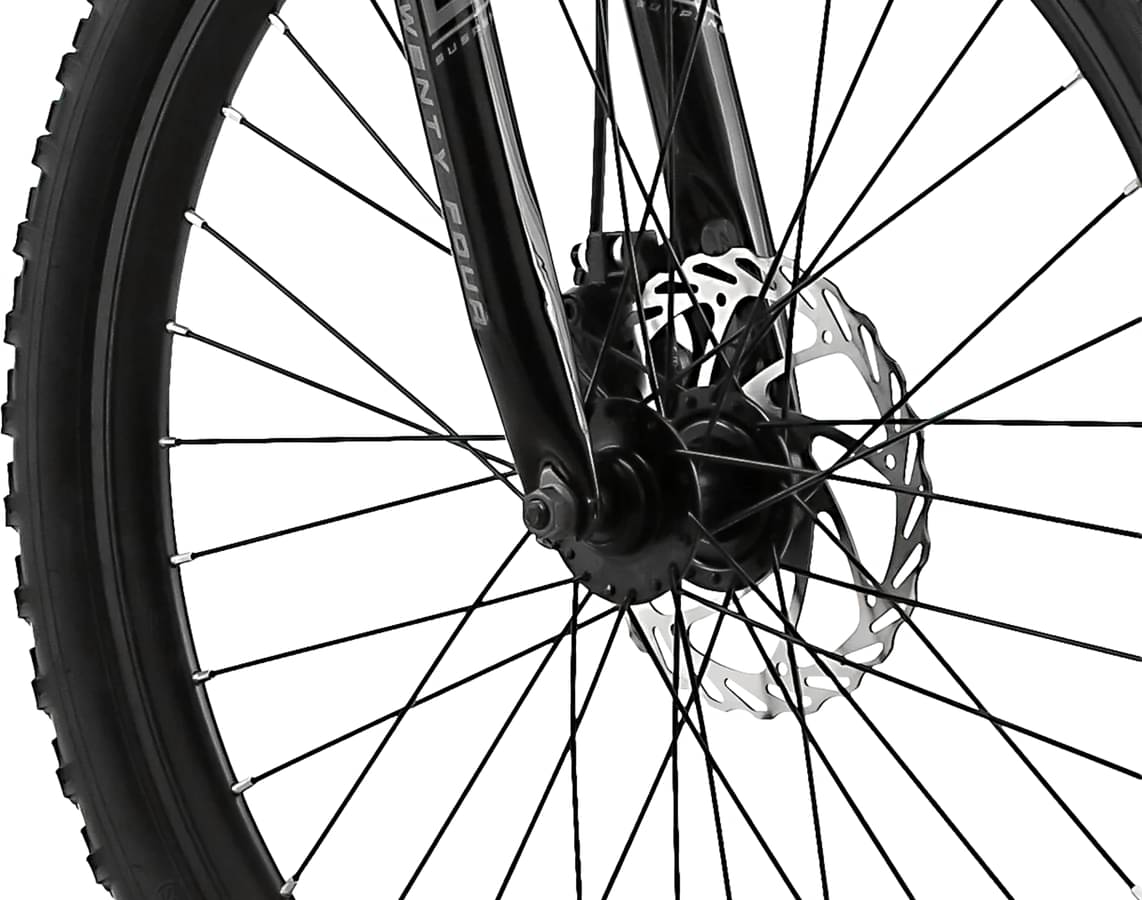

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Healy Ridge 24in Electric Bike comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
