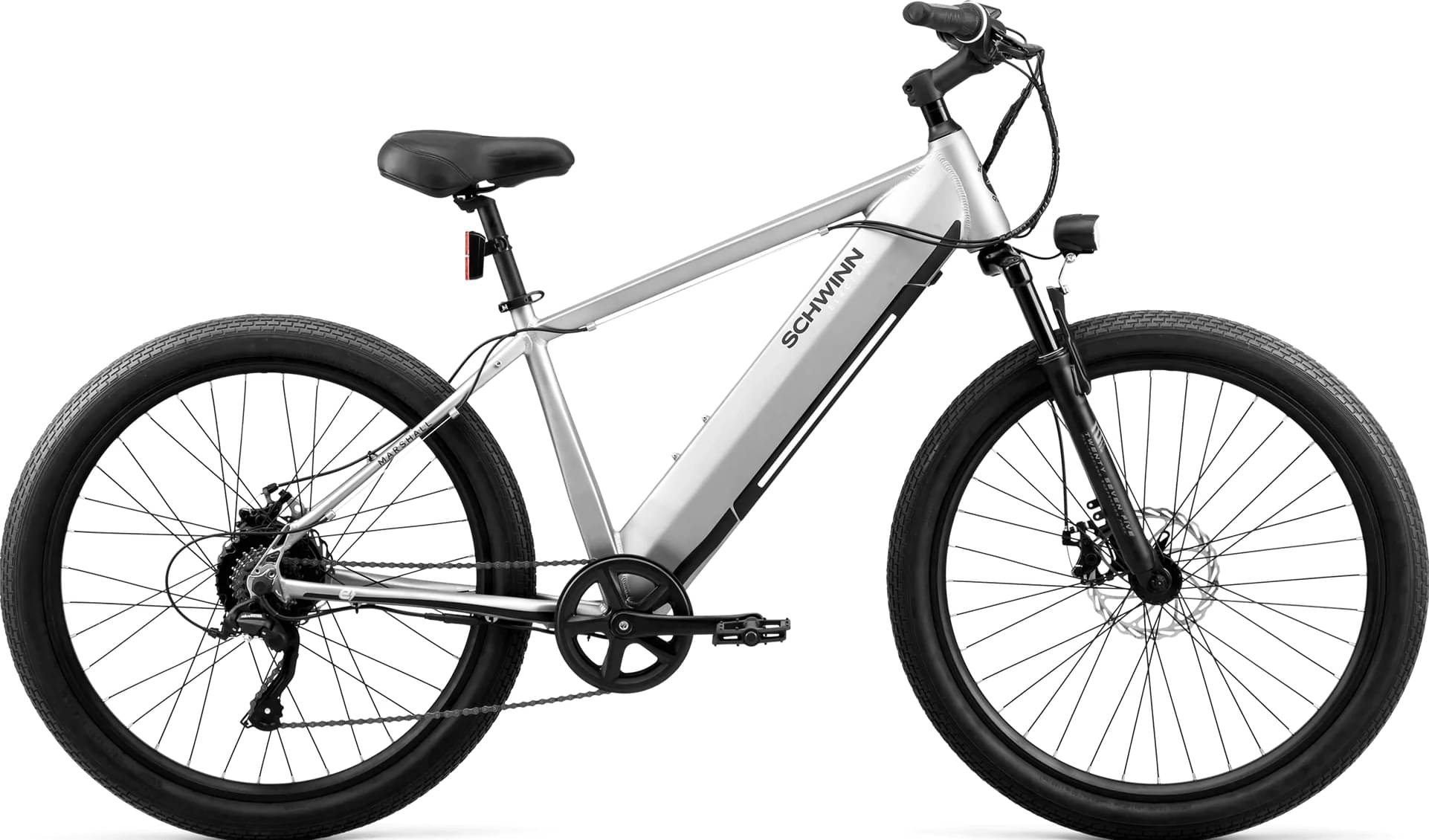

Schwinn Marshall Electric Bike 2022
2022 E-bike
Estimate price |
1,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset microSHIFT -
Suspension Hardtail -
Motor hub-drive -
Battery 288 watt-hour internal downtube battery -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
27.5", Hi-Ten steel, 100 mm, QR, 100 mm travel
Drivetrain
Rear Derailleur
Microshift
Shift Levers
Microshift, 7
Crank
Aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Aluminum, ball bearing, bolt-on, 36H, 6-bolt
Rims
Aluminum, double wall, 24 mm ID, 36H, non tubeless
Spokes
14G/13G, stainless steel, black
Tires
27.5 in x 2.3 in, wire bead
Brakes
Brakes
JAK 7, mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless front load, 90 mm, 10° rise, 31.8 mm clamp
Handlebar
Aluminum, 660 mm width, 20 mm rise, 31.8 mm clamp
Grips
Schwinn, semi-ergo
Headset
Threadless, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Motor & Battery
Motor
250-watt brushless geared hub drive motor
Battery
288 watt-hour internal downtube battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG |
|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm |
| Front Center | 694 mm | 703 mm |
| Rake | 34 mm | 34 mm |
| Top Tube Length | 640 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° |
| Seat Tube Length | 490 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 175 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1169 mm | 1178 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Wheels | 27" | 27" |
About this model
Marshall Electric Bike belongs to the Schwinn E Marshall model. There are 8 e-bikes that carry this model name. Take a sneak peek at all Schwinn E Marshall e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Schwinn Marshall 27.5 Step-Thru Electric Bike 2022 has a starting price of 1599$. Schwinn Marshall Electric Bike 2022 on the other hand is the most expensive at 1599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1599$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that Marshall Electric Bike price is 53.41% smaller.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Marshall Electric Bike components
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the Marshall Electric Bike model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.

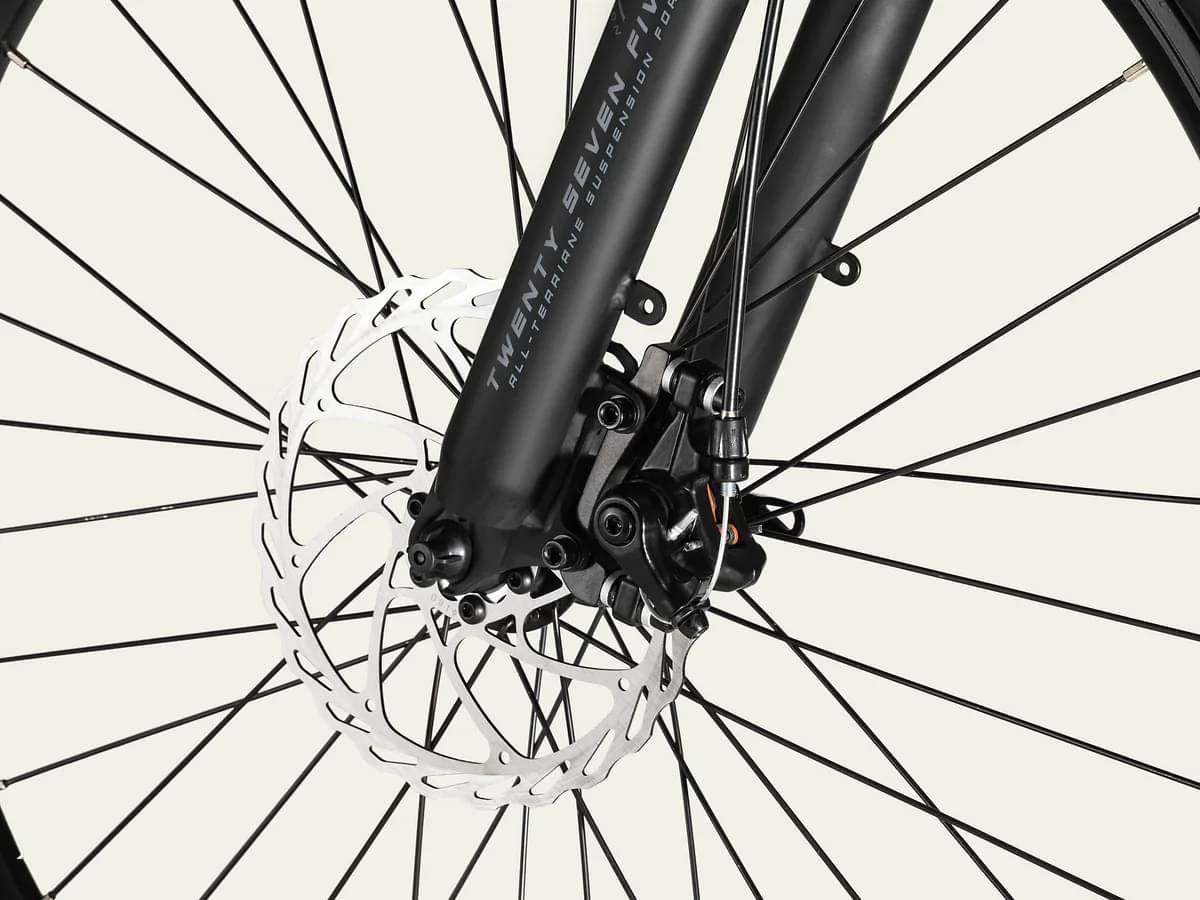

Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
