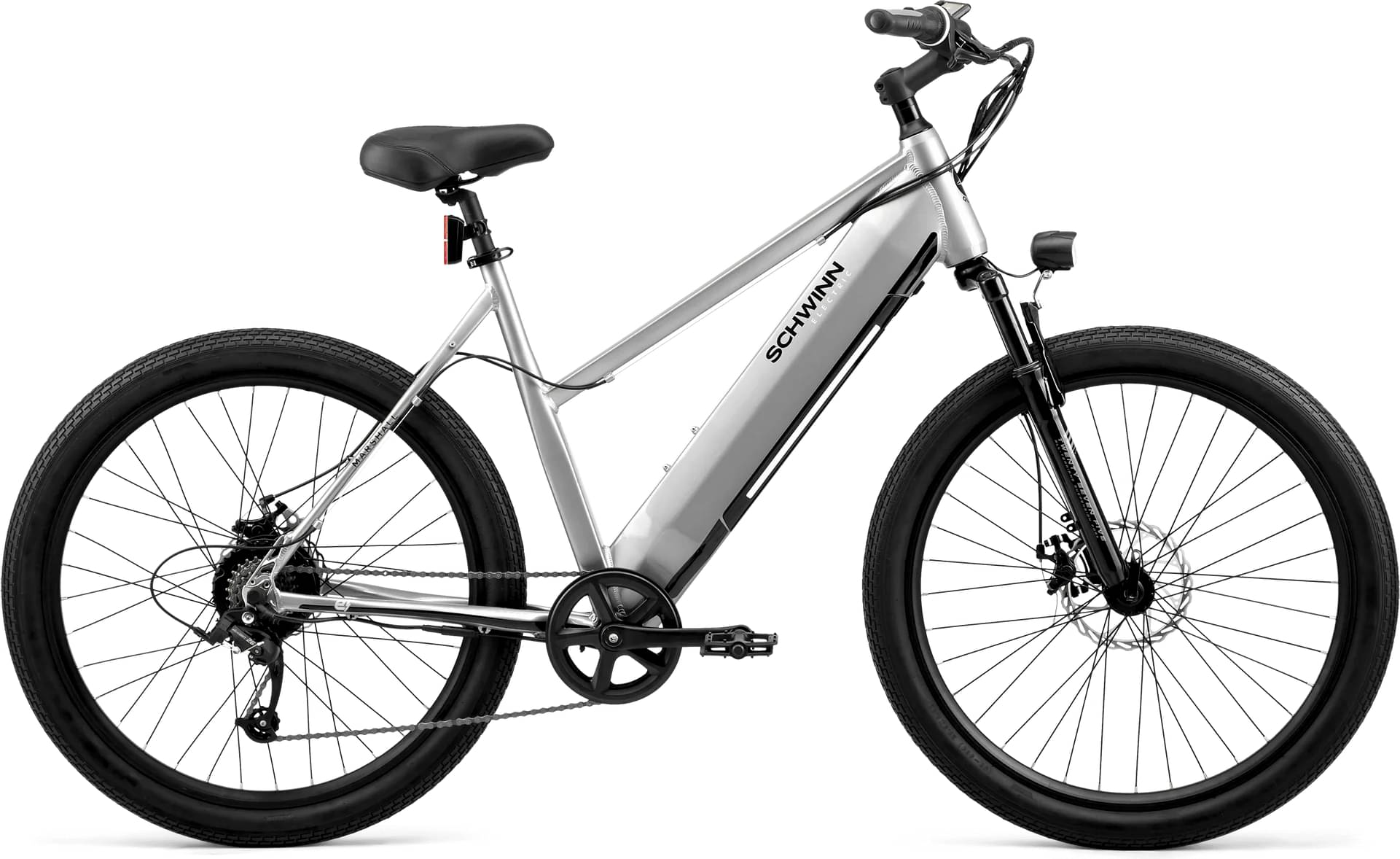

Schwinn Marshall Step-Thru Electric Bike 2023
2023 E-bike
Estimate price |
1,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset microSHIFT -
Suspension Hardtail -
Motor hub-drive -
Battery 288 watt-hour internal downtube battery -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
27.5", Hi-Ten steel, 100 mm, QR, 100 mm travel
Drivetrain
Rear Derailleur
Microshift
Shift Levers
Microshift, 7
Crank
Aluminum 170 mm, 42T
Bottom Bracket
Cartridge, square taper, 68 mm
Chain
KMC
Pedals
Steel / resin, reflector
Wheels
Rear Hub
Aluminum, ball bearing, bolt-on, 36H, 6-bolt
Rims
Aluminum, double wall, 24 mm ID, 36H, non tubeless
Spokes
14G/13G, stainless steel, black
Tires
27.5 in x 2.3 in, wire bead
Brakes
Brakes
JAK 7, mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threadless front load, 90 mm, 10° rise, 31.8 mm clamp
Handlebar
Aluminum, 660 mm width, 20 mm rise, 31.8 mm clamp
Grips
Schwinn, semi-ergo
Headset
Threadless, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Motor & Battery
Motor
250-watt brushless geared hub drive motor
Battery
288 watt-hour internal downtube battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG |
|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm |
| Front Center | 694 mm | 703 mm |
| Rake | 34 mm | 34 mm |
| Top Tube Length | 640 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° |
| Seat Tube Length | 490 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 175 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1169 mm | 1178 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Wheels | 27" | 27" |
Model Overview
Marshall Step-Thru Electric Bike completes the Schwinn E Marshall model. There are 8 e-bikes that carry this model name. Take a sneak peek at all Schwinn E Marshall e-bikes models from 2023, by clicking here.
Model range prices
Schwinn Marshall Step-Thru Electric Bike 2023 is the most affordable e-bike of this model and has a price of 1599$. On the other hand, Schwinn Marshall Electric Bike 2023, is the most expensive and costs 1599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 1599$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that Marshall Step-Thru Electric Bike price is 53.41% lower.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When leaving the production line, the Marshall Step-Thru Electric Bike model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.

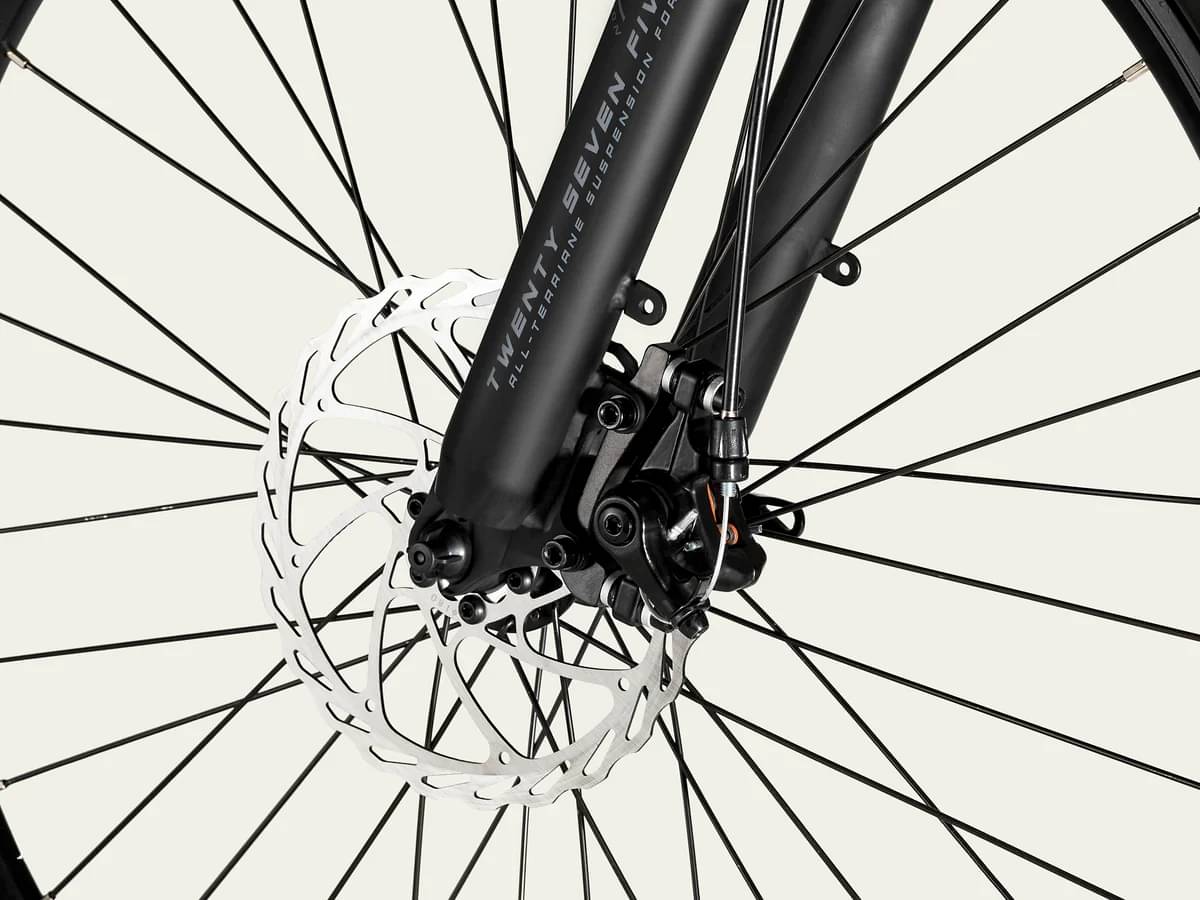

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Marshall Step-Thru Electric Bike comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
