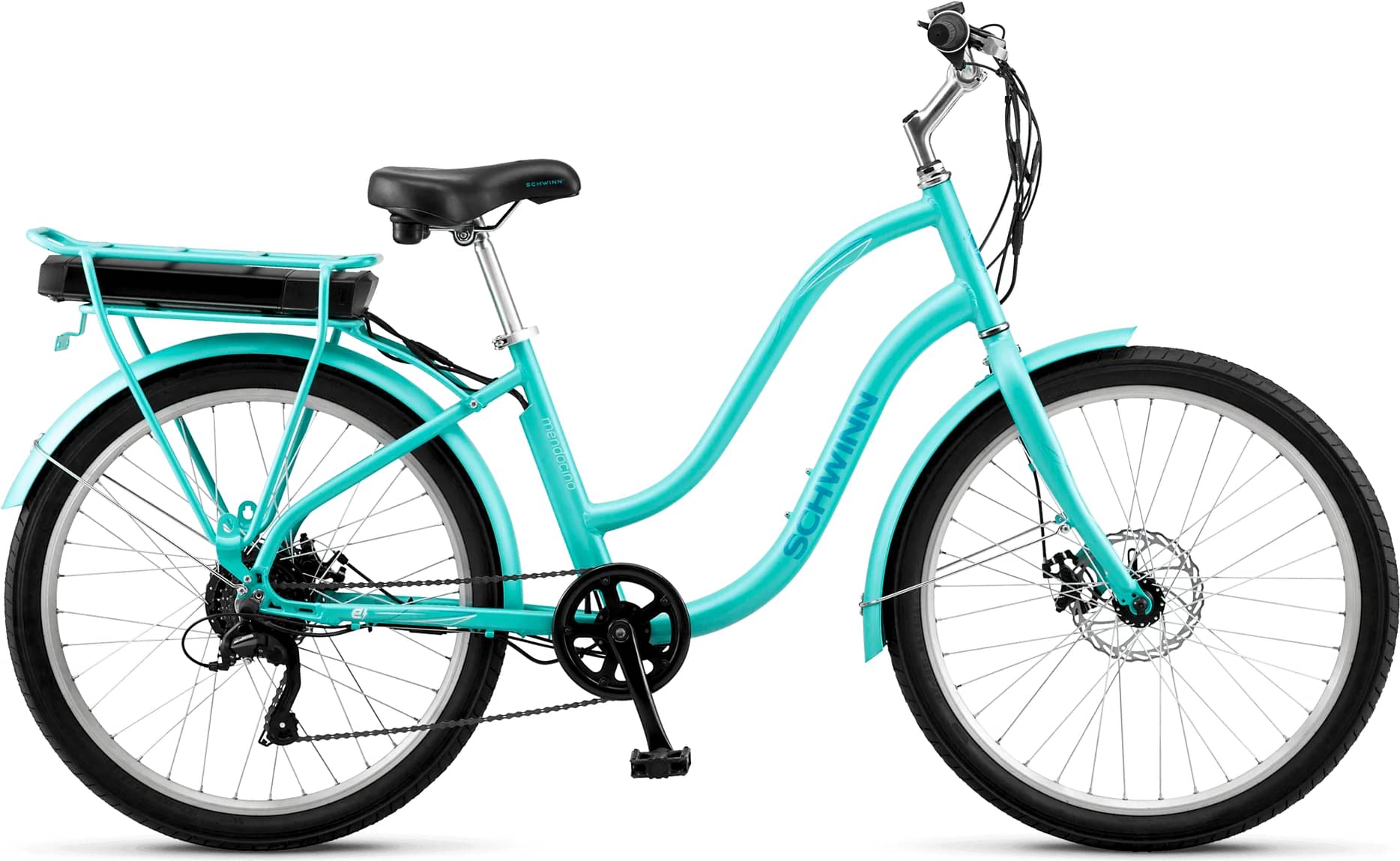

Schwinn Mendocino 2 Step-Thru Electric Bike 2023
2023 E-bike
Estimate price |
1,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Motor hub-drive -
Battery 313 watt-hour rack mounted battery -
Drivetrain 1 × 6 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Hi-Ten steel, 26", Hi-Ten steel, 100 mm bolt-on, bolt-on
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano REVOSHIFT twist, 6-speed
Crank
3-piece, 42T
Bottom Bracket
Cartridge, square taper, 68mm
Chain
KMC
Pedals
Nylon
Wheels
Rear Hub
Aluminum, sealed-bearing, 10 mm x 135 mm QR, 36H, 6-bolt
Rims
Aluminum, double wall, 19 mm ID, 36H, non tubeless
Spokes
14G/13G, steel
Tires
26 in x 2.125 in, wire bead
Brakes
Brakes
Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threaded front load, 30° rise, 25.4 mm clamp
Handlebar
Cruiser, Hi-Ten steel, 635 mm width, 50 mm rise, 25.4 mm clamp
Grips
130 mm
Headset
Threaded, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Aluminum, 400 mm, 20 mm offset
Motor & Battery
Motor
250-watt hub drive motor

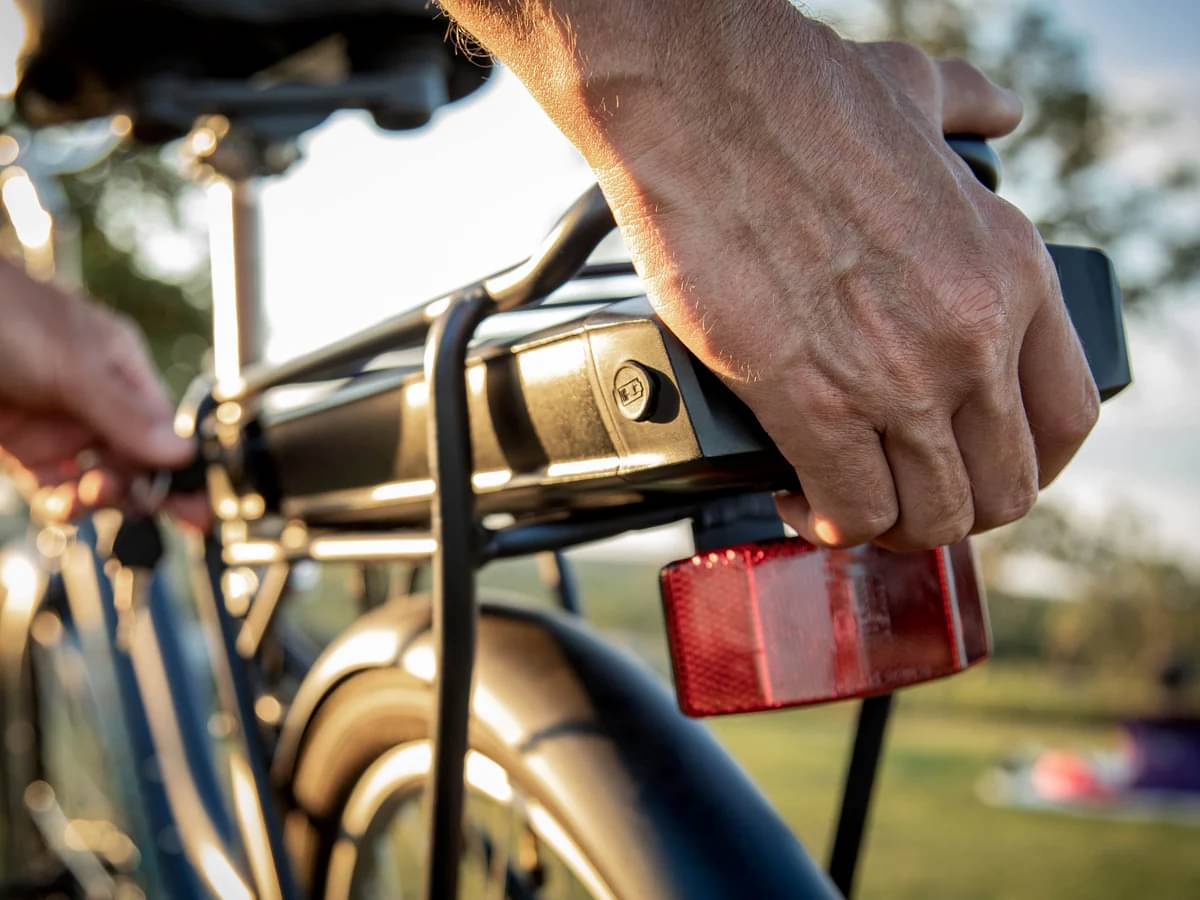

Battery
313 watt-hour rack mounted battery
Fit data
Geometry
Numbers for sizing and ride feel.
About this model
Mendocino 2 Step-Thru Electric Bike belongs to the Schwinn E Mendocino model. Schwinn released 6 e-bikes variations of this model so far. Take a sneak peek at all Schwinn E Mendocino e-bikes models from 2023, by clicking here.
Model range prices
Schwinn Mendocino Step-Thru Electric Bike 2023 is the most affordable e-bike of this model and has a price of 1299$. On the other hand, Schwinn Mendocino 2 Step-Thru Electric Bike 2023, is the most expensive and costs 1599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Comfort e-bikes
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Schwinn Mendocino 2 Step-Thru Electric Bike price was 1599$. If we compare this with the average Comfort e-bike cost we notice that the price is 22.39% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this e-bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The Mendocino 2 Step-Thru Electric Bike 2023 e-bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mendocino 2 Step-Thru Electric Bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
