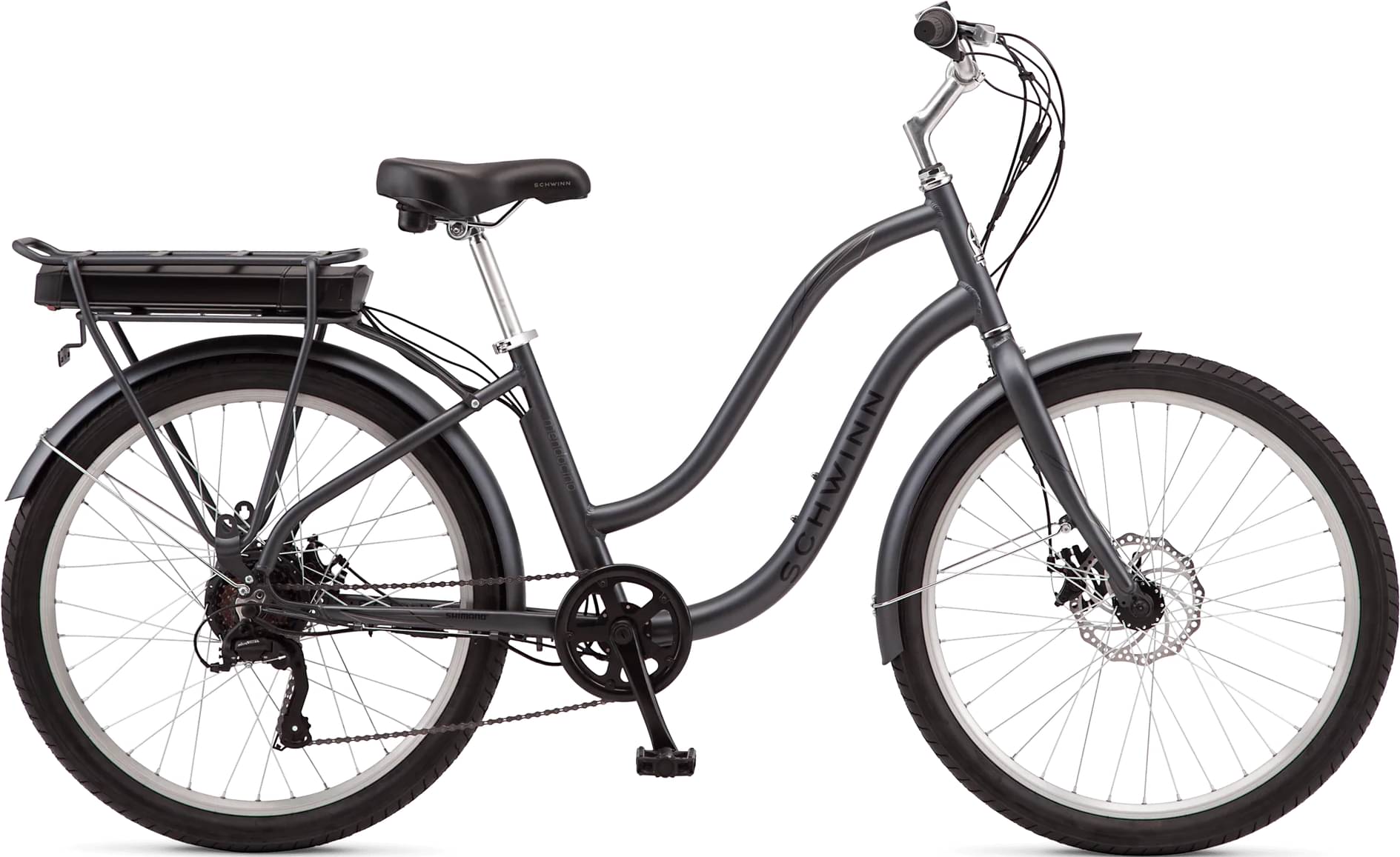

Schwinn Mendocino Step-Thru Electric Bike 2022
2022 E-bike
Estimate price |
1,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Groupset Tourney, Shimano -
Suspension Hardtail -
Motor hub-drive -
Battery 313 watt-hour rack mounted battery -
Drivetrain 1 × 6 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Hi-Ten steel, 26", Hi-Ten steel, 100 mm bolt-on, bolt-on
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano REVOSHIFT twist, 6-speed
Crank
3-piece, 42T
Bottom Bracket
Cartridge, square taper, 68mm
Chain
KMC
Pedals
Nylon
Wheels
Rear Hub
Aluminum, sealed-bearing, 10 mm x 135 mm QR, 36H, 6-bolt
Rims
Aluminum, double wall, 19 mm ID, 36H, non tubeless
Spokes
14G/13G, steel
Tires
26 in x 2.125 in, wire bead
Brakes
Brakes
Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Cockpit
Stem
Aluminum, threaded front load, 30° rise, 25.4 mm clamp
Handlebar
Cruiser, Hi-Ten steel, 635 mm width, 50 mm rise, 25.4 mm clamp
Grips
130 mm
Headset
Threaded, retainer bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Aluminum, 400 mm, 20 mm offset
Motor & Battery
Motor
250-watt hub drive motor

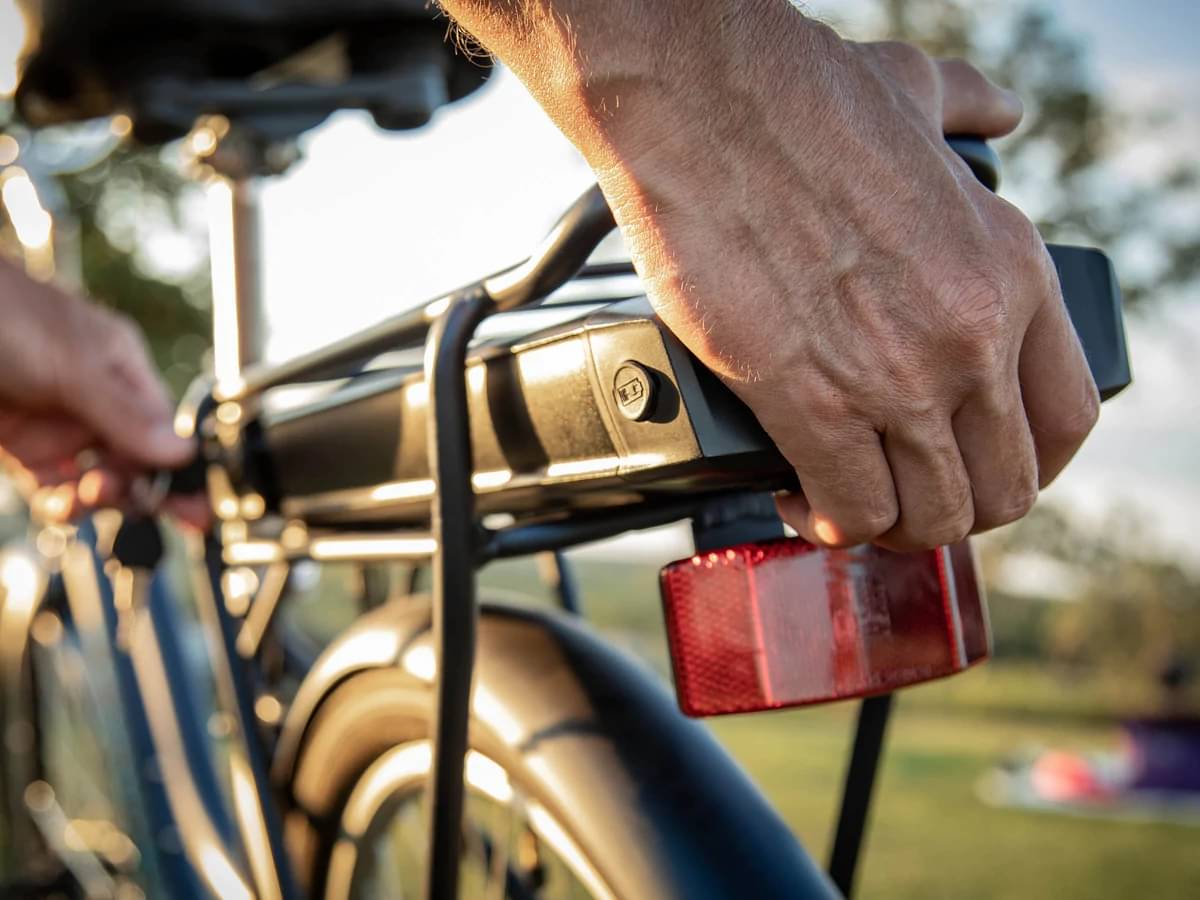

Battery
313 watt-hour rack mounted battery
Fit data
Geometry
Numbers for sizing and ride feel.
About this model
Mendocino Step-Thru Electric Bike is a Schwinn E Mendocino model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Schwinn Mendocino Step-Thru Electric Bike 2022 has a starting price of 1299$. Schwinn Mendocino 2 Step-Thru Electric Bike 2022 on the other hand is the most expensive at 1599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Comfort e-bikes average price
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1299$. If we compare this with the average Comfort e-bike cost we notice that the price is 50.65% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
The wheels on Mendocino Step-Thru Electric Bike are the 26″ aluminum type. These wheels give you great handling over your e-bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Schwinn Mendocino Step-Thru Electric Bike has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
