Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 26" / 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Zoom HL565, 26"/27.5", steel steerer, 9mm x 100mm QR, 80mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano Tourney, 31.8 mm clamp

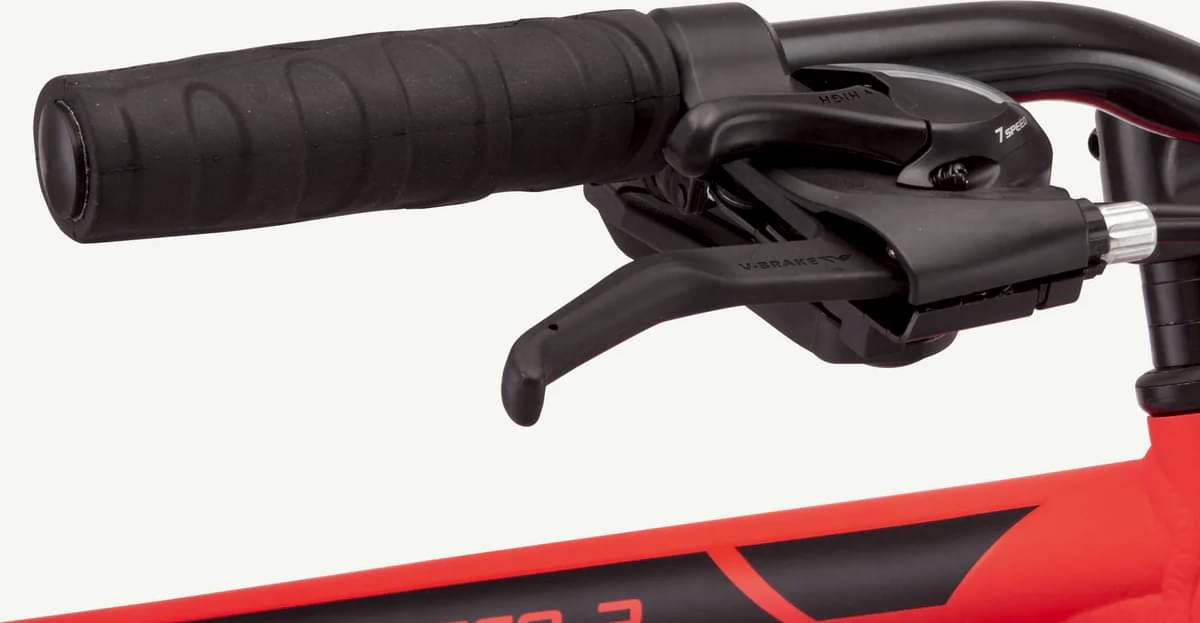

Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum mountain, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 26 in / 27.5 in x 2.1 in, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, 10° rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 20 mm rise, 25.4 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.44 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm |
| Front Center | 632 mm | 657 mm | 683 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 593.5 mm | 602.9 mm | 612.3 mm |
| Reach | 380.7 mm | 402.8 mm | 425 mm |
| Top Tube Length | 564 mm | 589 mm | 614 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1056 mm | 1081 mm | 1107 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm |
| Standover Height | 741 mm | 777 mm | 811 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

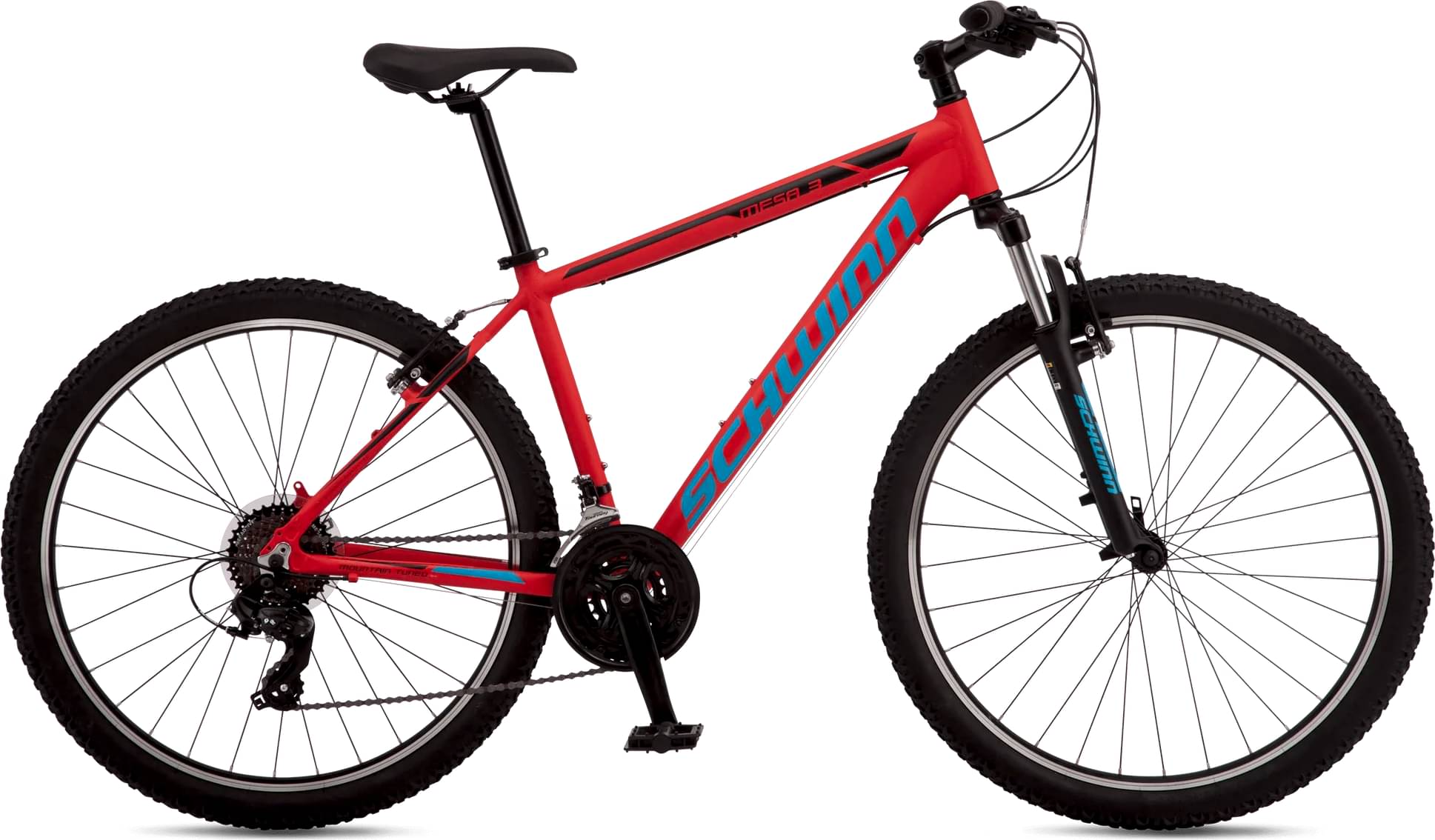

Model Overview
Mesa 3 completes the Schwinn Mesa model. 14 bikes variations carry this model name so far. You can easily view all of the Schwinn Mesa bikes models from 2023, here.
Model range prices
The most economical model, the Schwinn Mesa 3 2023 has a starting price of 579$. Schwinn Mesa 1 2023 on the other hand is the most expensive at 799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 579$. Comparing the average cost of a Crosscountry bike to this one, you will see that Mesa 3 price is 229.02% lower.
Overview of components

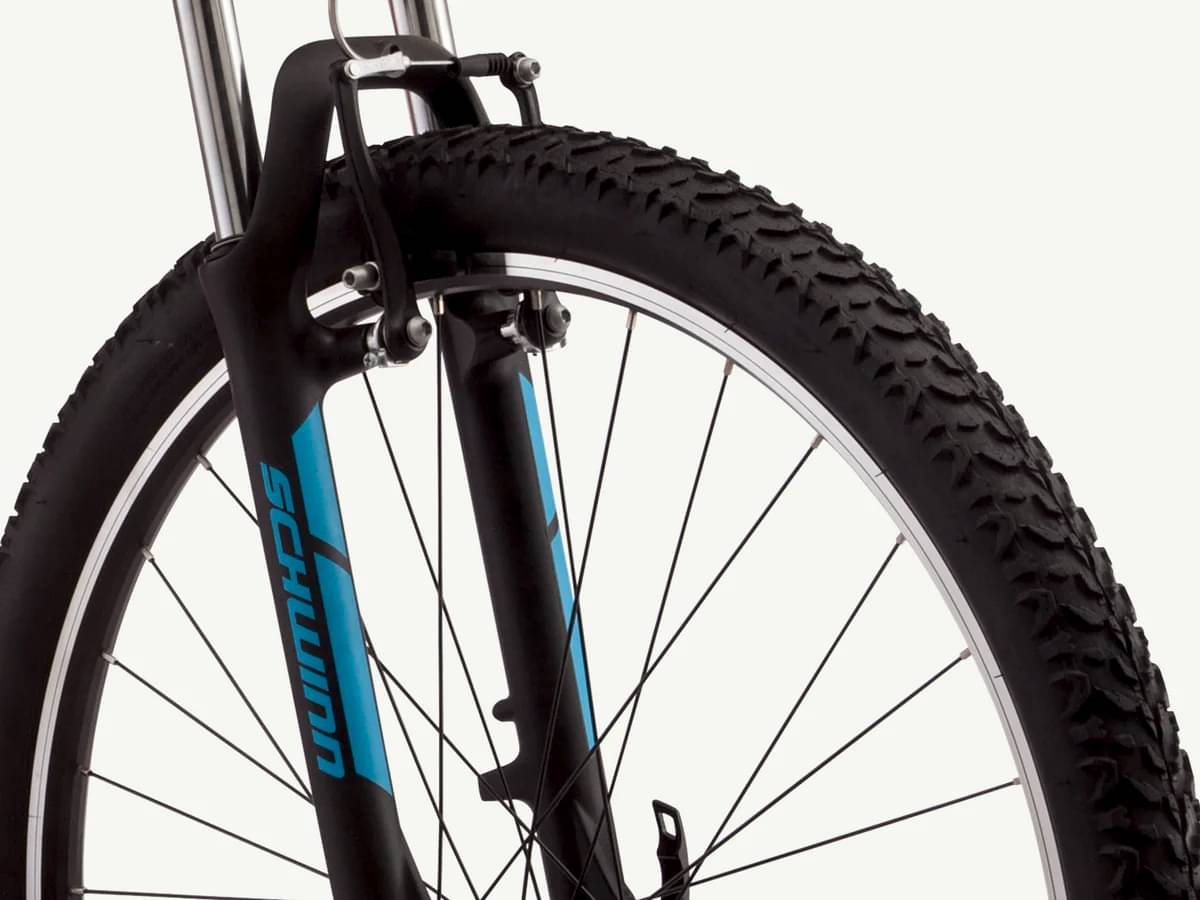

Fork
The Zoom is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Mesa 3 has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The Mesa 3 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.

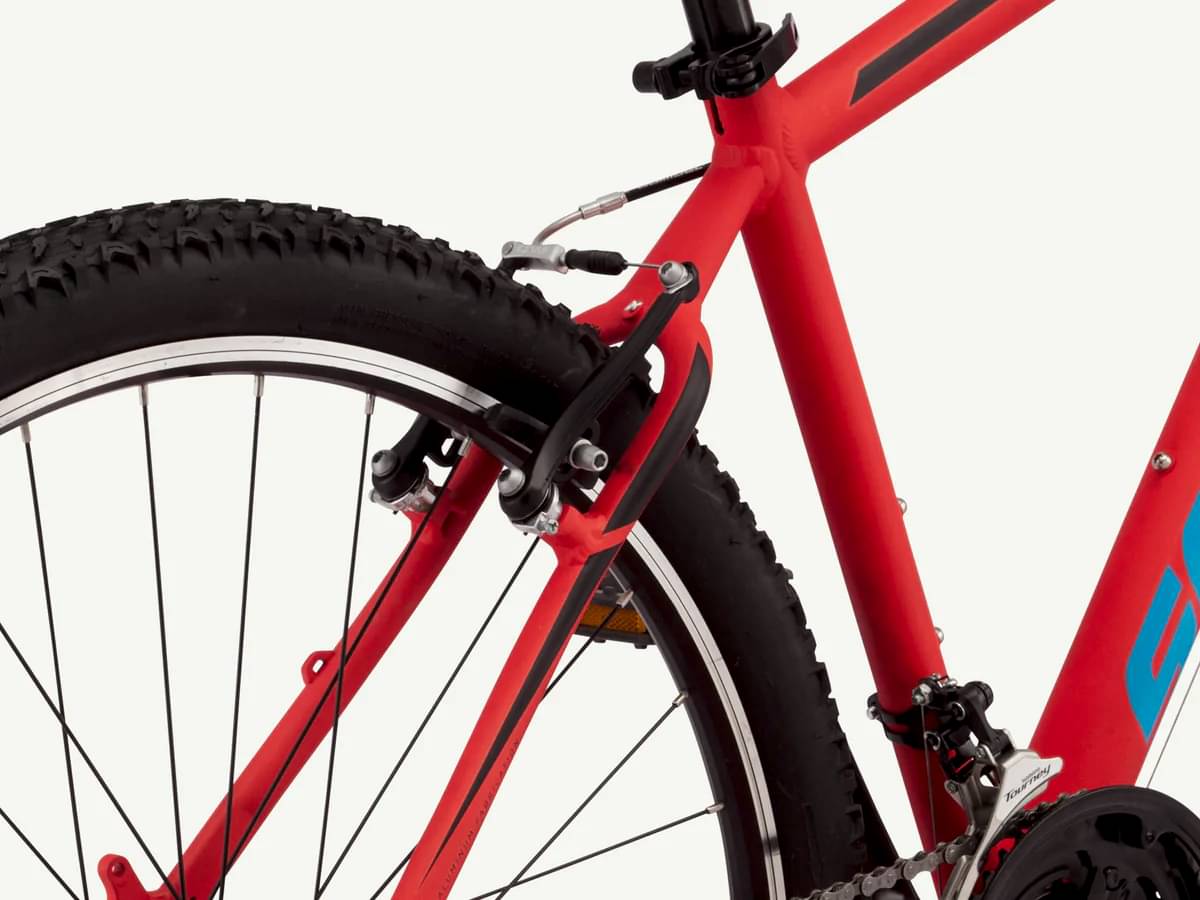

Brakes
Nothing is more important on a bike than its ability to brake properly. Schwinn Mesa 3 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Schwinn Mesa 3 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
