Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Zoom HL565, 27.5", steel steerer, 9mm x 100mm QR, 80mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano Tourney, 31.8 mm clamp
Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum mountain, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 27.5 in x 2.1 in, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, 10° rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 620 mm width, 20 mm rise, 25.4 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.67 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 609 mm | 609 mm |
| Rake | 40 mm | 40 mm |
| Trail | 87 mm | 107 mm |
| Stack | 595.9 mm | 614.7 mm |
| Reach | 354.7 mm | 368.7 mm |
| Top Tube Length | 539 mm | 559 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 431 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm |
| Wheelbase | 1034 mm | 1035 mm |
| Bottom Bracket Drop | 41 mm | 41 mm |
| Standover Height | 654 mm | 667 mm |
| Wheels | 27" | 27" |
About this model

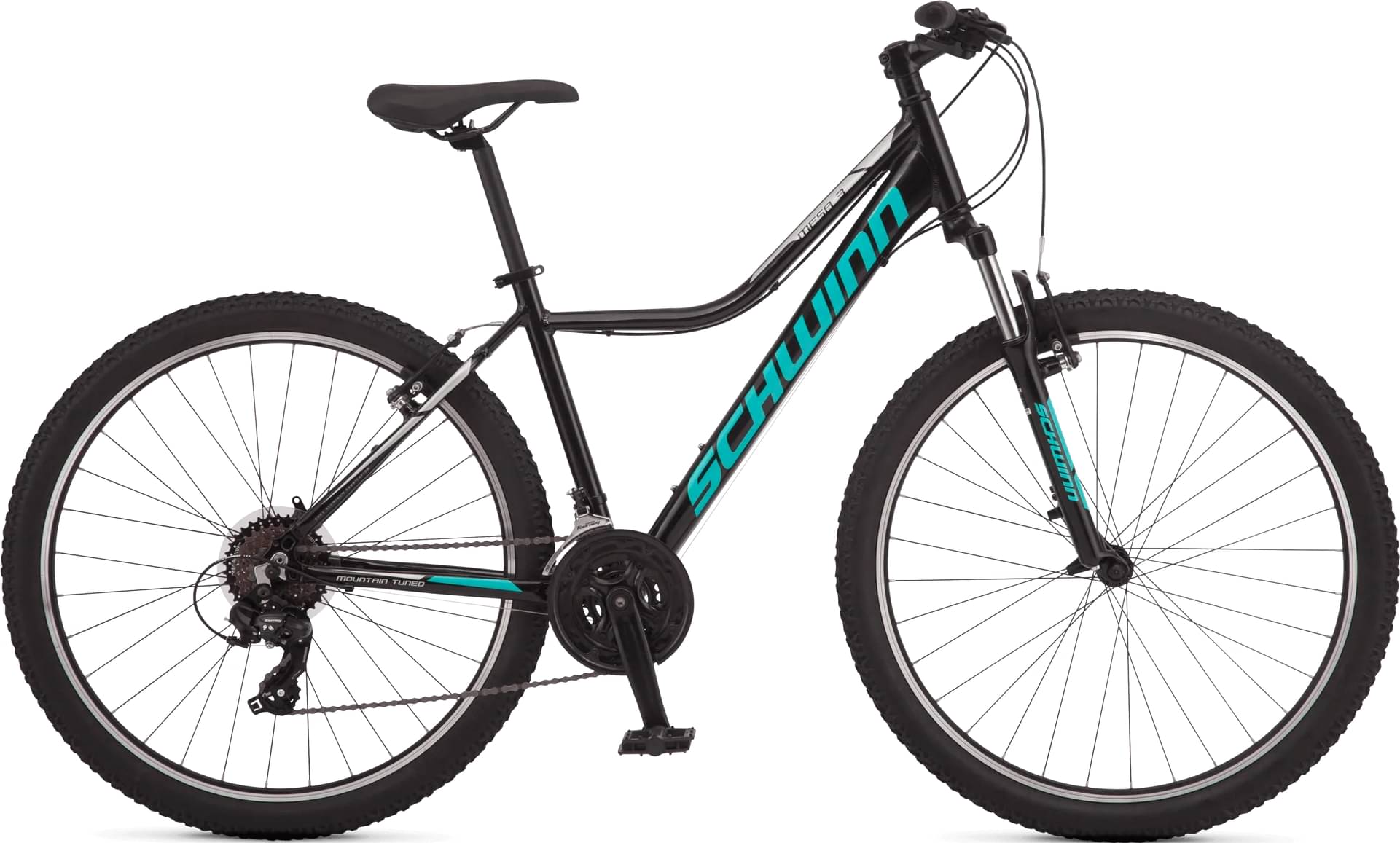

Mesa 3 Step-Thru is a Schwinn Mesa model. There are 14 bikes that carry this model name. Take a sneak peek at all Schwinn Mesa bikes models from 2022, by clicking here.
Model range prices
Schwinn Mesa 3 Step-Thru 2022 is the cheapest bike model and costs 579$. Schwinn Mesa 1 2022 is the most expensive one and costs 799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 579$. Comparing this to the average Crosscountry bike price, we see that the price is 229.02% smaller.
Mesa 3 Step-Thru components
Fork
This bike has the Zoom fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size

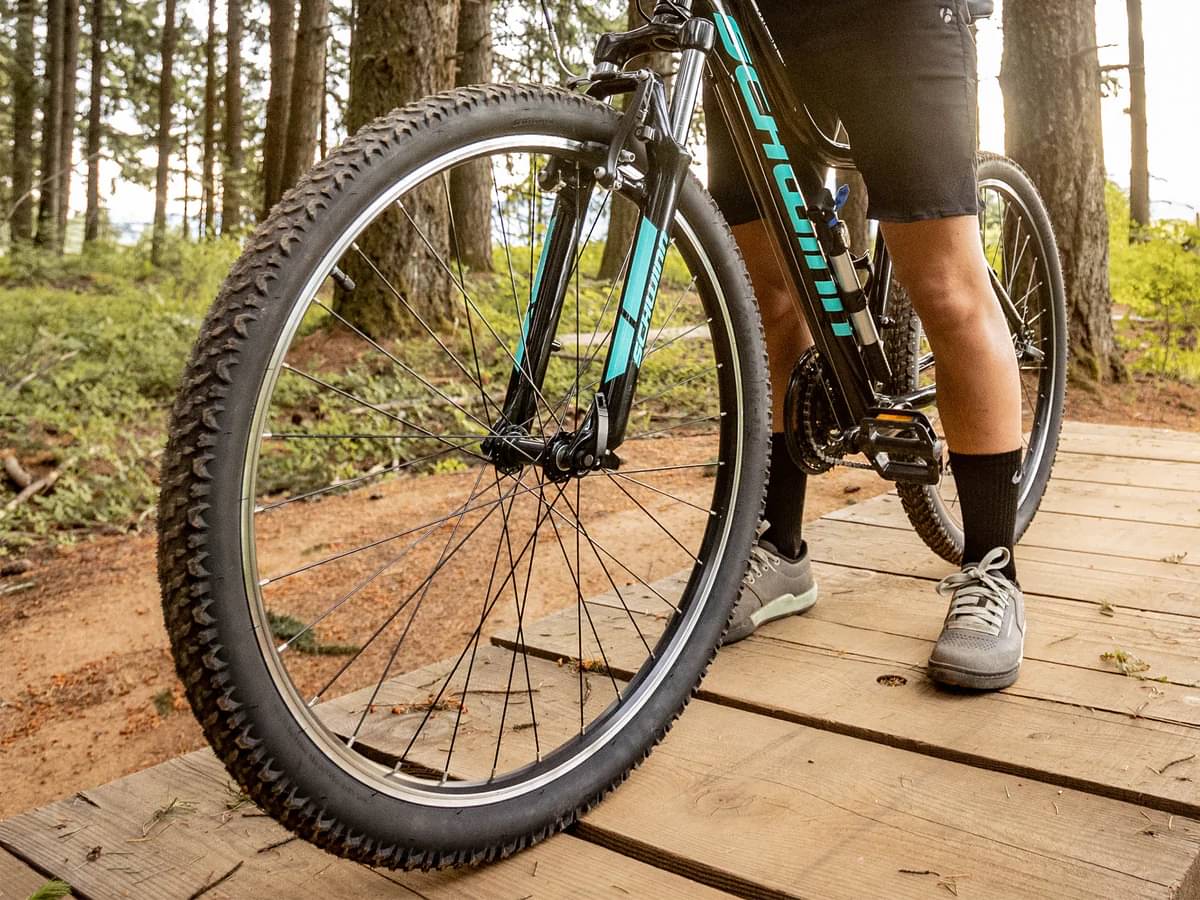

The Mesa 3 Step-Thru 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mesa 3 Step-Thru has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
