Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork Suntour X1
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 27.5" comfort tuned geometry, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
SR Suntour XCE 28 P, 27.5", steel steerer, 9 mm x 100 mm QR, 80 mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano FD-TY500, 31.8 mm clamp

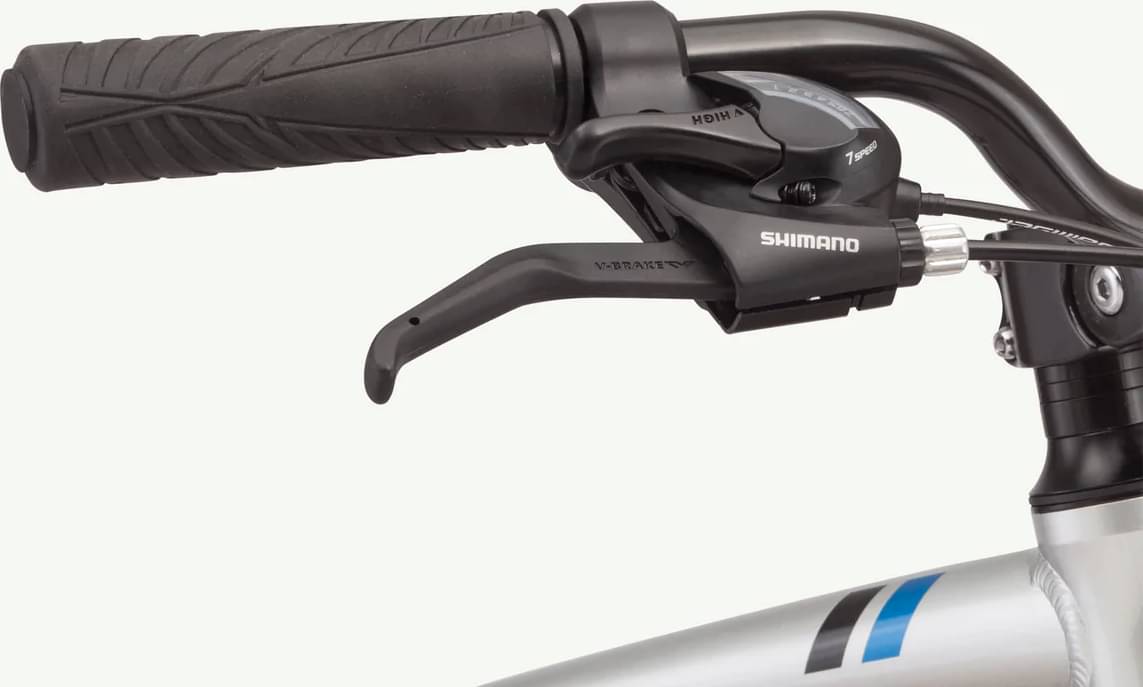

Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum, 48/38/28T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn comfort, nylon / Kraton
Wheels
Rear Hub
Schwinn sport, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
Stainless steel
Tires
Schwinn comfort, 27.5 in x 1.95 in, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, adjustable rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 620 mm width, 80 mm rise, 25.4 mm clamp
Grips
Schwinn ergo, dual density
Headset
Threadless, ZS44, semi-cartridge bearings
Seat
Saddle
Selle Royal Comfort, steel rails
Seatpost
Aluminum, 300 mm, 18 mm offset, suspension, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.73 mm | 1.75 mm | 1.82 mm |
| Front Center | 610 mm | 625 mm | 639 mm | 653 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 601.5 mm | 629.6 mm | 649.4 mm | 681.3 mm |
| Reach | 360 mm | 364.2 mm | 371.6 mm | 374.3 mm |
| Top Tube Length | 592 mm | 607 mm | 622 mm | 637 mm |
| Seat Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm | 205 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1061 mm | 1075 mm | 1090 mm | 1104 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 744 mm | 786 mm | 828 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sierra completes the Schwinn Sierra model. There are 6 bikes that carry this model name. Take a sneak peek at all Schwinn Sierra bikes models from 2022, by clicking here.
Model range prices
Schwinn Sierra Step-Thru 2022 is the cheapest bike model and costs 649$. Schwinn Sierra 2022 is the most expensive one and costs 649$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 649$. Doing a quick comparison, we notice that Sierra price is 15.48% higher than the average cost of a Hybrid bike.
Overview of components

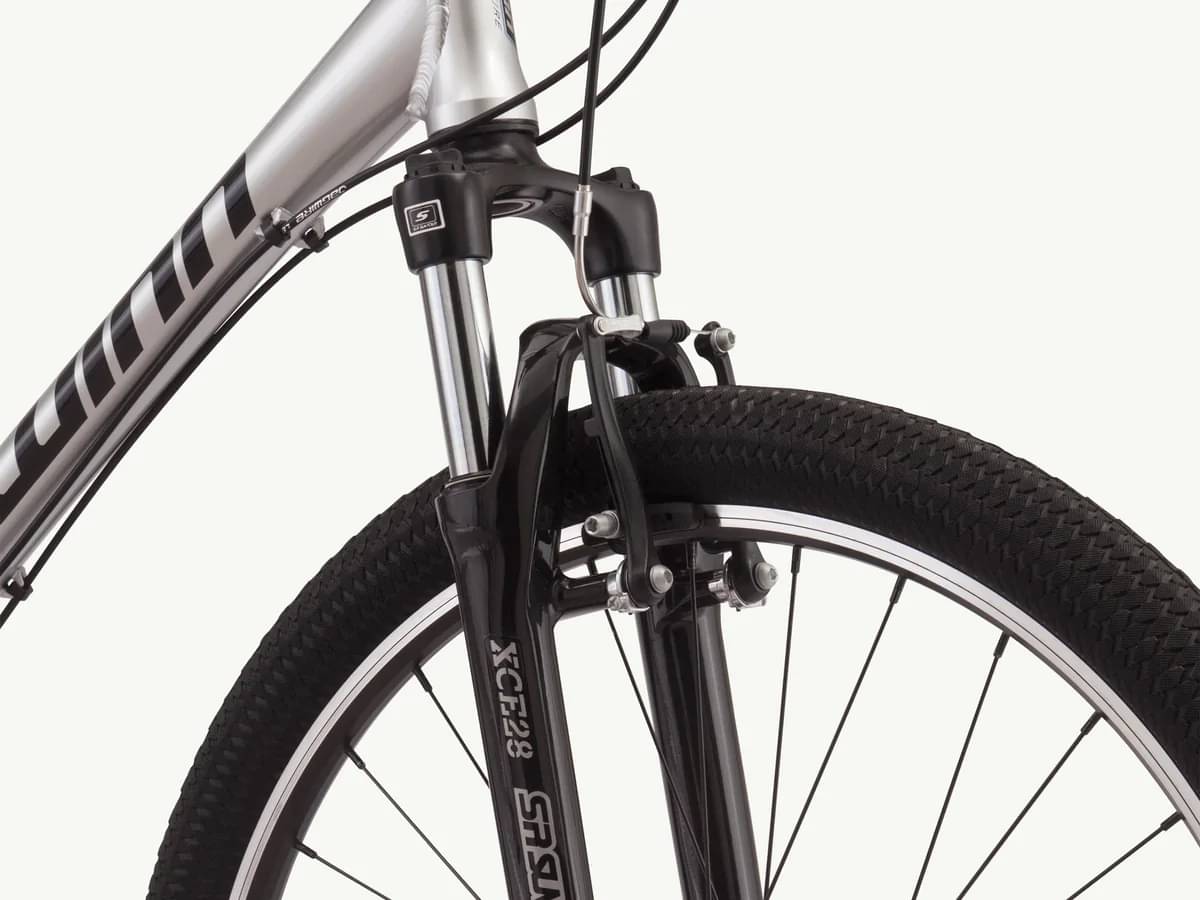

Fork
Schwinn Sierra 2022 bike is equipped with the Suntour X1 fork, and has 80mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
As for the wheels, Schwinn Sierra 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sierra has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
