Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork Suntour X1
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

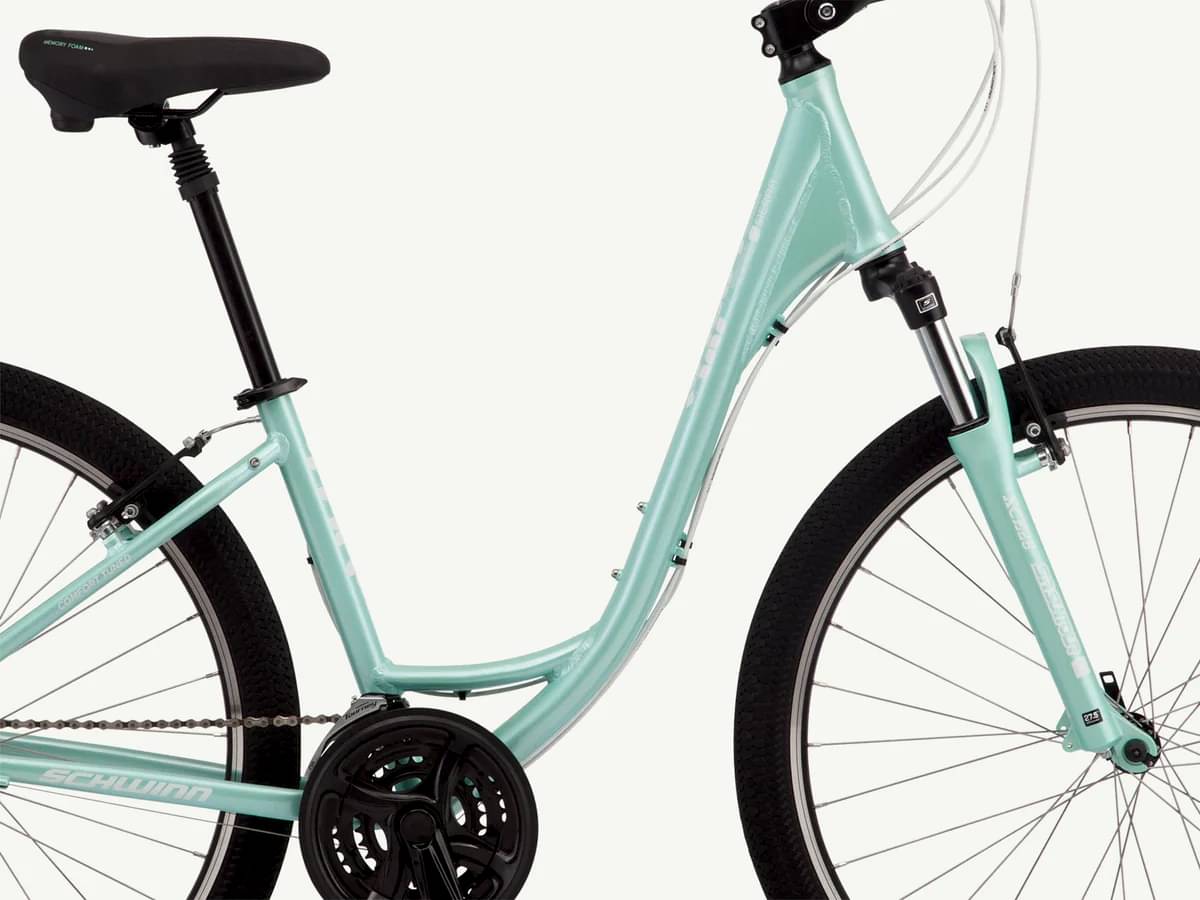

Frame
Frame
Aluminum, 27.5" comfort tuned geometry, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
SR Suntour XCE 28 P, 27.5", steel steerer, 9 mm x 100 mm QR, 80 mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano FD-TY500, 31.8 mm clamp

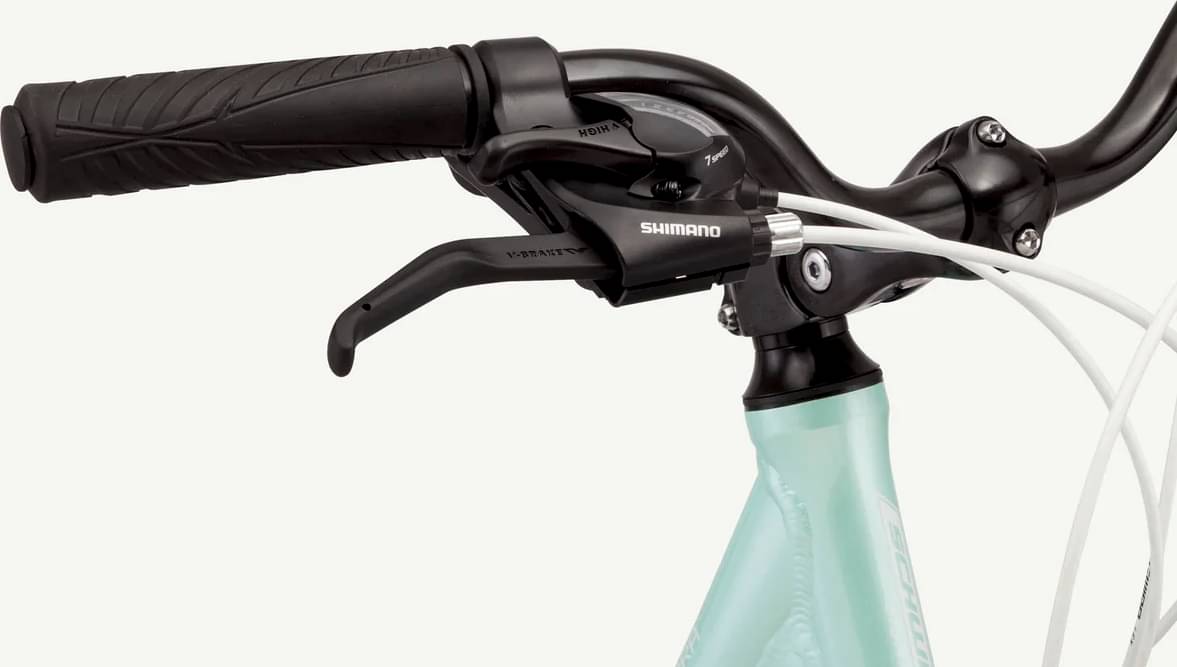

Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum, 48/38/28T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn comfort, nylon / Kraton
Wheels
Rear Hub
Schwinn sport, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
Stainless steel
Tires
Kenda Kiniption, 27.5 in x 2.3 in, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, adjustable rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 620 mm width, 80 mm rise, 25.4 mm clamp
Grips
Schwinn ergo, dual density
Headset
Threadless, ZS44, semi-cartridge bearings
Seat

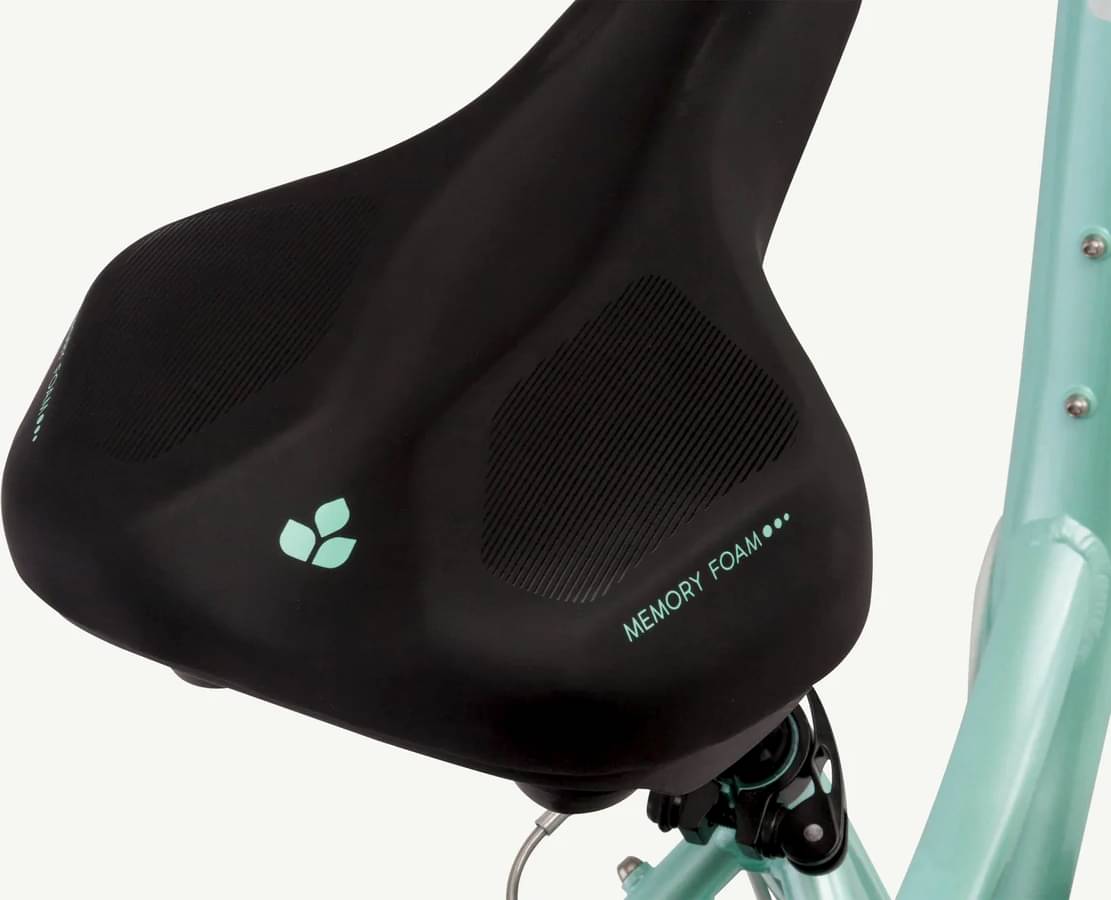

Saddle
Selle Royal Comfort, steel rails
Seatpost
Aluminum, 300 mm, 18 mm offset, suspension, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.87 mm | 1.86 mm | 1.85 mm |
| Front Center | 604 mm | 614 mm | 624 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 643 mm | 652.4 mm | 661.9 mm |
| Reach | 344.5 mm | 350.9 mm | 357.3 mm |
| Top Tube Length | 591 mm | 601 mm | 611 mm |
| Seat Tube Angle | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 350 mm | 405 mm | 460 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1059 mm | 1069 mm | 1079 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 508 mm | 511 mm | 514 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Sierra Step-Thru is part of the Schwinn Sierra model. 6 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Schwinn Sierra Step-Thru 2023 is the most affordable bike of this model and has a price of 649$. On the other hand, Schwinn Sierra 2023, is the most expensive and costs 649$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 649$. In conclusion, this bike price is 15.48% more expensive than the price of the average Hybrid bike.
Overview of components
Fork

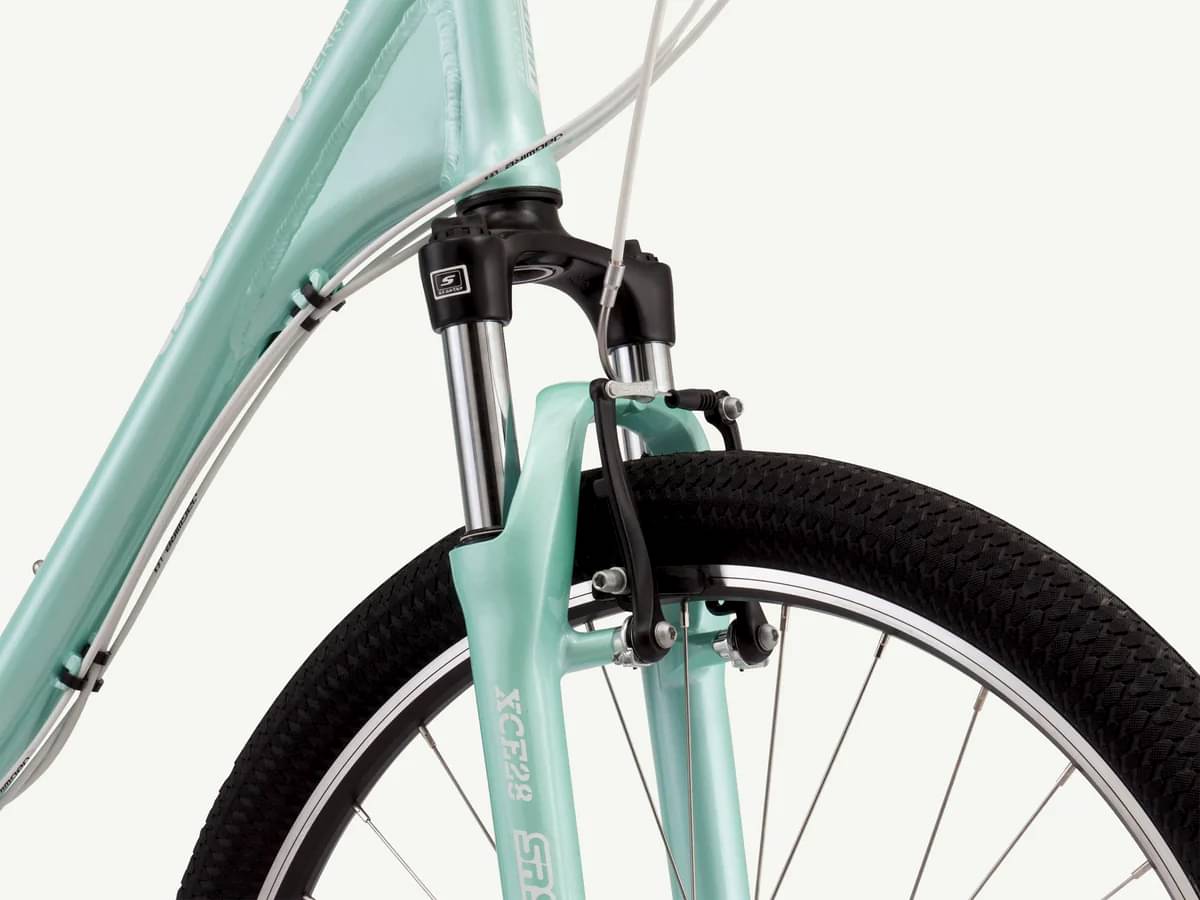

The Suntour X1 is included from the factory. It has a travel distance of 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
When leaving the production line, the Sierra Step-Thru model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
Sierra Step-Thru comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
