Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

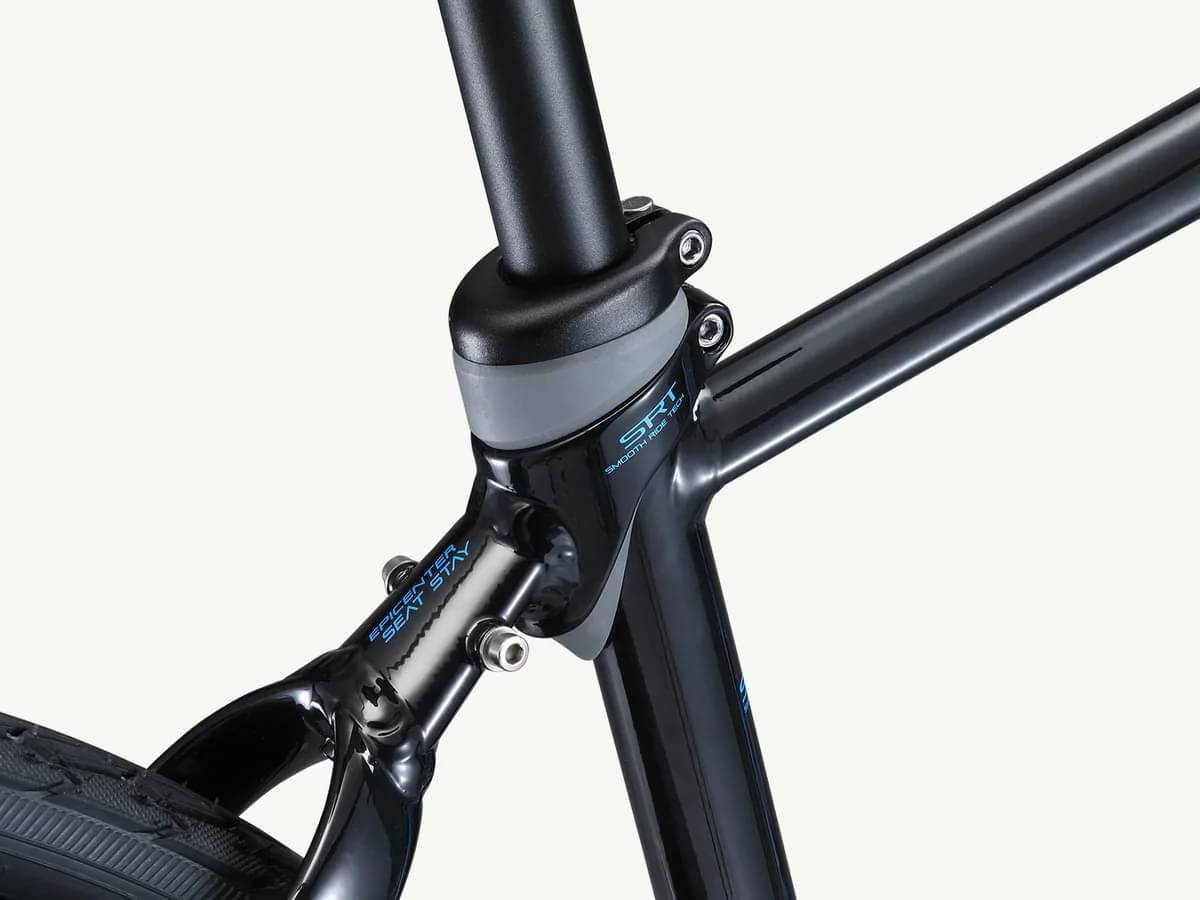

Frame
Frame
Aluminum, 20", suspension, hybrid
Suspension Fork
Schwinn, chromoly, rigid
Drivetrain

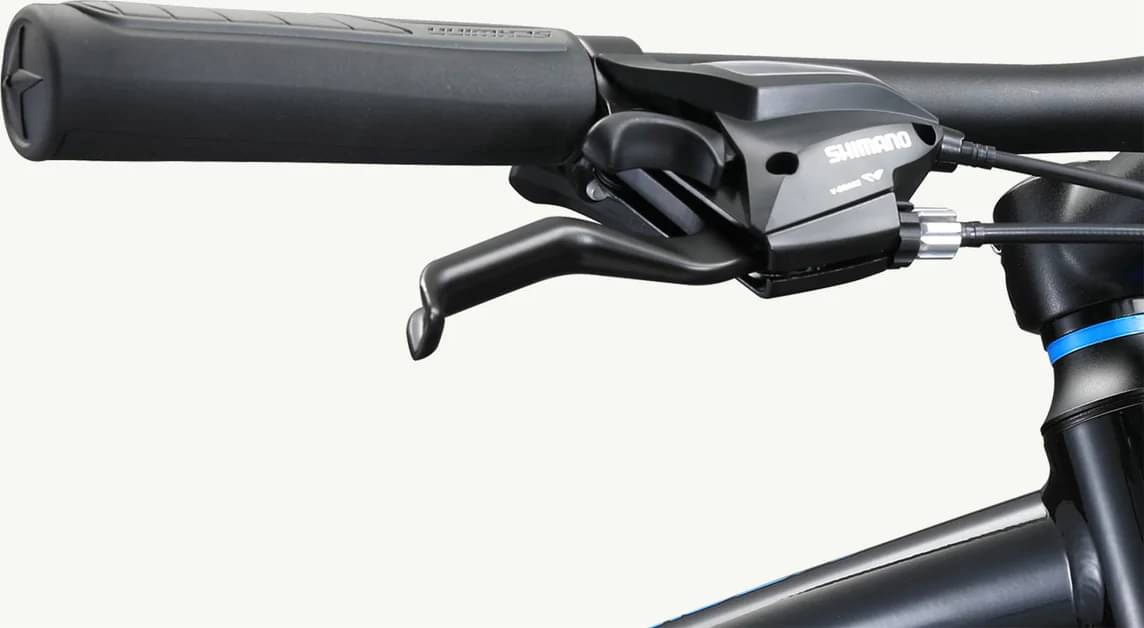

Shift Levers
Trigger shifter
Pedals
Resin platform
Wheels
Rims
Alex DC-26, alloy
Tires
700c or 28 in.
Brakes
Brakes
Front Brake - Radius BR-CX7 mechanical disc aluminum 160 mm rotor Rear Brake - Radius BR-CX7 mechanical disc aluminum 160 mm rotor
Cockpit
Stem
Schwinn aluminum threadless 10° rise 25.4 mm clamp
Seat
Saddle
Schwinn sport steel rails
Seatpost
Aluminum 350 mm 25 mm offset 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 595 mm | 616 mm | 621 mm | 625 mm | 640 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 526 mm | 546 mm | 565 mm | 576 mm | 596 mm |
| Seat Tube Angle | 72.8 ° | 73.3 ° | 72.6 ° | 72.3 ° | 72 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.6 ° | 70.6 ° | 71.3 ° | 71.3 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 205 mm | 235 mm |
| Chainstay Length | 426 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1012 mm | 1038 mm | 1044 mm | 1049 mm | 1064 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 65 mm | 61 mm | 61 mm |
| Standover Height | 741 mm | 746 mm | 769 mm | 800 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

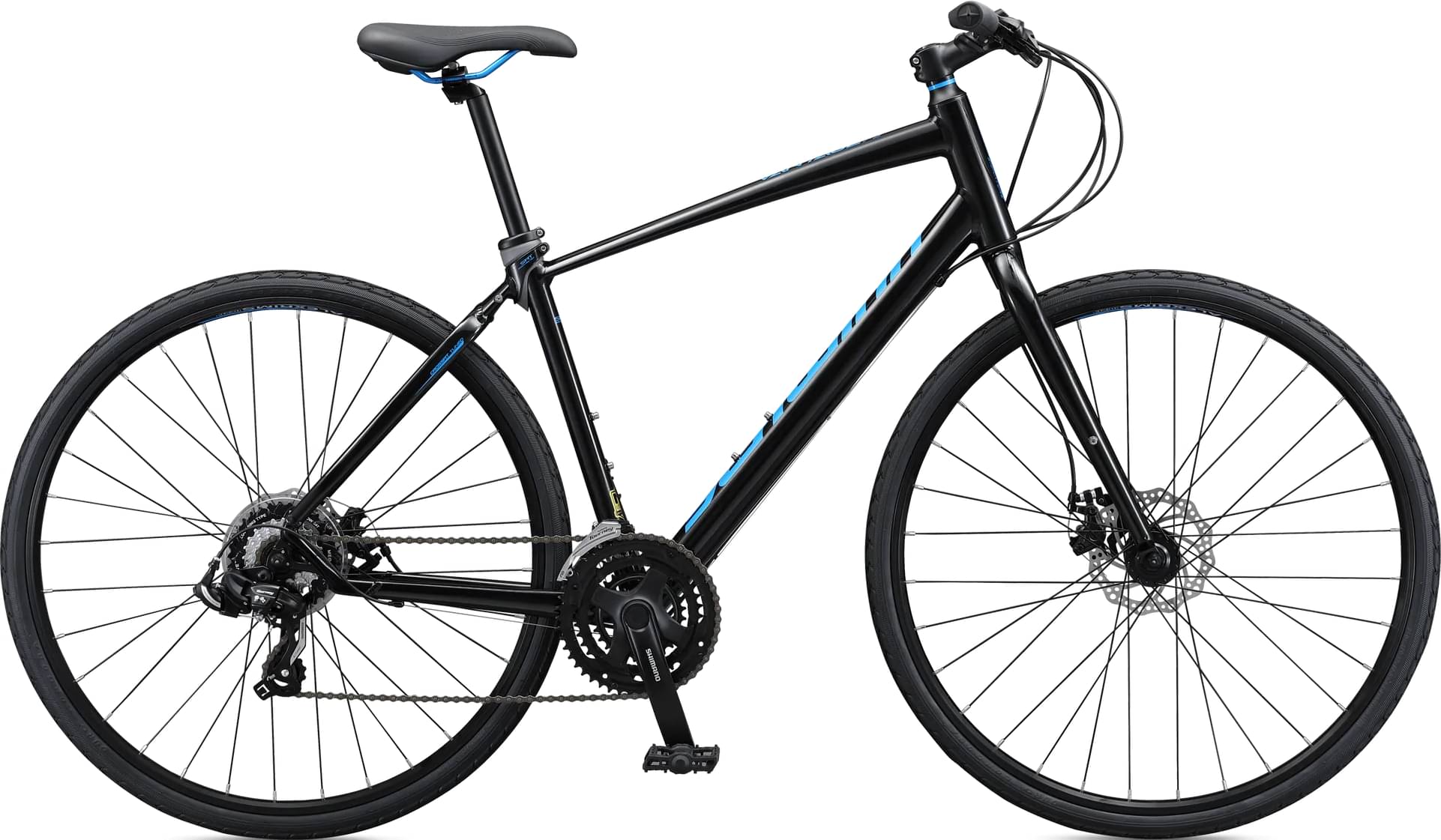

Model Overview
Vantage F3 belongs to the Schwinn Vantage model. Schwinn launched 9 bikes of this model so far. You can easily view all of the Schwinn Vantage bikes models from 2022, here.
Model range prices
Schwinn Vantage F3 2022 is the most economical model, with a starting price of 769$. Schwinn Vantage F2 700c 2022 on the other hand costs 939$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 769$. If we compare this with the average Fitness bike cost we notice that the price is 17.23% higher.
Overview of components

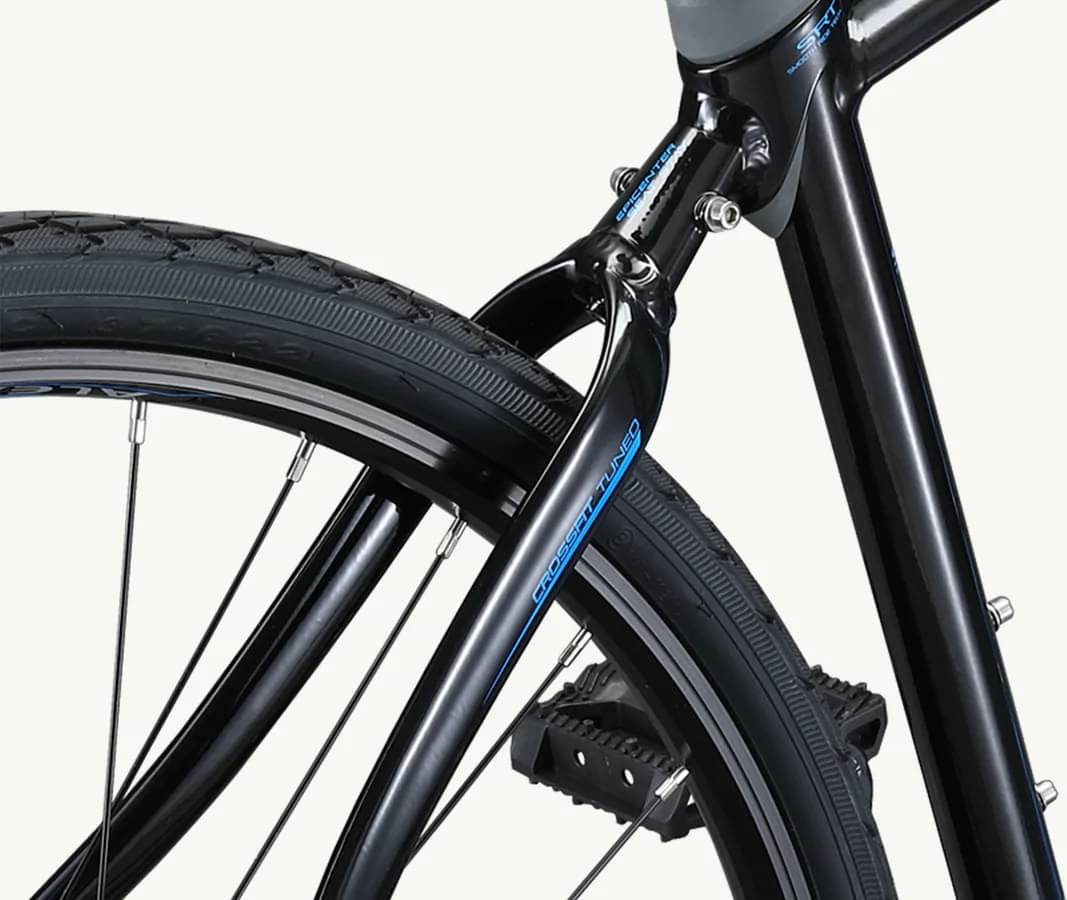

Fork material
Vantage F3 has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.

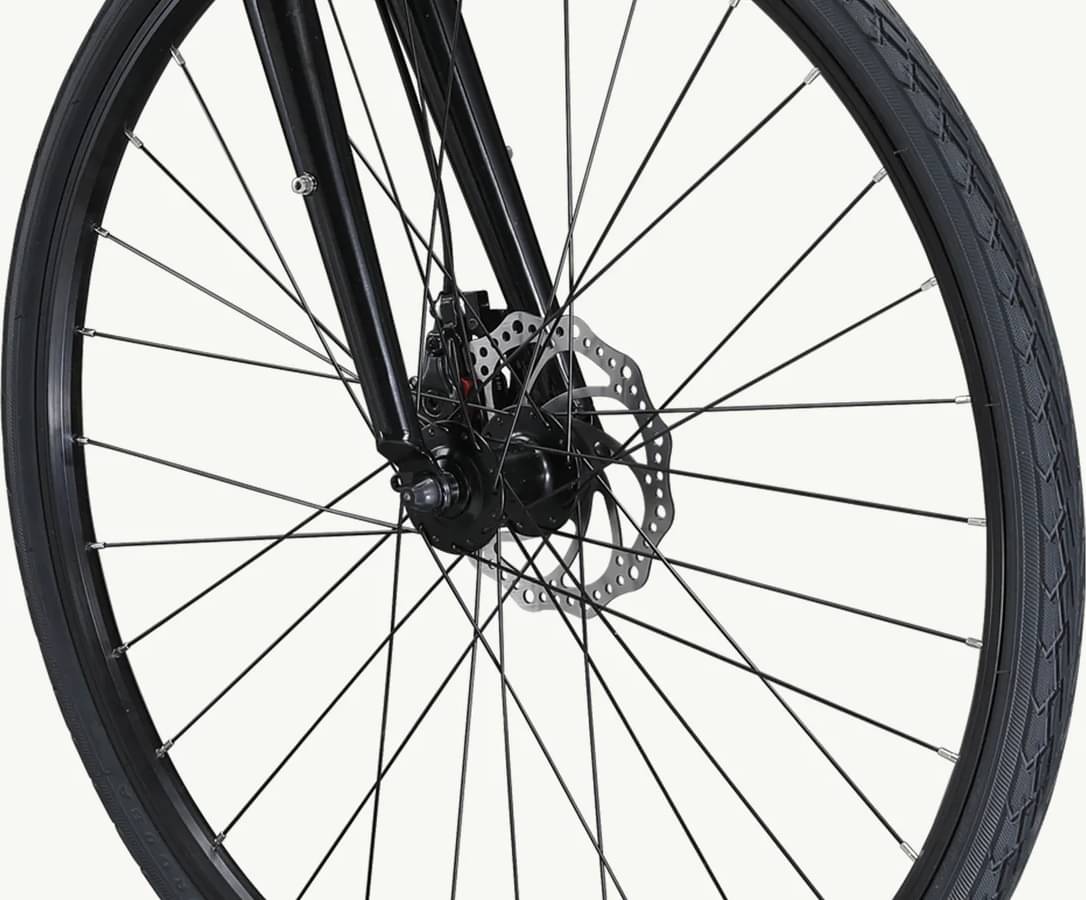

Wheels
When leaving the production line, the Vantage F3 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Schwinn Vantage F3 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
