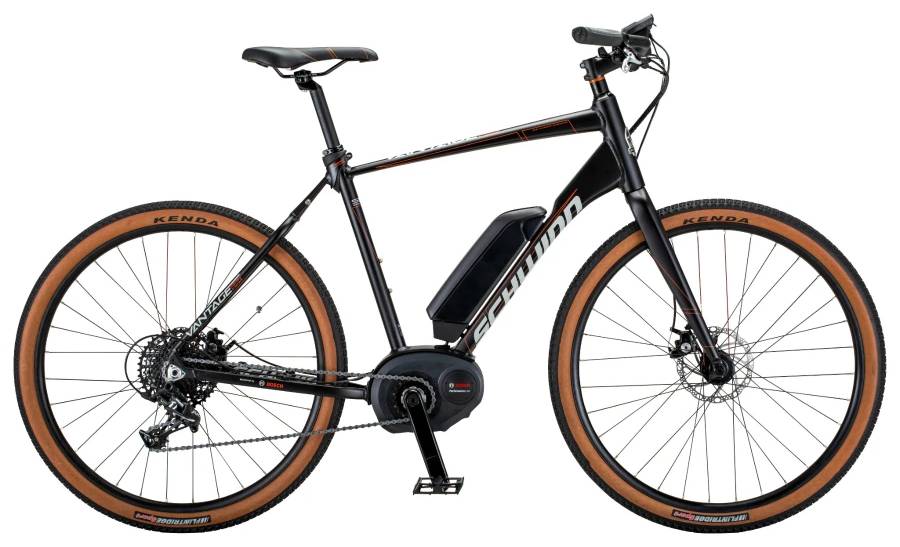

Schwinn Vantage Fxe 2020
2020 E-bike
Estimate price |
3,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Apex, SRAM -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 700c adventure geometry, flat mount disc, S.R.T. (Smooth Ride Technology) Elastomer, 12 mm x 148 mm dropout, replaceable hanger, integrated headset
Suspension Fork
700c, aluminum steerer, 15 mm x 100 mm Thru Axle, thru axle
Drivetrain
Rear Derailleur
SRAM APEX
Shift Levers
SRAM S700 Tigger, 11
Crank
FSA
Chain
KMC X11-1 EPT
Pedals
Aluminum
Wheels
Front Hub
Formula DC711, aluminum, sealed-bearing, 15 mm x 110 mm thru axle, 32H, 6-bolt
Rear Hub
Formula, aluminum, sealed-bearing, 12 mm x 142 mm, 32H, 6-bolt
Rims
Aluminum, double wall, 35 mm ID, 32H, tubeless ready
Spokes
Double-butted, stainless steel
Tires
Kenda, 650c x 47c, wire bead
Brakes
Brakes
TRP, mechanical disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless front load, 10° rise, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 660 mm width, 20 mm rise, 31.8 mm clamp
Grips
Schwinn, lock-on
Headset
Threadless sealed, sealed bearing
Seat
Saddle
Schwinn, steel rails
Seatpost
Aluminum, 300 mm, 20 mm offset, 27.2 mm
Motor & Battery
Motor
Bosch Performance Line Cruise 250w motor gets you where you need to be in comfort
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Front Center | 578 mm | 284 mm | 613 mm | 639 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 507 mm | 537 mm | 567 mm | 592 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 175 mm | 190 mm | 210 mm |
| Chainstay Length | 474 mm | 774 mm | 474 mm | 474 mm |
| Wheelbase | 1046 mm | 1051 mm | 1081 mm | 1107 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 702 mm | 737 mm | 777 mm | 797 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Vantage Fxe belongs to the Schwinn E Vantage model. There are 3 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Schwinn Vantage Fxe 2020 is the most economical model, with a starting price of 3499$. Schwinn Vantage RXe 2020 on the other hand costs 3999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3499$. Comparing this to the average Hybrid e-bike price, we see that the price is 41.09% higher.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Schwinn Vantage Fxe 2020, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vantage Fxe has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Vantage Fxe comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
