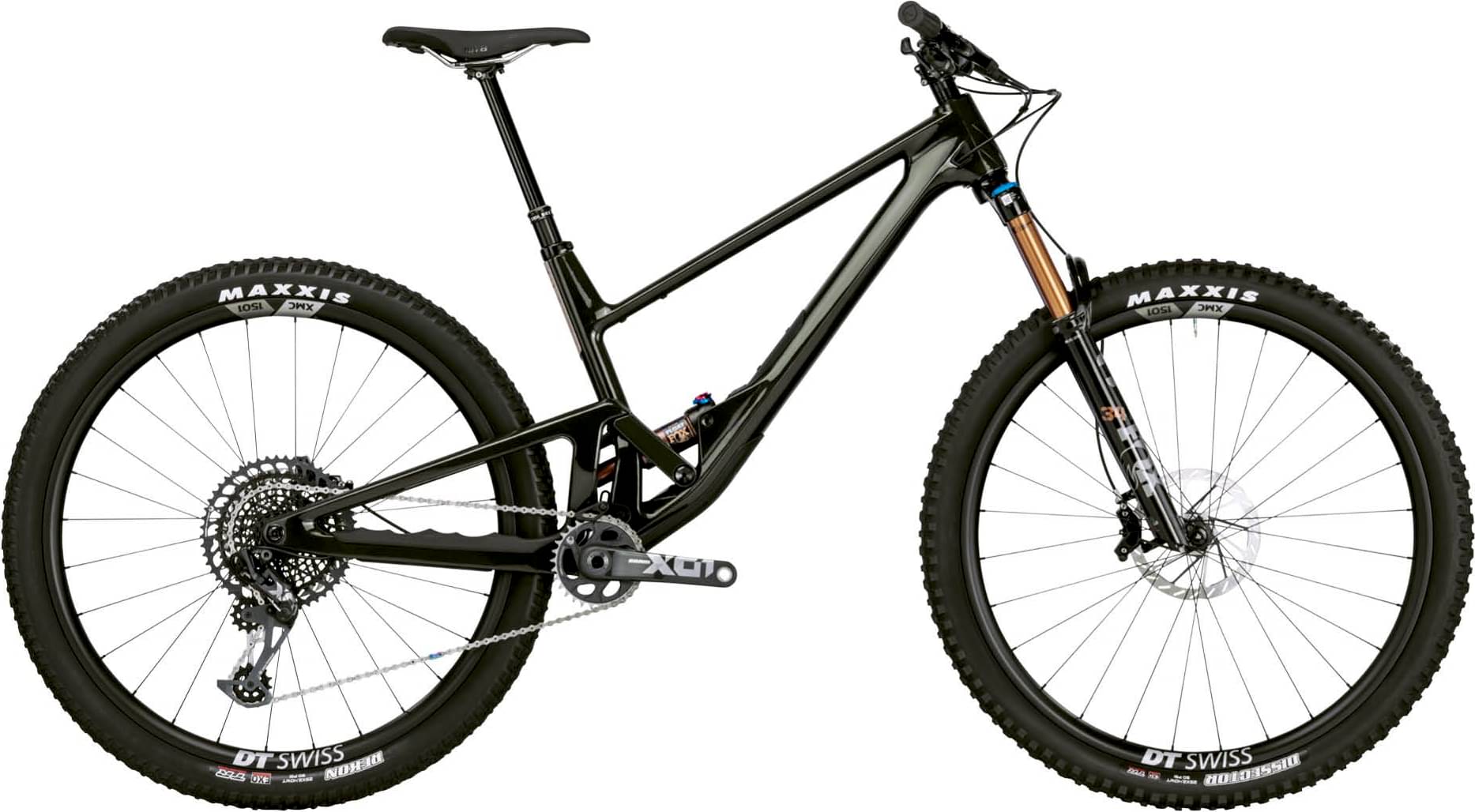

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, X0 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
MD/LG
175cm - 185cm
LG
180cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 2030 full carbon frame | Lower-Link Driven Instant Center Linkage | 120 / 130mm rear wheel travel | Fully guided internal cable routing | Internal frame storage | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide
Suspension Fork
Fox 34 Factory GRIP2 | 140mm travel | 44mm rake
Rear Shock
Fox Float Factory | 185x47.5mm Trunnion
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X0 Eagle Trigger
Cassette
SRAM X01 Eagle (XG-1295) | 10-52T
Crank
SRAM X01 Eagle Carbon Lunar | 170mm length | 30T chainring | DUB interface
Chain
SRAM X01 Eagle
Wheels
Rims
DT Swiss XRC 1501 wheelset | 30mm internal width | Tubeless ready
Tires
Maxxis Dissector 29 x 2.4" 3C MaxxTerra EXO TR (F) | Maxxis Rekon 29 x 2.4" 3C MaxxTerra EXO TR (R)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Burgtec Enduro MK3 | 31.8mm bar bore | 35mm length | 0° angle
Handlebar
SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 7.5° backsweep
Grips
Burgtec Bartender Pro
Seat
Saddle
WTB Silverado Medium Titanium
Seatpost
Bikeyoke Divine | S 125mm | M 160mm | M/L, L, XL 185mm travel | Triggy Alpha lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.335 mm | 1.294 mm | 1.26 mm | 1.232 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 750 mm | 776 mm | 800 mm | 824 mm | 849 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 129 mm | 132 mm | 140 mm | 146 mm |
| Stack | 600 mm | 610 mm | 617 mm | 626 mm | 637 mm |
| Reach | 435 mm | 457 mm | 477 mm | 497 mm | 517 mm |
| Top Tube Length | 578 mm | 606 mm | 627 mm | 650 | 672 mm |
| Seat Tube Angle | 77.7 ° | 77.6 ° | 77.7 ° | 77.8 ° | 77.9 ° |
| Seat Tube Length | 400 mm | 420 mm | 430 mm | 440 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 89 mm | 100 mm | 108 mm | 118 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 432 mm | 434 mm |
| Wheelbase | 1187 mm | 1207 mm | 1227 mm | 1247 mm | 1267 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 180 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 185 cm | 190 cm | 200 cm |
Model Overview
2030 X01 belongs to the Scor 2030 model. There are 3 bikes that carry this model name. You can easily view all of the Scor 2030 bikes models from 2024, here.
Model range prices
SCOR 2030 NX 2024 is the most affordable bike of this model and has a price of 5199$. On the other hand, SCOR 2030 X01 2024, is the most expensive and costs 9299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9299$. Comparing the average cost of a Trail bike to this one, you will see that 2030 X01 price is 236.68% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float Factory | 185×47.5mm Trunnion rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the 2030 X01 model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
SCOR 2030 X01 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
