Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 full carbon frame, Lower-Link Driven Instant Center Linkage, 140mm rear wheel travel, Fully guided internal cable routing, Stash box, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 mount / Chainguide
Suspension Fork
RockShox Pike Ultimate RC2, 150mm travel, Charger RC2 damper, DebonAir air spring, Low & high speed compression adjust, Low & high speed rebound adjust, 44mm rake
Rear Shock
RockShox Super Deluxe Ultimate, RCT damper, Compression adjust (open mode), Rebound adjust, Open / pedal / lock lever, Trunnion mount
Drivetrain
Rear Derailleur
SRAM GX Eagle Lunar
Shift Levers
SRAM GX Eagle Trigger
Cassette
SRAM GX Eagle (XG-1275), 10-52T
Crank
SRAM GX Eagle Carbon Lunar, 170mm length, 32T chainring, DUB interface
Chain
SRAM GX Eagle
Wheels
Front Hub
DT Swiss 350, Ratchet SL freehub, Straightpull spoke interface, Boost Spacing
Rear Hub
DT Swiss 350, Ratchet SL freehub, Straightpull spoke interface, Boost Spacing
Rims
DT Swiss XM 1700 Spline, 30mm internal width, Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Terra (F) / 3C Maxx Terra (R), Casing: EXO (F) / EXO+ (R), Tubeless ready
Brakes
Brakes
SRAM Code RSC, Centerline rotors; 200mm
Cockpit
Stem
Burgtec Enduro MK3, 3D forged and fully CNC machined, 31.6mm bar bore, 35mm lenght, 0° angle
Handlebar
SCOR Carbon Bar, 31.8mm clamp, 800mm wide, 20mm rise, 5° up sweep - 7.5° back sweep
Seat
Saddle
Fizik Terra Alpaca
Seatpost
Bikeyoke Divine, S 125mm, M/L 160mm, XL 185mm travel, Triggy Alpha lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.325 mm | 1.289 mm | 1.233 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 752 mm | 777 mm | 802 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 119 mm | 125 mm | 130 mm |
| Stack | 599 mm | 611 mm | 625 mm | 636 mm |
| Reach | 436 mm | 461 mm | 485 mm | 516 mm |
| Top Tube Length | 561 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1185 mm | 1210 mm | 1235 mm | 1265 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
Model Overview

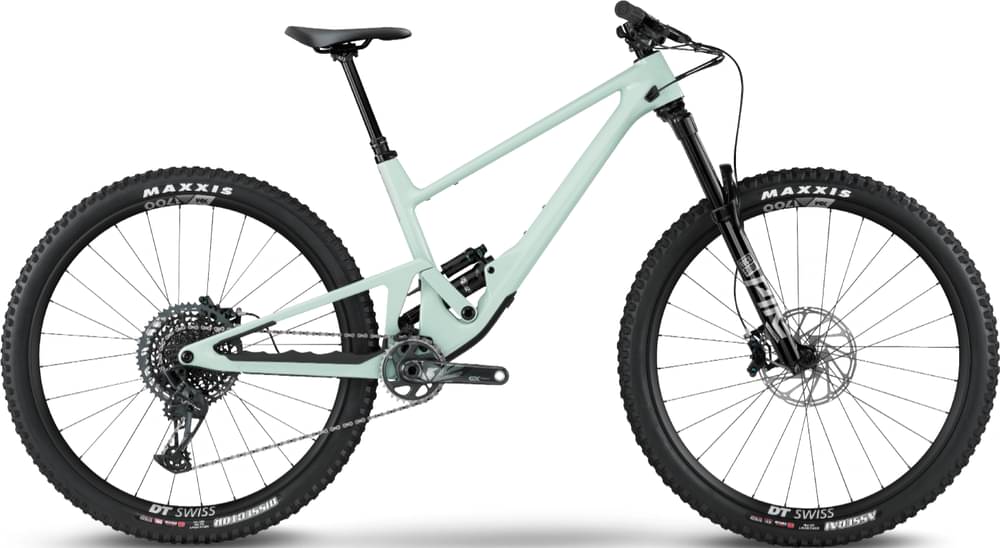

4060 ST GX is a Scor 4060 model. SCOR released 18 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
SCOR 4060 LT NX 2022 is the most economical model, with a starting price of 4499$. SCOR 4060 ST GX 2022 on the other hand costs 6599$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When SCOR released this model in 2022, its price was 6599$. If we compare this with the average Trail bike cost we notice that the price is 138.92% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
SCOR 4060 ST GX bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The 4060 ST GX 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. SCOR 4060 ST GX is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
SCOR 4060 ST GX bike has 4 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
SCOR 4060 ST GX comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
