Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Addict MF Carbon technology Endurance geometry / Replaceable Dropout
Suspension Fork
Addict MF 1 1/8" - 1 1/4" Carbon steerer Alloy Dropout
Drivetrain
Rear Derailleur
Shimano 105 Black RD-5800-GS 22 Speed
Front Derailleur
Shimano 105 FD-5801 Black
Shift Levers
Shimano 105 Black ST-5800 Dual control 22 Speed
Cassette
Shimano 105 CS-5800 11 Speed 11-32
Crank
Shimano FC-5800 Compact Hyperdrive 50x34 T Black
Bottom Bracket
Shimano BB-RS500-PB
Chain
Shimano CN-HG601-11
Wheels
Rims
Syncros RP2.0 18 Front / 24 Rear
Tires
Schwalbe Durano Fold 700x28C
Brakes
Brakes
Shimano 105 BR-5800 Super SLR Dual pivot
Cockpit
Stem
Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Creston 2.0 Compact Alloy 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros FL2.0
Seatpost
Syncros Carbon RR1.2 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm |
| Front Center | 573 mm | 579 mm | 581 mm | 586 mm | 591 mm | 598 mm | 612 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 45 mm |
| Trail | 78 mm | 74 mm | 68 mm | 65 mm | 62 mm | 60 mm | 55 mm |
| Stack | 518.7 mm | 529.9 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 615.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 975 mm | 981 mm | 983 mm | 988 mm | 993 mm | 1001 mm | 1014 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 743 mm | 769 mm | 789 mm | 809 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model

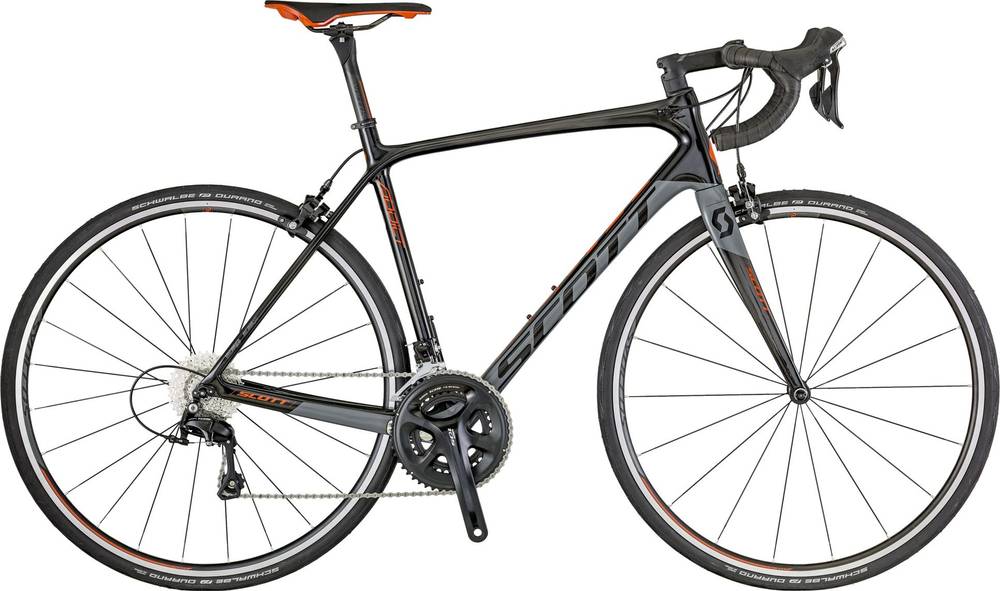

Addict 20 is a Scott Addict model. Scott released 134 bikes variations of this model so far. You can easily view all of the Scott Addict bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 7.85 kg (17.31 lbs), the Addict 20 model is slightly lighter than average. In other words, this model is 4.46% lighter than the average Endurance bike.
Addict 20 components
Fork material
Addict 20 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Addict 20 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Addict 20 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
