Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Addict Disc HMF / IMP Carbon technology Road Race geometry / Replaceable Dropout
Suspension Fork
Addict HMF Flatmount Disc 1 1/8" - 1 1/4" tapered Carbon steerer Carbon Dropout
Drivetrain
Rear Derailleur
Shimano Ultegra RD-6800-GS 22 Speed
Front Derailleur
Shimano Ultegra FD-6800
Shift Levers
Shimano ST-RS685 DiscDual control 22 Speed
Cassette
Shimano 105 CS-5800 11-28
Crank
Shimano Ultegra FC-6800 Hollowtech II 52x36 T
Bottom Bracket
Shimano SM-BB72-41
Chain
Shimano 105 CN-HG601-11
Wheels
Front Hub
Syncros RP2.0 Disc
Rear Hub
Syncros RP2.0 Disc
Rims
Syncros RP2.0 Disc 28 Front / 28 Rear
Spokes
Syncros RP2.0
Tires
Continental Grand Sport Race Fold 700 x 28C
Brakes
Brakes
Shimano BR-RS805 Hyd Disc 160/F and 160/Rmm SM-RT99 CL Rotor
Cockpit
Stem
Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros RR2.0 Anatomic 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros RR2.0
Seatpost
Syncros Carbon FL1.0 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.34 mm | 1.37 mm | 1.4 mm | 1.44 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 577 mm | 582 mm | 584 mm | 591 mm | 599 mm | 607 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72.3 mm | 69.1 mm | 62.8 mm | 59.7 mm | 56.6 mm | 54.7 mm | 54.7 mm |
| Stack | 506.6 mm | 513 mm | 530.7 mm | 551.5 mm | 572.3 mm | 592.5 mm | 611.7 mm |
| Reach | 374.6 mm | 382.8 mm | 388 mm | 392.9 mm | 398.5 mm | 404.1 mm | 407.4 mm |
| Top Tube Length | 514 mm | 524 mm | 539 mm | 554 mm | 569 mm | 584 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 455 mm | 475 mm | 505 mm | 525 mm | 545 mm | 565 mm | 596 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 100 mm | 105 mm | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 981 mm | 987 mm | 989 mm | 996 mm | 1003 mm | 1012 mm | 1021 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 725 mm | 738 mm | 761 mm | 781 mm | 800 mm | 819 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview

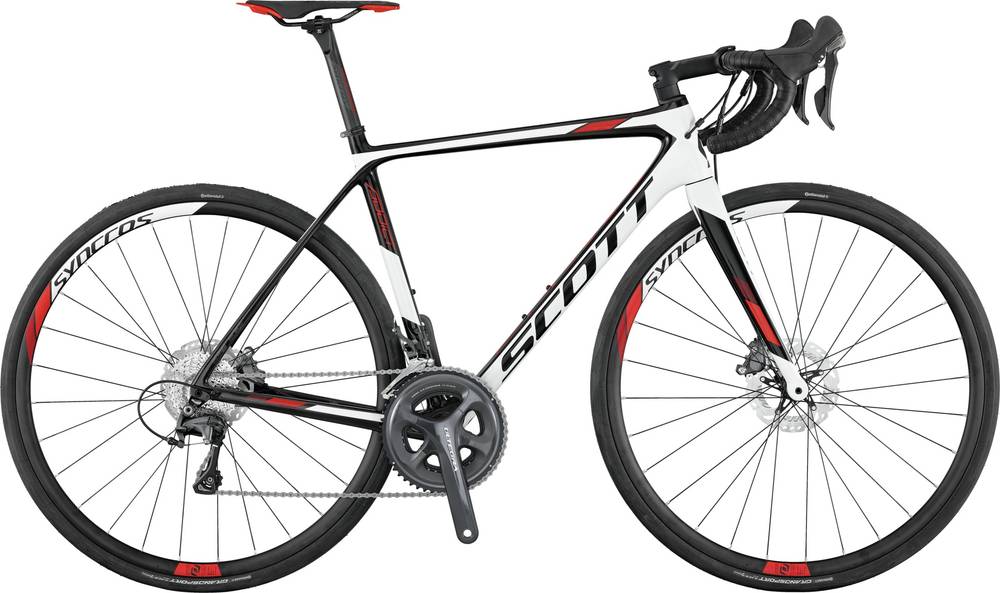

Addict 20 disc belongs to the Scott Addict model. 134 bikes variations carry this model name so far. Take a sneak peek at all Scott Addict bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Scott Addict 20 disc it’s weighing 8.16 kg (17.99 lbs). At this weight, is slightly lighter than average. In conclusion, the average Endurance bike weighs 0.49% more than Addict 20 disc.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Addict 20 disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Addict 20 disc has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
