Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Addict Disc MF Carbon technology Endurance geometry / Replaceable Dropout
Suspension Fork
Addict Disc MF 1 1/8" - 1 1/4" Carbon steerer Alloy Dropout
Drivetrain
Rear Derailleur
Shimano 105 Black RD-5800-GS 22 Speed
Front Derailleur
Shimano 105 FD-5801 Black
Shift Levers
Shimano ST-RS505 Disc Dual control 22 Speed
Cassette
Shimano 105 CS-5800 11 Speed 11-32
Crank
Shimano FC-5800 Compact Hyperdrive 50x34 T Black
Bottom Bracket
Shimano BB-RS500-PB
Chain
Shimano CN-HG601-11
Wheels
Rims
Syncros RP2.0 Disc 28 Front / 28 Rear Syncros thru axle
Tires
Schwalbe Durano Fold 700x32C
Brakes
Brakes
Shimano BR-RS505 Hyd Disc 160/F and 160/Rmm SM-RT70 CL Rotor
Cockpit
Stem
Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Creston 2.0 Compact Alloy 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros FL2.0
Seatpost
Syncros Carbon RR1.2 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm |
| Front Center | 577 mm | 584 mm | 586 mm | 591 mm | 596 mm | 603 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 69 mm | 63 mm | 60 mm | 57 mm | 55 mm | 55 mm |
| Stack | 518.7 mm | 530 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 633.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 985 mm | 991 mm | 993 mm | 998 mm | 1003 mm | 1011 mm | 1024 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 737 mm | 752 mm | 778 mm | 797 mm | 817 mm | 837 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |

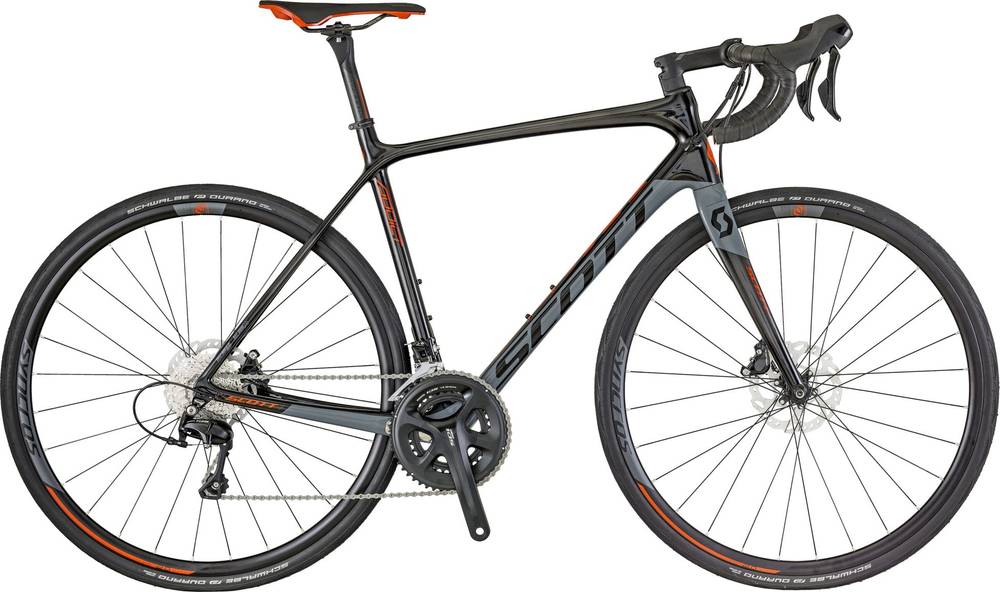

About this model
Addict 20 disc is part of the Scott Addict model. Scott launched 134 bikes of this model so far. Take a sneak peek at all Scott Addict bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.55 kg (18.85 lbs), the Addict 20 disc model is slightly heavier than average. In other words, this model is 4.27% heavier than the average Endurance bike.
Addict 20 disc components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Addict 20 disc are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Addict 20 disc comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, it won’t be difficult to find the right one for you.
