Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Addict Disc MF Carbon technology Endurance geometry / Replaceable Dropout
Suspension Fork
Addict Disc MF 1 1/8" - 1 1/4" Carbon steerer Alloy Dropout
Drivetrain
Rear Derailleur
Shimano Tiagra Black RD-4700-GS 20 Speed
Front Derailleur
Shimano Tiagra FD-4700
Shift Levers
Shimano Tiagra ST-RS405 Dual Control 20 Speed
Cassette
Shimano CS-HG500 10 Speed 11-32
Crank
Shimano Tiagra FC-4700 Compact Hyperdrive 50x34 T
Bottom Bracket
Shimano BB-RS500-PB
Chain
KMC X10
Wheels
Front Hub
Formula Team Disc 28 H
Rear Hub
Formula Team Disc 28 H
Rims
Syncros Race 24 Disc 28 Front / 28 Rear
Spokes
14G Stainless Black 2mm
Tires
Schwalbe Durano Fold 700x32C
Brakes
Brakes
Shimano BR-RS405 Hyd Disc 160/F and 160/Rmm SM-RT64 CL Rotor
Cockpit
Stem
Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Creston 2.0 Compact Alloy 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros FL2.0
Seatpost
Syncros Carbon RR1.2 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm | 280.2 mm |
| Front Center | 577 mm | 584 mm | 586 mm | 591 mm | 596 mm | 603 mm | 617 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 69 mm | 63 mm | 60 mm | 57 mm | 55 mm | 55 mm |
| Stack | 518.7 mm | 530 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 633.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 115 mm | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 985 mm | 991 mm | 993 mm | 998 mm | 1003 mm | 1011 mm | 1024 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 737 mm | 752 mm | 778 mm | 797 mm | 817 mm | 837 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model

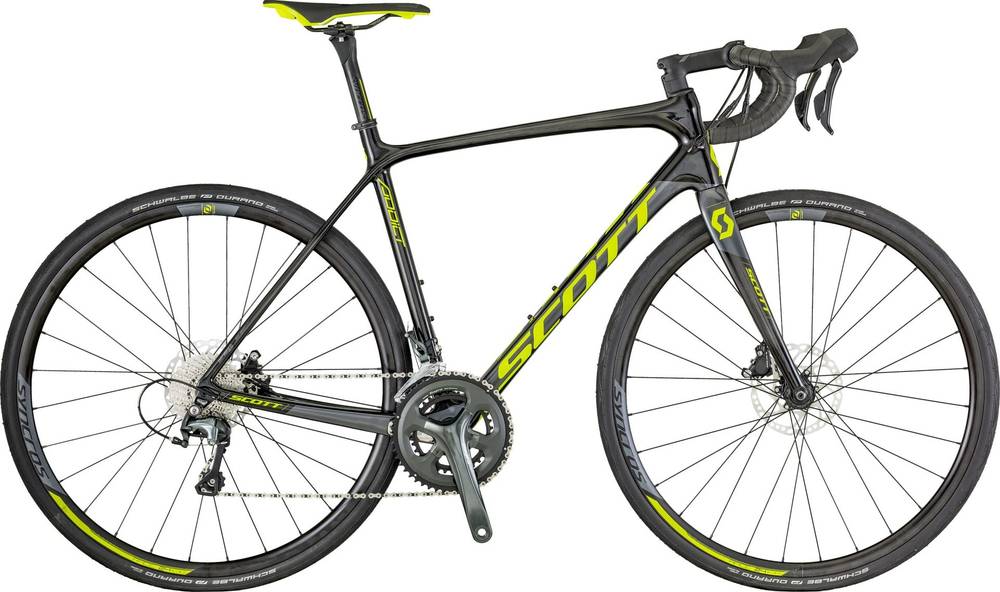

Addict 30 disc completes the Scott Addict model. There are 134 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.05 kg (19.95 lbs), the Addict 30 disc model is considerably heavier than average. In short, the average Endurance bike weight is 10.37% lower than this one.
Addict 30 disc components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Addict 30 disc are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Addict 30 disc has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Scott Addict 30 disc bike has 7 sizes, in the range of 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
