Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Addict CX HMF Disc / IMP Carbon technology / CX Race geometry / Replaceable Dropout
Suspension Fork
Addict HMF Disc 1 1/8" - 1 1/4" tapered Carbon steerer Alloy Dropout
Drivetrain
Rear Derailleur
Shimano 105 RD-5800-GS 22 Speed
Front Derailleur
Shimano 105 Black FD-5800
Shift Levers
Shimano ST-RS505 Disc Dual control 22 Speed
Cassette
Shimano 105 CS-5800 11-32 T
Crank
Shimano FC-RS500 Black Hyperdrive 36x46 T
Bottom Bracket
Shimano BB-RS500-PB
Chain
Shimano CN-HG600
Wheels
Front Hub
Syncros RP2.0 Disc
Rear Hub
Syncros RP2.0 Disc
Rims
Syncros RP2.0 Disc 28 Front / 28 Rear
Spokes
Syncros RP2.0 Disc
Tires
Continental Cyclocross xKing wire 700x35C
Brakes
Brakes
Shimano BR-RS505 Hyd Disc 160/F and 160/R mm SM-RT70 CL Rotor
Cockpit
Stem
Syncros FL2.0 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros RR2.0 Anatomic 31.8mm
Headset
Integrated Cartridge
Seat
Saddle
Syncros FL2.0
Seatpost
Syncros Carbon RR1.2 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 572 mm | 589 mm | 604 mm | 630 mm | 643 mm |
| Rake | 40 mm | 40 mm | 49 mm | 56 mm | 48 mm |
| Trail | 82 mm | 82 mm | 66 mm | 59 mm | 67 mm |
| Stack | 526.8 mm | 550.5 mm | 569.4 mm | 588.3 mm | 607.2 mm |
| Reach | 365 mm | 374 mm | 383 mm | 395 mm | 410 mm |
| Top Tube Length | 510 mm | 530 mm | 550 mm | 573 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 989 mm | 1007 mm | 1022 mm | 1048 mm | 1061 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 780 mm | 801 mm | 819 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

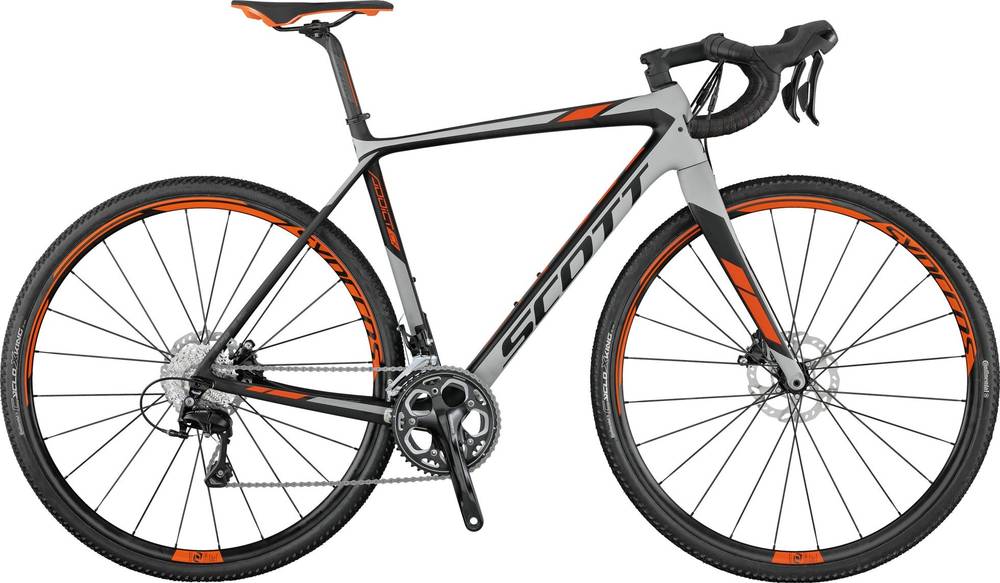

Addict CX 20 Disc is a Scott Addict model. 134 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Cyclocross bikes
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Addict CX 20 Disc weighs 8.66 kg (19.09 lbs) and is slightly lighter than the average. In other words, this model is 1.5% lighter than the average Cyclocross bike.
Addict CX 20 Disc components
Fork material
Addict CX 20 Disc has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Scott Addict CX 20 Disc 2018, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Addict CX 20 Disc has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
