Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Addict Gravel Disc HMF / IMP Carbon technology Gravel Race geometry / Replaceable Dropout
Suspension Fork
Addict Gravel Disc HMF Flatmount 1 1/8"-1 1/4" tapered Carbon steerer Alloy Dropout
Drivetrain
Rear Derailleur
Shimano Ultegra RD-R8000-GS 22 Speed
Front Derailleur
Shimano Ultegra FD-R8000
Shift Levers
Shimano ST-R8020 Disc Dual control 22 Speed
Cassette
Shimano CS-HG800 11-34
Crank
Shimano Ultegra FC-R8000 Hollowtech II 50x34 T
Bottom Bracket
Ultegra SM-BB71-41B
Chain
Shimano CN-HG701-11
Wheels
Rims
Syncros RP2.0 Disc Syncros RWS
Tires
Schwalbe G-ONE Allround FOLD 700x35C
Brakes
Brakes
Shimano BR-R8070 Hyd Disc 160/F and 160/Rmm SM-RT800 CL Rotor
Cockpit
Stem
Syncros RR2.0 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Creston 2.0 Flare Alloy 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros Tofino T-Cutout 2.0
Seatpost
Syncros Carbon FL1.0 27.2/350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 572 mm | 589 mm | 604 mm | 630 mm | 643 mm |
| Rake | 40 mm | 40 mm | 49 mm | 56 mm | 48 mm |
| Trail | 84 mm | 84 mm | 68 mm | 61 mm | 69 mm |
| Stack | 526.8 mm | 550.5 mm | 569.4 mm | 588.3 mm | 607.2 mm |
| Reach | 365 mm | 374 mm | 383 mm | 395 mm | 410 mm |
| Top Tube Length | 510 mm | 530 mm | 550 mm | 573 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 989 mm | 1007 mm | 1022 mm | 1048 mm | 1061 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 780 mm | 801 mm | 819 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

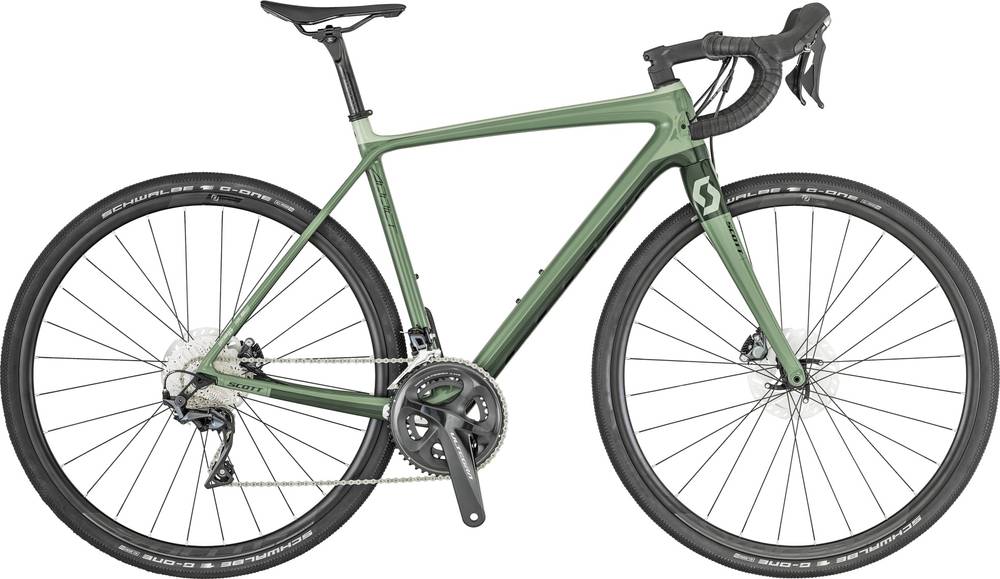

About this model
Addict Gravel 20 is a Scott Addict model. Scott launched 134 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Addict Gravel 20 weighs 8.46 kg (18.65 lbs) and is slightly heavier than the average. In other words, this model is 4.06% heavier than the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Addict Gravel 20 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Addict Gravel 20 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Scott Addict Gravel 20 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
