Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
Suspension Fork
Suntour XCM-HLO Hyd. Lockout / 100mm travel
Drivetrain
Rear Derailleur
Shimano Alivio RD-M4000 27 Speed
Front Derailleur
Shimano FD-M3000 / 31.8mm
Shift Levers
Shimano SL-M370-9R R-fire plus
Cassette
Shimano CS-HG200-9 / 11-34T
Crank
Shimano FC-M3000 40x30x22
Bottom Bracket
Shimano BB-UN-26 Cartridge Type
Chain
KMC X9
Pedals
Wellgo M-141SDU
Wheels
Front Hub
Shimano HB TX505
Rear Hub
Shimano FH-TX5058
Rims
Syncros X-20 Disc 32H / black
Spokes
14 G / stainless / black
Tires
Kenda Slant 6 2.1 / 30TPI
Brakes
Brakes
Shimano BR-M315 / Hydr. Disc SM-RT10 CL Rotor / 160F/160R
Brake Levers
Shimano BL-M315
Cockpit
Stem
Syncros M3.0 / 7° / Black
Handlebar
Syncros M3.0 / 720mm black / 31,8mm / 12mm rise / 9° BS
Headset
GW 1SI110 OE integ.
Seat
Saddle
Syncros M3.0
Seatpost
Syncros M3.0 27.2mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.44 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 632 mm | 652 mm | 662 mm | 688 mm | 714 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm | 90 mm | 90 mm | 90 mm |
| Stack | 584.6 mm | 584.6 mm | 593.9 mm | 607.9 mm | 621.9 mm |
| Reach | 384.1 mm | 404 mm | 411.3 mm | 432 mm | 452.7 mm |
| Top Tube Length | 561 mm | 581 mm | 591 mm | 616 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 395 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1061 mm | 1081 mm | 1091 mm | 1117 mm | 1143 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 726 mm | 748 mm | 775 mm | 803 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

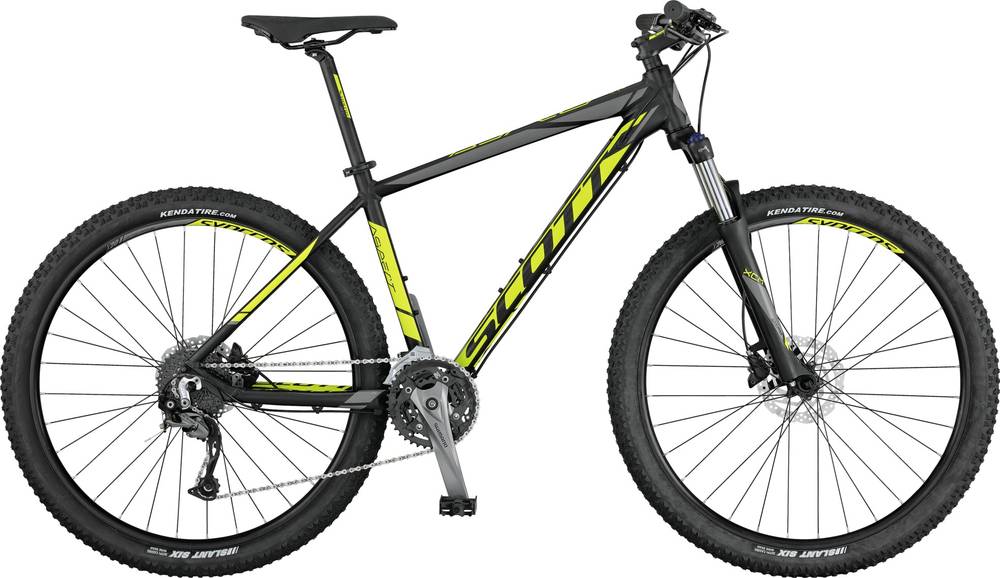

Aspect 740 belongs to the Scott Aspect model. Scott released 77 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Aspect 740 weighs 13.92 kg (30.69 lbs) and is considerably heavier than the average. In conclusion, the average Crosscountry bike weighs 12.26% less than Aspect 740.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Aspect 740 comes factory-installed with the SunTour XCM HLO fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Aspect 740 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Aspect 740 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Aspect 740 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
