Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 700/900 series Alloy 6061 / Performance geometry
Suspension Fork
Suntour XCT 100mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300 21 Speed
Front Derailleur
Shimano FD-TY500-TS6 / 31.8mm
Shift Levers
Shimano ST-EF 41 L / 7R EZ-fire plus
Cassette
Shimano MF-TZ 21-7 / 14-28T
Crank
Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket
Shimano BB-UN-100 Cartridge Type
Chain
KMC Z-50
Pedals
VP VP-536
Wheels
Front Hub
Formula DC-19 FQR disc
Rear Hub
Formula DC-31 RQR disc
Rims
Syncros X-20 Disc 32H / black
Spokes
14 G / stainless / black
Tires
Kenda Slant 6 2.35 / 30TPI
Brakes
Brakes
Tektro SCM-02 mech. Disc 160F/160R Rotor
Cockpit
Stem
TDS-C302-8FOV / 10° / 31.8 / Black
Handlebar
HL MTB-AL-312BT / 720mm / black / 12mm rise
Headset
Ritchey LOGIC ZERO-OE
Seat
Saddle
Syncros M3.0
Seatpost
HL SP C212 27.2mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.44 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 312.5 mm | 312.5 mm | 312.5 mm | 312.5 mm | 312.5 mm |
| Front Center | 632 mm | 652 mm | 663 mm | 689 mm | 715 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 584.6 mm | 584.6 mm | 593.9 mm | 607.9 mm | 621.9 mm |
| Reach | 384.1 mm | 404 mm | 411.3 mm | 432 mm | 452.7 mm |
| Top Tube Length | 561 mm | 581 mm | 591 mm | 616 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 395 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1069 mm | 1089 mm | 1100 mm | 1126 mm | 1152 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 726 mm | 748 mm | 775 mm | 803 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

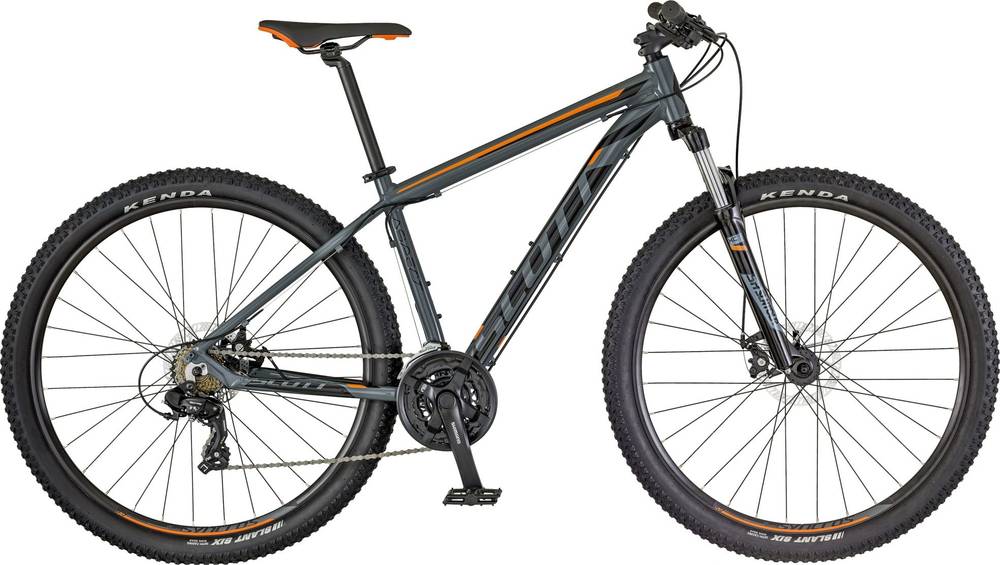

About this model
Aspect 770 is a Scott Aspect model. Scott released 77 bikes variations of this model so far. Take a sneak peek at all Scott Aspect bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Aspect 770 has a weight of 14.56 kg (32.1 lbs). In other words, this model is 17.42% heavier than the average Crosscountry bike.
Aspect 770 components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Aspect 770 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Aspect 770 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Aspect 770 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
