Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 700/900 series Alloy 6061 / Performance geometry
Suspension Fork
Suntour XCE 100mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300 21 Speed
Front Derailleur
Shimano FD-TY500-TS6 / 31.8mm
Shift Levers
Shimano ST-EF 41 L / 7R EZ-fire plus
Cassette
Sunrace CSM44 7AV / 11-34T
Crank
Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket
Feimin FP.B908N
Chain
KMC Z-50
Pedals
VP VP-536
Wheels
Front Hub
Formula DC-19 FQR disc
Rear Hub
Formula DC-25 7s RQR disc
Rims
Syncros X-20 Disc 32H / black
Spokes
14 G / stainless / black
Tires
Kenda Slant 6 2.35" / 30TPI
Brakes
Brakes
Tektro SCM-02 mech. Disc 160F/160R Rotor
Cockpit
Stem
TDS-C302-8FOV / 10° / 31.8 / Black
Handlebar
HL MTB-AL-312BT / 720mm / black / 12mm rise
Headset
Ritchey LOGIC ZERO-OE
Seat
Saddle
Syncros M3.0
Seatpost
HL SP C212 27.2mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.44 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 312.5 mm | 312.5 mm | 312.5 mm | 312.5 mm | 312.5 mm |
| Front Center | 632 mm | 652 mm | 663 mm | 689 mm | 715 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 584.6 mm | 584.6 mm | 593.9 mm | 607.9 mm | 621.9 mm |
| Reach | 384.1 mm | 404 mm | 411.3 mm | 432 mm | 452.7 mm |
| Top Tube Length | 561 mm | 581 mm | 591 mm | 616 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 395 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1069 mm | 1089 mm | 1100 mm | 1126 mm | 1152 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 726 mm | 748 mm | 775 mm | 803 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

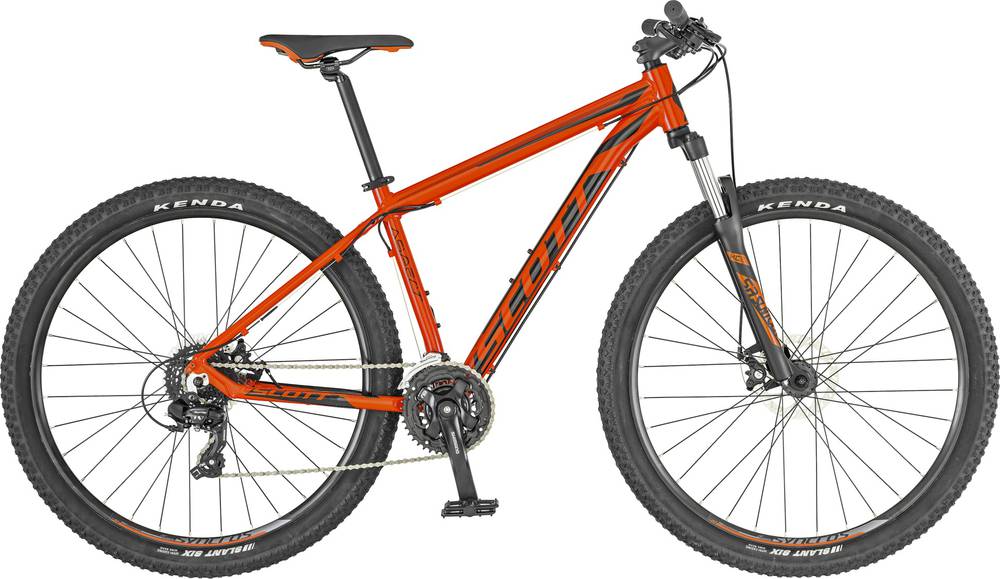

Aspect 770 red/dark red belongs to the Scott Aspect model. There are 77 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.75 kg (32.52 lbs), Scott bike is much heavier than average. In conclusion, the average Crosscountry bike weighs 18.95% less than Aspect 770 red/dark red.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Aspect 770 red/dark red bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Aspect 770 red/dark red is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Scott Aspect 770 red/dark red bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
