Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset Deore, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
Suspension Fork
Suntour XCR-RL-R Remote Lockout / Reb. Adj. 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore RD-M592 27 Speed
Front Derailleur
Shimano FD-M3000 / 31.8mm
Shift Levers
Shimano SL-M370-9R R-fire plus
Cassette
Shimano CS-HG200-9 / 11-34T
Crank
Shimano FC-M4000 40x30x22
Bottom Bracket
Shimano BB-ES-300 Cartridge Type
Chain
KMC X9
Pedals
Wellgo M-248DU
Wheels
Front Hub
Shimano HB TX505
Rear Hub
Shimano FH-TX5058
Rims
Syncros X-20 Disc 32H / black
Spokes
14 G / stainless / black
Tires
Kenda Slant 6 2.1 / 30TPI
Brakes
Brakes
Shimano BR-M315 / Hydr. Disc SM-RT10 CL Rotor / 180F/160R
Brake Levers
Shimano BL-M315
Cockpit
Stem
Syncros M3.0 / 7° / Black
Handlebar
Syncros M3.0 / 720mm black / 31,8mm / 12mm rise / 9° BS
Headset
GW 1SI110 OE integ.
Seat
Saddle
Syncros M3.0
Seatpost
Syncros M3.0 27.2mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.24 mm | 1.25 mm | 1.29 mm | 1.32 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 641 mm | 651 mm | 672 mm | 693 mm | 713 mm |
| Rake | 104 mm | 96 mm | 91 mm | 85 mm | 77 mm |
| Trail | 29 mm | 38 mm | 43 mm | 49 mm | 58 mm |
| Stack | 446.1 mm | 476.7 mm | 501.8 mm | 534.9 mm | 568.4 mm |
| Reach | 376 mm | 383 mm | 400 mm | 415 mm | 431 mm |
| Top Tube Length | 570 mm | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1079 mm | 1089 mm | 1110 mm | 1131 mm | 1151 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 781 mm | 812 mm | 837 mm | 870 mm | 876 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

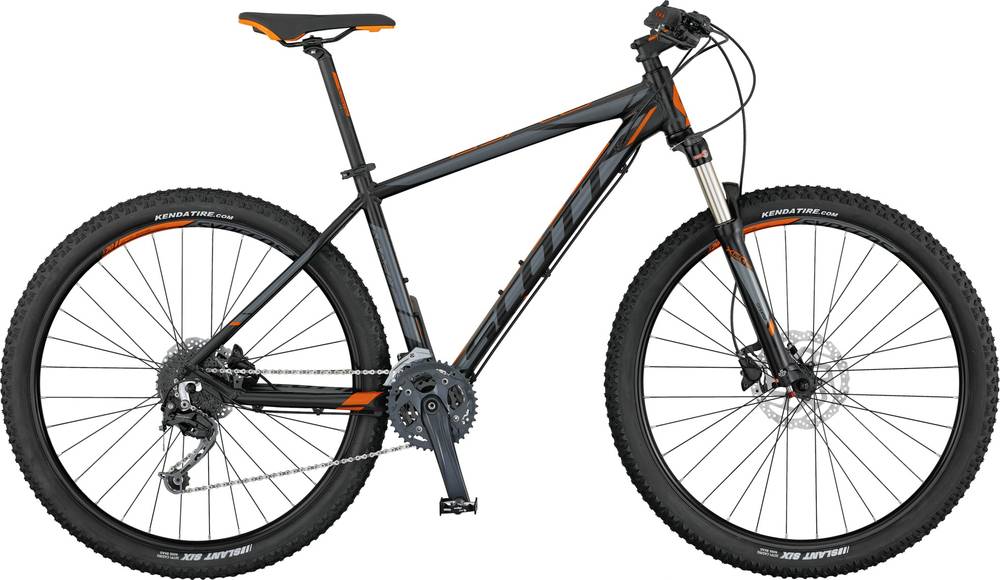

Aspect 930 is part of the Scott Aspect model. Scott launched 77 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Scott Aspect 930 it’s weighing 14.04 kg (30.95 lbs). At this weight, is considerably heavier than average. In short, the average Crosscountry bike weight is 13.23% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Aspect 930 components
Fork
Scott Aspect 930 2017 bike is equipped with the SunTour XCR fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Aspect 930 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Aspect 930 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
