Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 700/900 series Alloy 6061 DB / Performance geometry Internal cable routing
Suspension Fork
Suntour XCT-HLO Hyd. Lockout / 100mm travel
Drivetrain
Rear Derailleur
Shimano Altus RD-M370 24 Speed
Front Derailleur
Shimano FD-TY700-TS6 / 31.8mm
Shift Levers
Shimano SL-M310-8R R-fire plus
Cassette
Shimano CS-HG31-8 / 11-32T
Crank
Shimano FC-TY701 42x34x24 w/CG
Bottom Bracket
Shimano BB-UN-100 Cartridge Type
Chain
KMC Z7
Pedals
Wellgo M-141SDU
Wheels
Front Hub
Formula DC-19 FQR disc
Rear Hub
Formula DC-25 RQR disc
Rims
Syncros X-20 Disc 32H / black
Spokes
14 G / stainless / black
Tires
Kenda Slant 6 2.1 / 30TPI
Brakes
Brakes
Tektro SCH-F17 / Hydr. Disc 160F/160R Rotor
Brake Levers
Tektro SCH-F17
Cockpit
Stem
Syncros M3.0 / 7° / Black
Handlebar
Syncros M3.0 / 720mm black / 31,8mm / 12mm rise / 9° BS
Headset
GW 1SI110 OE integ.
Seat
Saddle
Syncros M3.0
Seatpost
Syncros M3.0 27.2mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.24 mm | 1.25 mm | 1.29 mm | 1.32 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 641 mm | 651 mm | 672 mm | 693 mm | 713 mm |
| Rake | 104 mm | 96 mm | 91 mm | 85 mm | 77 mm |
| Trail | 29 mm | 38 mm | 43 mm | 49 mm | 58 mm |
| Stack | 446.1 mm | 476.7 mm | 501.8 mm | 534.9 mm | 568.4 mm |
| Reach | 376 mm | 383 mm | 400 mm | 415 mm | 431 mm |
| Top Tube Length | 570 mm | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1079 mm | 1089 mm | 1110 mm | 1131 mm | 1151 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 781 mm | 812 mm | 837 mm | 870 mm | 876 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

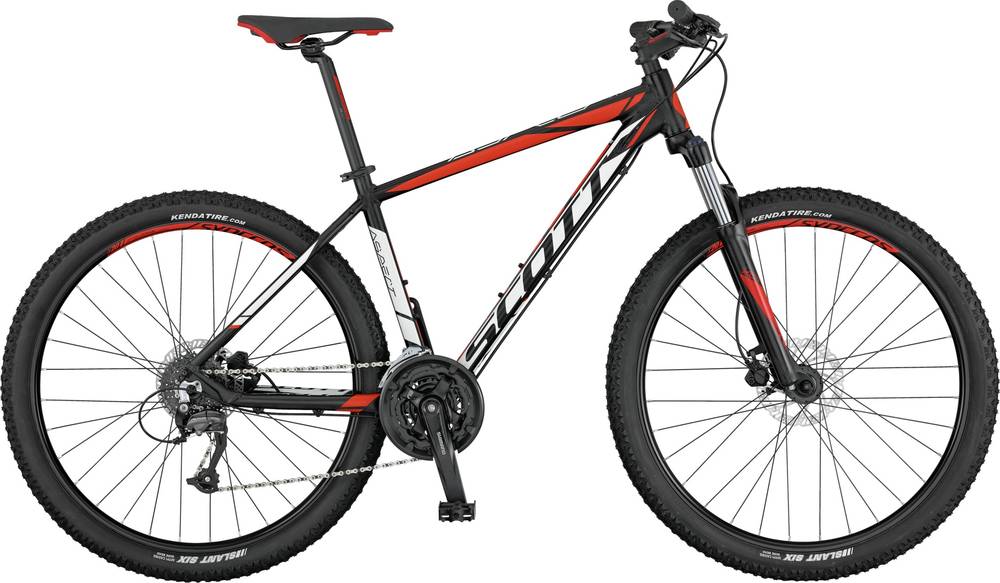

Aspect 950 is a Scott Aspect model. There are 77 bikes that carry this model name. Take a sneak peek at all Scott Aspect bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Aspect 950 weighs 14.32 kg (31.57 lbs) and is much heavier than the average. To sum up, it’s 15.48% heavier than the average weight of Crosscountry bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Aspect 950 components
Fork
The Aspect 950 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Aspect 950 2017 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aspect 950 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
