Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aspect 700/900 series Alloy 6061 / Performance geometry
Suspension Fork
Suntour XCT 100mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300 21 Speed
Front Derailleur
Shimano FD-TY500-TS6 / 31.8mm
Shift Levers
Shimano SL-M310-7R R-fire plus
Cassette
Shimano MF-TZ 21-7 / 14-28T
Crank
Shimano FC-TY501 42x34x24 w/CG
Bottom Bracket
Shimano BB-UN-100 Cartridge Type
Chain
KMC Z-50
Pedals
Wellgo M-141SDU
Wheels
Front Hub
Formula DC-19 FQR disc
Rear Hub
Formula DC-31 RQR disc
Rims
Syncros X-20 Disc 32H / black
Spokes
14 G / stainless / black
Tires
Kenda Slant 6 2.1 / 30TPI
Brakes
Brakes
Tektro SCH-F17 / Hydr. Disc 160F/160R Rotor
Brake Levers
Tektro SCH-F17
Cockpit
Stem
JD ST161A / 7° / Black
Handlebar
JD MTB499A / 720mm black / 31.8mm / 12mm rise / 9° BS
Headset
GW 1SI110 OE integ.
Seat
Saddle
Syncros M3.0
Seatpost
HL SP C212 27.2mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.24 mm | 1.25 mm | 1.29 mm | 1.32 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 641 mm | 651 mm | 672 mm | 693 mm | 713 mm |
| Rake | 104 mm | 96 mm | 91 mm | 85 mm | 77 mm |
| Trail | 29 mm | 38 mm | 43 mm | 49 mm | 58 mm |
| Stack | 446.1 mm | 476.7 mm | 501.8 mm | 534.9 mm | 568.4 mm |
| Reach | 376 mm | 383 mm | 400 mm | 415 mm | 431 mm |
| Top Tube Length | 570 mm | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1079 mm | 1089 mm | 1110 mm | 1131 mm | 1151 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 781 mm | 812 mm | 837 mm | 870 mm | 876 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

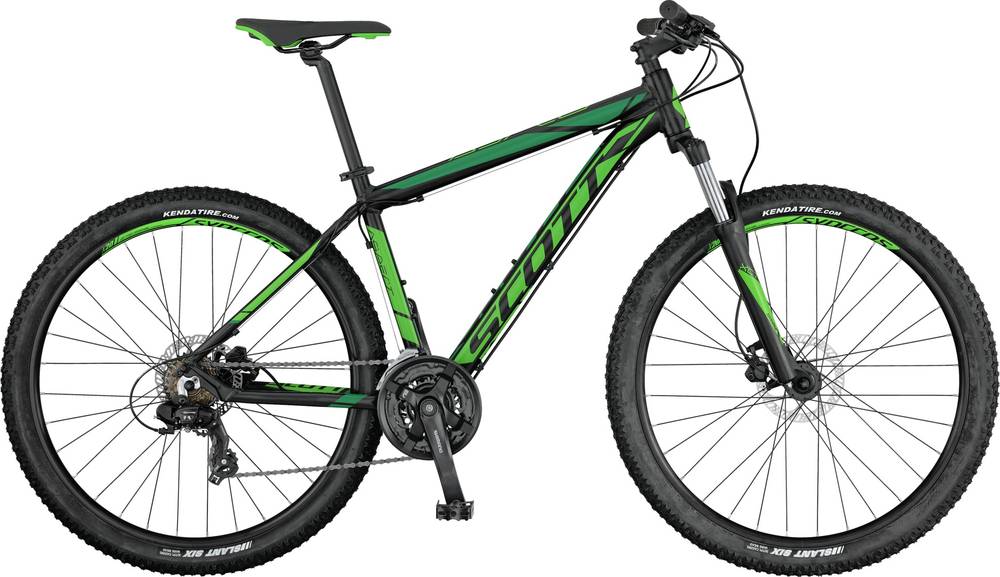

Aspect 960 is a Scott Aspect model. Scott released 77 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, Aspect 960 has a weight of 14.48 kg (31.92 lbs). In conclusion, the average Crosscountry bike weighs 16.77% less than Aspect 960.
Overview of components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Aspect 960 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Aspect 960 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
