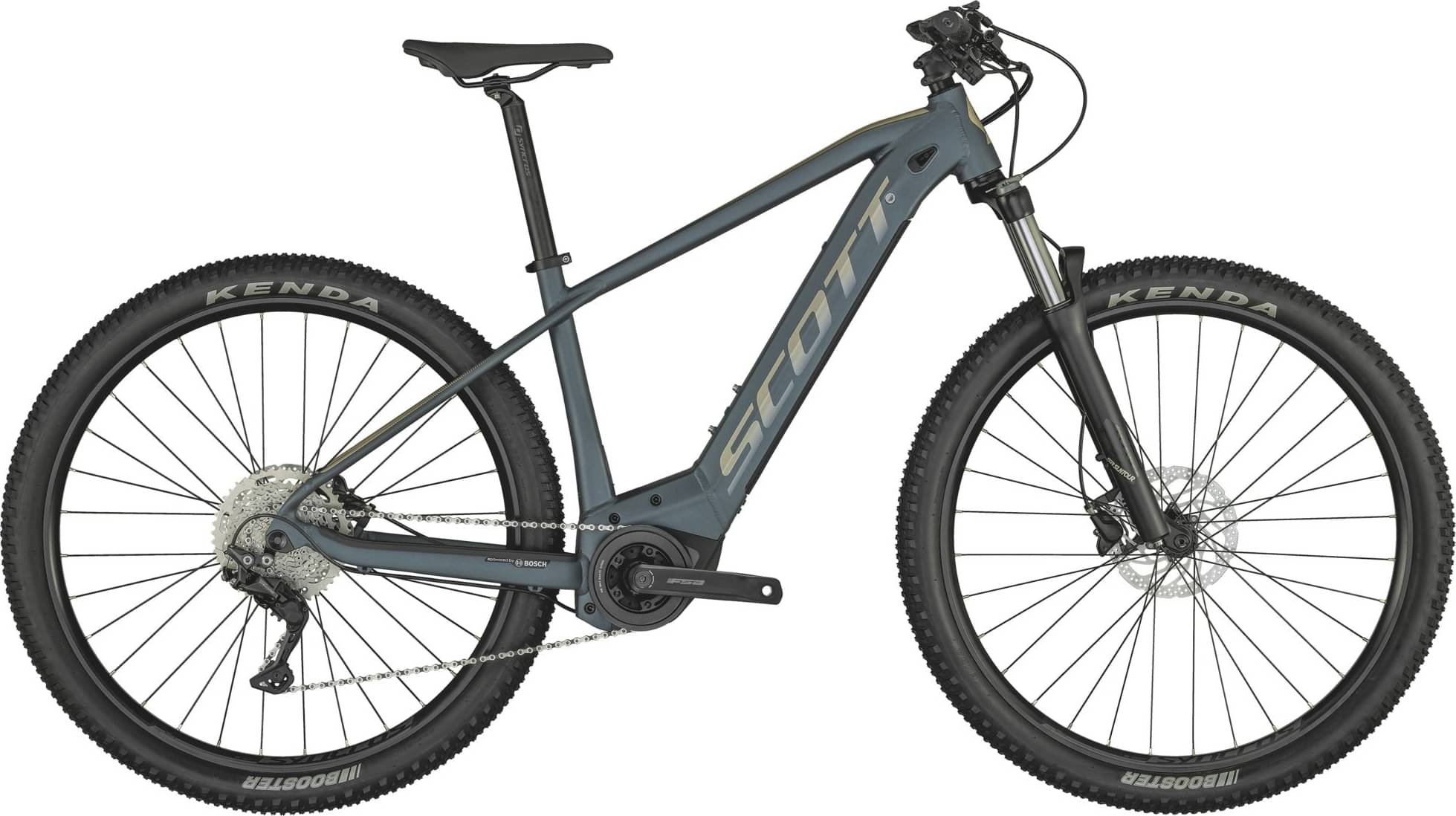

Scott Aspect eRIDE 930 2022
2022 E-bike
Estimate price |
3,746$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame Tapered Headtube E2 Custom butted tubing / internal cable routing Bosch Gen3 / Integr. removable Battery / Boost 148x12mm DO Kickstand mount / Range Booster Ready
Suspension Fork
SR Suntour XCM34 Coil 15x110mm QR axle / Tapered Steerer Remote Lockout / 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore / 10 Speed
Shift Levers
Shimano SL-M4100
Cassette
Shimano CS-M4100 Deore / 11-46 T
Crank
FSA CK-200 / 165mm
Bottom Bracket
Bosch, press-fit
Chain
KMC e10S
Wheels
Front Hub
Shimano HB-MT400-B CL / 15x110mm
Rear Hub
Shimano FH-MT400-B CL / Boost 12x148mm
Rims
Syncros X18 / 32H / 30mm / Pin Joint
Spokes
Stainless Black
Tires
Front: Kenda Booster 29x2.6" / 30TPI, Rear: Kenda Booster 29x2.6" / 30TPI
Brakes
Brakes
Shimano BR-MT200 Disc
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise Syncros Comfort lock-on grips
Headset
Syncros OE / Tapered 1.5"-1 1/8" semi integ. OD 50/62mm / ID 44/56mm
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros 3.0 / 31.6mm
Motor & Battery
Motor
Bosch Performance Line
Battery
PowerTube 625Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.601 mm | 1.552 mm | 1.508 mm | 1.473 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 686 mm | 706 mm | 728 mm | 748 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 90.5 mm | 97 mm | 97 mm | 97 mm |
| Stack | 637 mm | 644 mm | 653 mm | 663 mm |
| Reach | 398 mm | 415 mm | 433 mm | 450 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75.2 ° | 75 ° | 74.9 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1160 mm | 1180 mm | 1202 mm | 1222 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 787 mm | 809 mm | 838 mm | 853 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Aspect eRIDE 930 is a Scott E Aspect model. 17 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Scott Aspect eRIDE 940 2022 is the most affordable e-bike of this model and has a price of 3099$. On the other hand, Scott Aspect eRIDE 910 2022, is the most expensive and costs 4074$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3405$. Comparing this to the average Trail e-bike price, we see that the price is 1.19% higher.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Aspect eRIDE 930 has a weight of 24 kg (52.91 lbs). In short, the average Trail e-bike weight is 1.27% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Aspect eRIDE 930 components
Fork
Scott Aspect eRIDE 930 2022 e-bike is equipped with the Suntour XCM fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Aspect eRIDE 930 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Aspect eRIDE 930 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Aspect eRIDE 930 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
