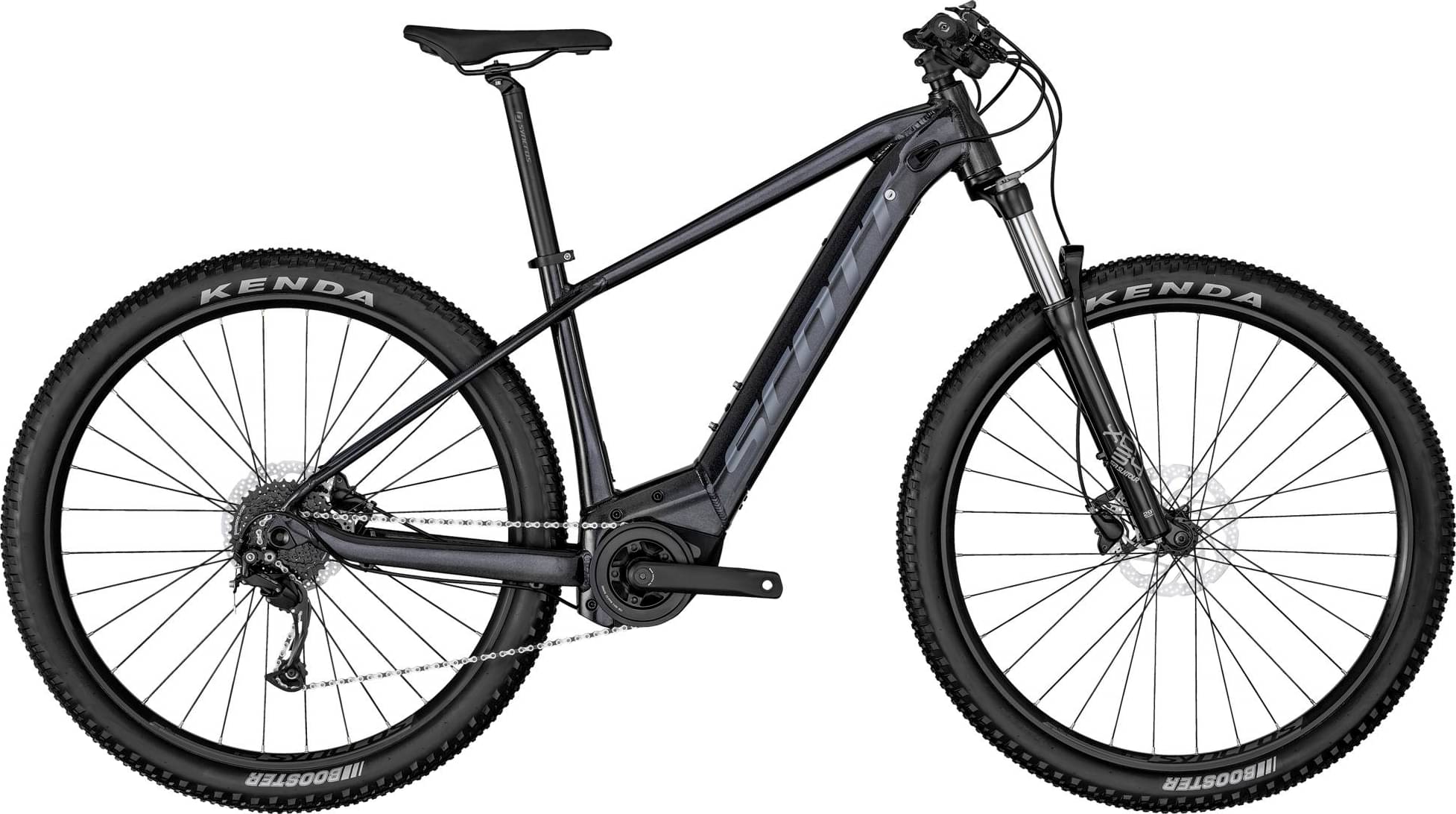

Scott Aspect eRIDE 940 2023
2023 E-bike
Estimate price |
3,099$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy frame Tapered Headtube E2 Custom butted tubing / internal cable routing Bosch Gen3 / Integr. removable Battery / Boost 148x12mm DO Kickstand mount / Range Booster Ready
Suspension Fork
SR Suntour XCM34 Coil 15x110mm QR axle / Tapered Steerer Remote Lockout / 120mm travel
Drivetrain
Rear Derailleur
Shimano RD-M3100 / 9 Speed
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200-9 ACERA 11-36
Crank
FSA CK-200 / 165mm
Bottom Bracket
Bosch, press-fit
Chain
KMC e9S
Wheels
Front Hub
Shimano HB-MT400-B CL / 15x110mm
Rear Hub
Shimano FH-MT400-B CL / Boost 12x148mm
Rims
Syncros X18 / 32H / 30mm / Pin Joint
Spokes
Stainless Black
Tires
Front: Kenda Booster 29x2.6" / 30TPI, Rear: Kenda Booster 29x2.6" / 30TPI
Brakes
Brakes
Shimano BR-MT200 Disc
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise Syncros Comfort lock-on grips
Headset
Syncros OE / Tapered 1.5"-1 1/8" semi integ. OD 50/62mm / ID 44/56mm
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros 3.0 / 31.6mm
Motor & Battery
Motor
Bosch Active Line Plus EU: 25kmh / INT: 20mph
Battery
PowerTube 500Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.601 mm | 1.552 mm | 1.508 mm | 1.473 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 686 mm | 706 mm | 728 mm | 748 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 90.5 mm | 97 mm | 97 mm | 97 mm |
| Stack | 637 mm | 644 mm | 653 mm | 663 mm |
| Reach | 398 mm | 415 mm | 433 mm | 450 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75.2 ° | 75 ° | 74.9 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1160 mm | 1180 mm | 1202 mm | 1222 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 787 mm | 809 mm | 838 mm | 853 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Aspect eRIDE 940 completes the Scott E Aspect model. There are 17 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Scott Aspect eRIDE 950 2023 is the most affordable e-bike of this model and has a price of 2899$. On the other hand, Scott Aspect eRIDE 900 2023, is the most expensive and costs 4925$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 3099$. Comparing this to the average Trail e-bike price, we see that the price is 8.58% lower.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Scott Aspect eRIDE 940 it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly heavier than average. In other words, this model is 2.53% heavier than the average Trail e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Aspect eRIDE 940 components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Aspect eRIDE 940 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aspect eRIDE 940 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Scott Aspect eRIDE 940 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
