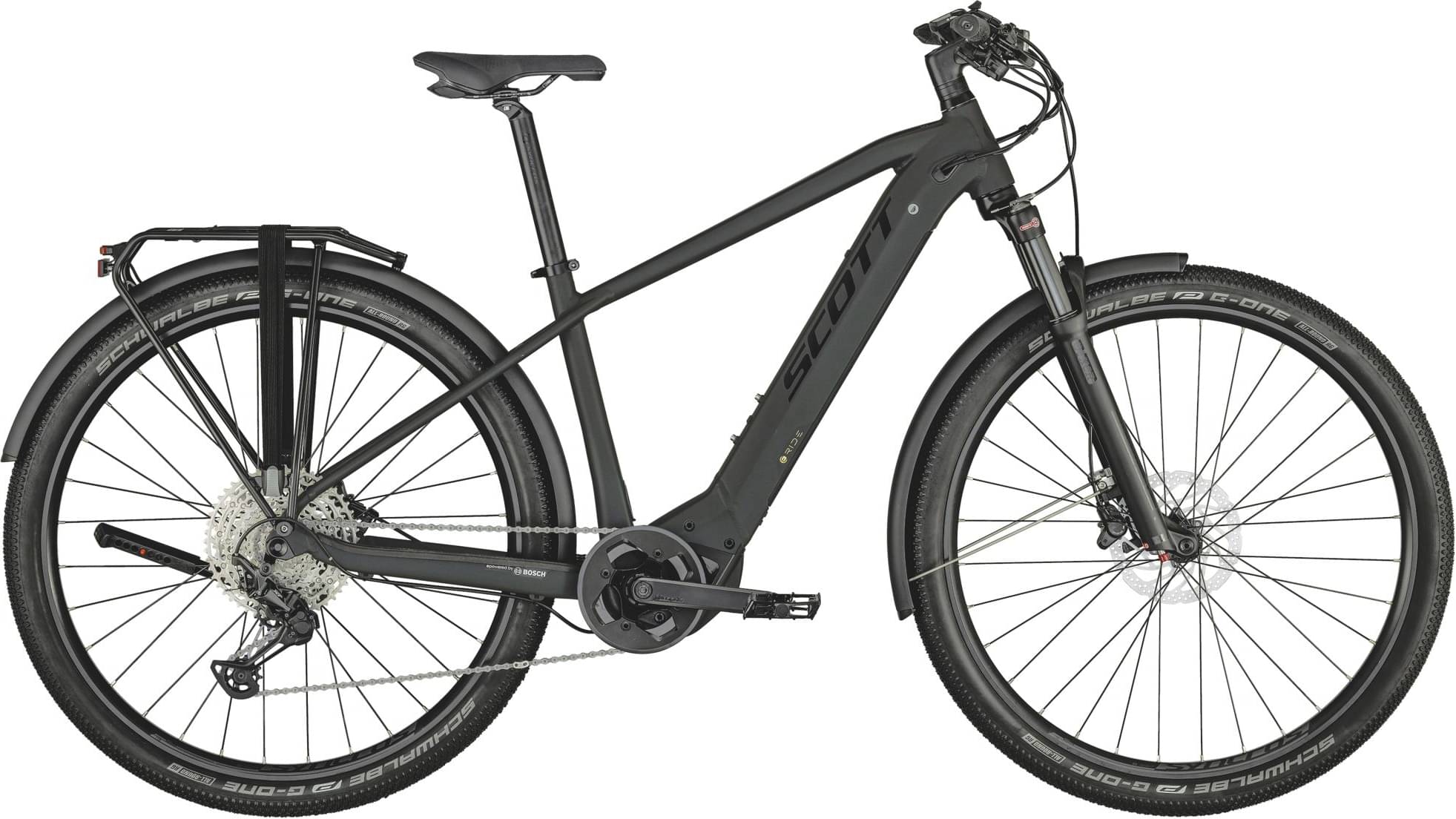

Scott Axis eRIDE 10 Men 2022
2022 E-bike
Estimate price |
4,870$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / 6061 Alloy custom butted tubing Bosch Integr. removable Battery Range Extender Ready / internal cable routing / slanted Motor
Suspension Fork
SR Suntour XCR34 Air / Tapered / S-XL 29"/ 100mm Travel / 15x110 bolt Axle / Remote Lock Out
Drivetrain
Rear Derailleur
Shimano XT / 12 Speed
Shift Levers
Shimano Deore SLM6100RA
Cassette
Shimano CS-M6100-12 10-51T 12S
Crank
Miranda 172,5MM
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT400B / Boost 12x148mm
Rims
Syncros X18 Disc / 32H Tubeless ready
Spokes
Black Spokes
Tires
Schwalbe G-One Allround Performance 29x2.25" Wired
Brakes
Brakes
Shimano BR-MT400 Disc 180/F and 180/R SM-RT30 CL rotor
Cockpit
Stem
Syncros UC3.0 with integrated Light
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Syncros FL2.0 Urban / Tapered 1.5"-1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Selle Royale Essenza
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX EU: 25kmh / US: 20mph
Battery
PowerTube 625Wh
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.601 mm | 1.552 mm | 1.508 mm | 1.473 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 686 mm | 706 mm | 728 mm | 748 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 90.5 mm | 97 mm | 97 mm | 97 mm |
| Stack | 637 mm | 644 mm | 653 mm | 663 mm |
| Reach | 398 mm | 415 mm | 433 mm | 450 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75.2 ° | 75 ° | 74.9 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1160 mm | 1180 mm | 1202 mm | 1222 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 787 mm | 809 mm | 838 mm | 853 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Axis eRIDE 10 Men completes the Scott E Axis model. Scott launched 36 e-bikes of this model so far. Take a sneak peek at all Scott E Axis e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Scott Axis eRIDE 20 Men 2022 has a starting price of 3648$. Scott Axis eRIDE EVO Tour FS 2022 on the other hand is the most expensive at 6932$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Scott Axis eRIDE 10 Men price was 4426$. If we compare this with the average Hybrid e-bike cost we notice that the price is 78.47% more expensive.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Scott Axis eRIDE 10 Men it’s weighing 25.9 kg (57.1 lbs). At this weight, is a bit heavier than average. In short, the average Hybrid e-bike weight is 8.87% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Axis eRIDE 10 Men components
Fork
The Axis eRIDE 10 Men comes factory-installed with the Suntour XCR Air fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Scott Axis eRIDE 10 Men 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
