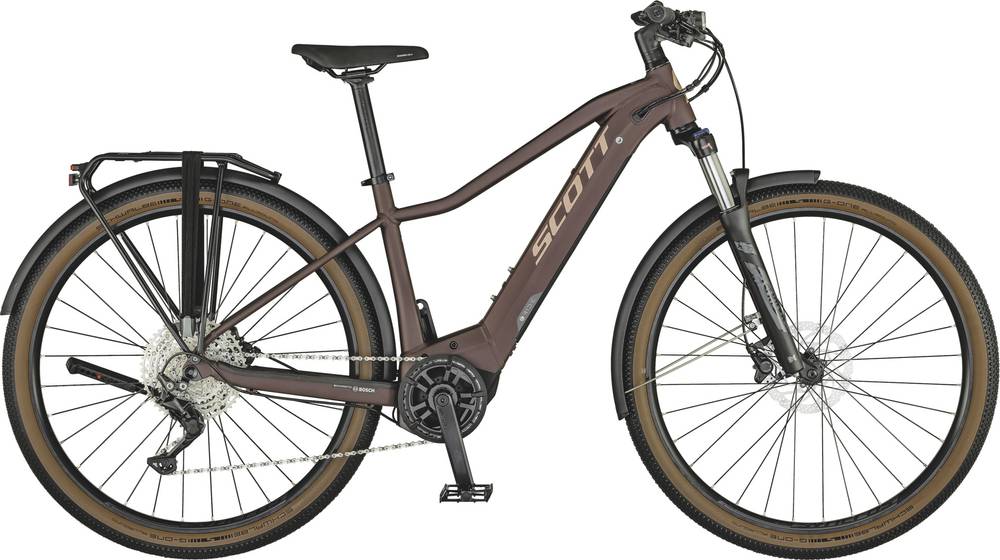

Scott Axis eRIDE 20 Lady US 2021
2021 E-bike
Weight | 26.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 100mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerTube 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy XS-L=29" / 6061 Alloy custom butted tubing Integr. removable Range Extender Ready / internal cable routing / slanted Motor
Suspension Fork
SR Suntour XCR34 Coil / Tapered / XS-L 29" 100mm Travel / 15x110 bolt Axle / Remote Lock Out
Drivetrain
Rear Derailleur
Shimano Deore / 11 Speed
Shift Levers
Shimano Deore SLM5100RA
Cassette
Shimano CS-M5100-11 11-51T 11S
Crank
Miranda 172,5MM
Chain
KMC E11S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT400B / Boost 12x148mm
Rims
Syncros X18 Disc / 32H Tubeless ready
Spokes
Black Spokes
Tires
Schwalbe G-One Allround Performance 29x2.25" Wired
Brakes
Brakes
Shimano BR-MT400 Disc 180/F and 180/R SM-RT30 CL rotor
Cockpit
Stem
Syncros UC3.0 with integrated Light
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Syncros FL2.0 Urban / Tapered 1.5"-1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance EU: 25kmh / US: 20mph
Battery
PowerTube 500Wh
Remote
Purion Display
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.58 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 691 mm | 691 mm | 712 mm | 727 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 114.4 mm | 114.4 mm | 114.4 mm | 110.7 mm |
| Stack | 638 mm | 638 mm | 648 mm | 659 mm |
| Reach | 404.6 mm | 404.6 mm | 422 mm | 438.6 mm |
| Top Tube Length | 586 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 355 mm | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1171 mm | 1171 mm | 1192 mm | 1207 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 747 mm | 772 mm | 777 mm | 806 mm |
| Wheels | 650 | 650 | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Axis eRIDE 20 Lady US is part of the Scott E Axis model. There are 36 e-bikes that carry this model name. Take a sneak peek at all Scott E Axis e-bikes models from 2021, by clicking here.
Model range prices
Scott Axis eRIDE 10 Lady US 2021 is the most affordable e-bike of this model and has a price of 3599$. On the other hand, Scott Axis eRIDE 10 Men US 2021, is the most expensive and costs 3599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for General Urban e-bikes
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Scott Axis eRIDE 20 Lady US it’s weighing 26.4 kg (58.2 lbs). At this weight, is a bit heavier than average. In short, the average General Urban e-bike weight is 9.63% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Axis eRIDE 20 Lady US are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Axis eRIDE 20 Lady US has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
