Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / Virtual 4 link kinematic VLK 29" / Boost 148x12mm 140mm travel / Bosch Integr. removable Battery Range Extender Ready Tapered Headtube
Suspension Fork
Rock Shox Recon Silver Air / Tapered / S-XL 29"/ 140mm Travel / Maxle Lite / Remote Lock Out
Rear Shock
X-Fusion NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control -Descend Reb. Adj. Travel 130-85-Lockout / 185X50mm
Drivetrain
Rear Derailleur
Shimano XT / 12 Speed
Front Derailleur
SCOTT Chainguide
Shift Levers
Shimano Deore SLM6100RA
Cassette
Shimano CS-M7100-12 10-51T 12S
Crank
FSA CK-745 IS GEN4 MTB 170MM
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Formula CL 811 / 15x110mm
Rear Hub
Formula MSC-148S / Boost 12x148mm
Rims
Syncros MAXX Disc / 32H Tubeless ready
Spokes
Sapim double butted
Tires
Schwalbe G-One Allround Performance 29x2.25" Wired
Brakes
Brakes
Shimano BR-MT520 4 Piston 203/F SM-RT64 CL and 203/R RT-EM600 CL rotor
Cockpit
Stem
Syncros FL3.0 with front Light mount and Kiox mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros FL3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX
Battery
PowerTube 625Wh
Remote
Kiox Display
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.43 mm | 1.46 mm | 1.39 mm | 1.42 mm | 1.32 mm | 1.35 mm |
| Bottom Bracket Height | 337.9 mm | 339.5 mm | 338 mm | 339.5 mm | 338.1 mm | 339.5 mm | 338.2 mm | 339.5 mm |
| Front Center | 761 mm | 761 mm | 782 mm | 782 mm | 804 mm | 804 mm | 836 mm | 836 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 52 mm | 51 mm |
| Trail | 112.5 mm | 117.5 mm | 112.5 mm | 117.5 mm | 111.1 mm | 116 mm | 111.1 mm | 116 mm |
| Stack | 620.8 mm | 625.2 mm | 625.2 mm | 629.7 mm | 635.3 mm | 639.9 mm | 644.2 mm | 649 mm |
| Reach | 419.9 mm | 413.3 mm | 438.6 mm | 432.2 mm | 458.7 mm | 452.2 mm | 486.2 mm | 479.8 mm |
| Top Tube Length | 576.4 mm | 578 mm | 596.4 mm | 598 mm | 626.3 mm | 628 mm | 656.3 mm | 658 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 76 ° | 75.4 ° | 75.4 ° | 74.8 ° | 75.4 ° | 74.8 ° |
| Seat Tube Length | 410 mm | 410 mm | 440 mm | 440 mm | 490 mm | 490 mm | 540 mm | 540 mm |
| Head Tube Angle | 65.4 ° | 64.8 ° | 65.4 ° | 64.8 ° | 65.6 ° | 65 ° | 65.6 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 145 mm |
| Chainstay Length | 455 mm | 458 mm | 455 mm | 458 mm | 455 mm | 458 mm | 455 mm | 458 mm |
| Wheelbase | 1215 mm | 1217 mm | 1236 mm | 1238 mm | 1258 mm | 1260 mm | 1290 mm | 1292 mm |
| Bottom Bracket Drop | 22 mm | 30 mm | 22 mm | 30 mm | 22 mm | 30 mm | 21 mm | 30 mm |
| Standover Height | 741 mm | 747 mm | 746 mm | 752 mm | 778 mm | 783 mm | 790 mm | 795 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |

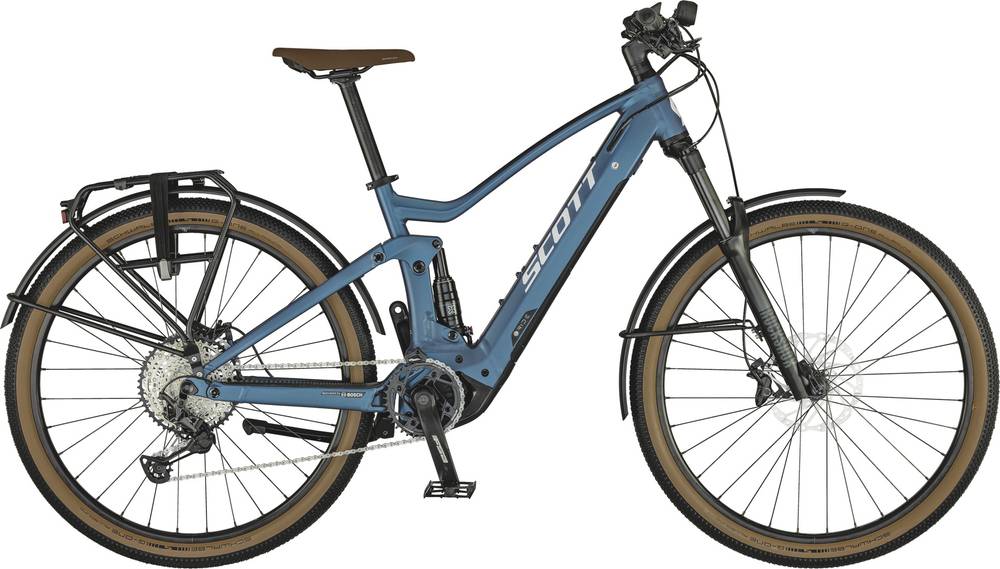

About this model
Axis eRIDE Evo belongs to the Scott E Axis model. Scott launched 36 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Scott Axis eRIDE 10 Lady US 2021 is the cheapest e-bike model and costs 3599$. Scott Axis eRIDE 10 Men US 2021 is the most expensive one and costs 3599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban e-bikes
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for General Urban e-bikes
General Urban e-bikes weigh an average of 24.08 kg (53.09 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 26.6 kg (58.64 lbs), the Axis eRIDE Evo model is considerably heavier than average. To sum up, it’s 10.47% heavier than the average weight of General Urban e-bikes.
Overview of components
Fork
The Axis eRIDE Evo comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Scott Axis eRIDE Evo e-bike has the X-Fusion NUDE Trunnion SCOTT custom w. model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Axis eRIDE Evo 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Axis eRIDE Evo is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
