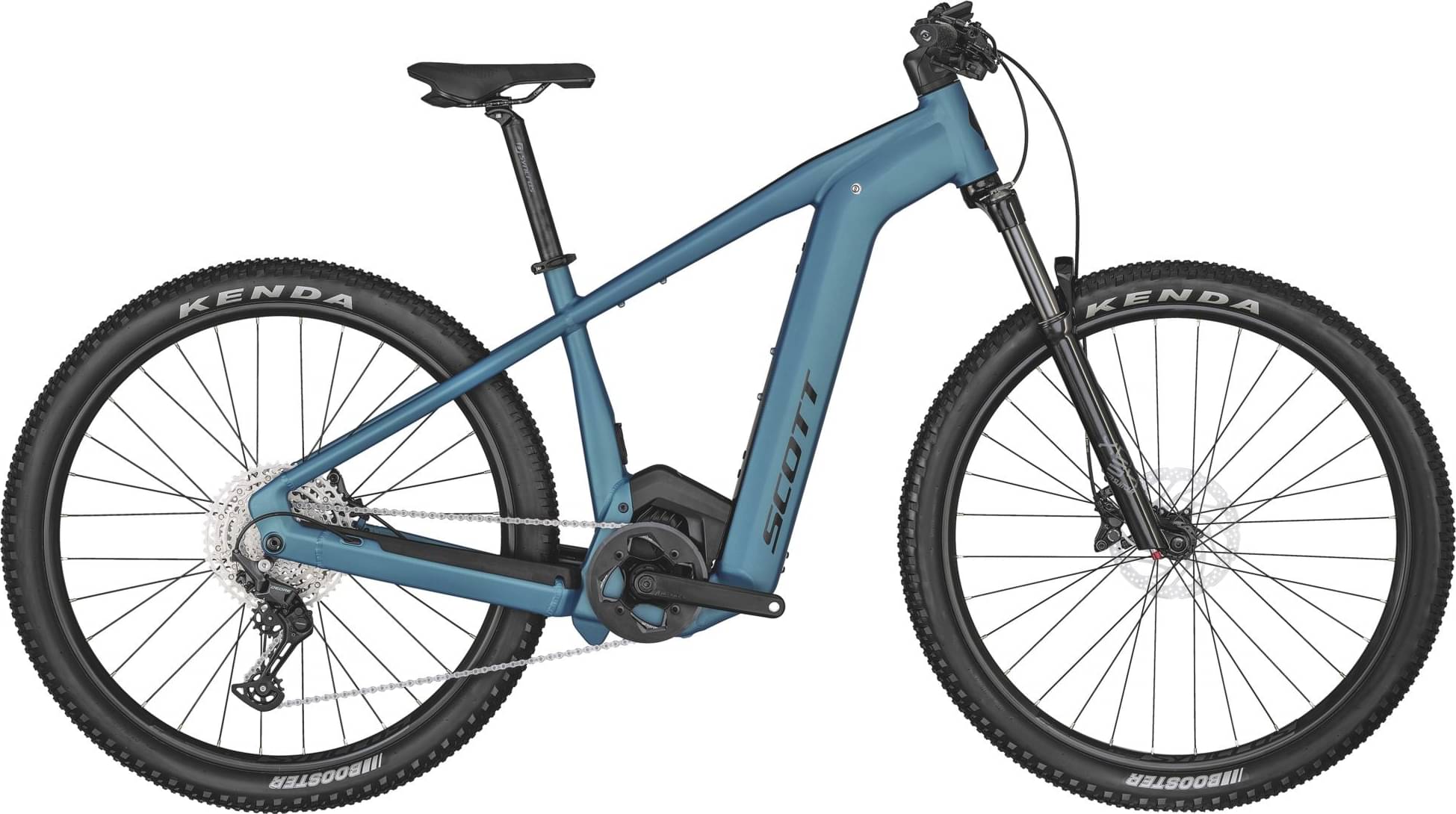

Scott Axis eRIDE EVO Men 2022
2022 E-bike
Estimate price |
5,218$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / 6061 Alloy custom butted tubing Bosch Integr. removable Battery internal cable routing
Suspension Fork
SR Suntour XCR34 Air / Tapered / S-XL 29"/ 120mm Travel / 15x110 bolt Axle / Remote Lock Out
Drivetrain
Rear Derailleur
Shimano Deore / 12 Speed
Shift Levers
Shimano Deore Trigger SL-M6100RC
Cassette
Shimano CS-M6100-12 10-51T 12S
Crank
Miranda 172,5MM
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Shimano FH-MT400B / Boost 12x148mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
Spokes
Black Spokes
Tires
Front: Kenda Booster 29x2.6" / 30TPI, Rear: Kenda Booster 29x2.6" / 30TPI
Brakes
Brakes
Shimano BR-MT400 Disc 180/F and 180/R SM-RT30 CL rotor
Cockpit
Stem
Syncros FL 2.0
Handlebar
Syncros AM2.0 / 6061 Alloy / 31.8mm / 4° / 1 1 / 8" Syncros Lock On Grip
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX BES3
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 646.6 mm | 655.8 mm | 665.1 mm | 683.7 mm |
| Reach | 398.5 mm | 405.8 mm | 413.1 mm | 417.8 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1178 mm | 1189 mm | 1200 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 801 mm | 822 mm | 853 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Axis eRIDE EVO Men is a Scott E Axis model. Scott launched 36 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Scott Axis eRIDE 20 Men 2022 has a starting price of 3648$. Scott Axis eRIDE EVO Tour FS 2022 on the other hand is the most expensive at 6932$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4743$. If we compare this with the average Hybrid e-bike cost we notice that the price is 91.25% more expensive.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, Axis eRIDE EVO Men has a weight of 26.7 kg (58.86 lbs). In other words, this model is 12.23% heavier than the average Hybrid e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Axis eRIDE EVO Men components
Fork
The Axis eRIDE EVO Men comes factory-installed with the Suntour XCR Air fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Scott Axis eRIDE EVO Men 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Axis eRIDE EVO Men is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
