Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset NX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Lithium-ion with 2A charger -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL Solo Air, Boost
Rear Shock
X-Fusion Nude, travel/geo adjust, lockout, 190mm x 50mm
Drivetrain
Rear Derailleur
SRAM NX1
Front Derailleur
N/A
Shift Levers
SRAM NX1, 11-speed
Cassette
SRAM PG-1130, 11-42 tooth, 11-speed
Crank
Miranda Delta
Chain
SRAM PC-1111
Chain Guide
Scott
Pedals
None included
Wheels
Front Hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano Zee FH-M645, 12mm x 150mm
Rear Hub
Front: Shimano HB-M6010-B CL, Boost 15mm x 110mm, Rear: Shimano Zee FH-M645, 12mm x 150mm
Rims
Syncros X-30S, 32 hole, 30mm width, sleeve joint, tubeless ready
Spokes
Stainless black
Tires
Front: Maxxis Minion DHF, 2.8" Double Down Maxx Terra TR 120 TPI kevlar bead, Rear: Maxxis Minion DHR II, 2.8" Double Down Maxx Terra TR 120 TPI kevlar bead
Brakes
Brakes
Shimano Deore M6000 with 203mm Shimano SM-RT64 CL rotors
Brake Levers
Shimano Deore M6000
Cockpit
Stem
Syncros FL2.0, alloy 6061, 50mm length (S-M), 60mm length (L), 70mm length (XL), +/- 6°, 31.8mm clamp, integrated top cup
Handlebar
Syncros FL2.0 Mini Riser, alloy 6061, 760mm width, 12mm rise, 9° sweep
Grips
Syncros Pro Lock-on
Headset
Syncros OE Press Fit
Seat
Saddle
Syncros XM2.5
Seatpost
Syncos Dropper 2.5, 100mm (S), 120mm (M-XL)
Motor & Battery
Motor
Bosch Performance CX, 250W
Battery
Bosch Lithium-ion with 2A charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | MD High | LG High | XL High |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.4 mm | 1.34 mm |
| Bottom Bracket Height | 342.6 mm | 342.5 mm | 342.5 mm | 342.4 mm |
| Stack | 617.2 mm | 621.9 mm | 632.8 mm | 642.1 mm |
| Reach | 411.6 mm | 430.4 mm | 451.7 mm | 479.3 mm |
| Top Tube Length | 579.5 mm | 599.6 mm | 629.7 mm | 659.7 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 64.8 ° | 64.8 ° | 65.1 ° | 65.1 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1208 mm | 1229 mm | 1252 mm | 1283 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 731 mm | 737 mm | 762 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

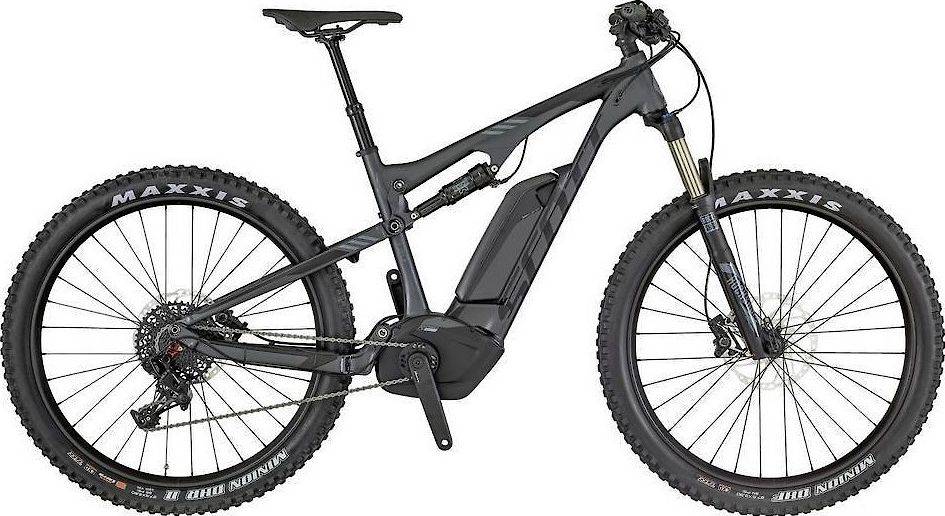

E-Genius 730 belongs to the Scott E E Genius model. Scott released 6 e-bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.8 kg (50.27 lbs), the E-Genius 730 model is slightly lighter than average. To sum up, it’s 3.95% lighter than the average weight of Trail e-bikes.
E-Genius 730 components
Fork
The E-Genius 730 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is X-Fusion Nude, with a travel distance of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on E-Genius 730 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott E-Genius 730 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Scott E-Genius 730 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
