Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Alfine, FSA -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Performance 250w System w/ 400wh battery / Intuvia display -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-SUB 6061 Alloy, Rigid
Suspension Fork
New SUB rigid
Drivetrain
Shift Levers
Shimano Alfine 8 Speed
Cassette
20 T
Crank
FSA Metropolis 18 T
Chain
KMC X9
Pedals
Xerama SP 823
Wheels
Front Hub
Formula CL51
Rear Hub
Shimano Alfine 8 Speed
Rims
Mach 1-640
Spokes
Sapim double butted
Tires
Continental E Contact 700x42c
Brakes
Brakes
Shimano BR-M447
Brake Levers
Shimano BL-M506 Disc
Cockpit
Stem
Syncros UC3.0 31.8mm
Handlebar
Syncros UC3.0 620mm, 15° bend
Headset
VP semi integrated
Seat
Saddle
Syncros Urban Solution 2.5
Seatpost
Syncros UC3.0, 31.6mm
Motor & Battery
Motor
Bosch Performance 250w System w/ 400wh battery / Intuvia display
Battery
Bosch Performance 250w System w/ 400wh battery / Intuvia display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.7 mm | 1.72 mm | 1.76 mm |
| Front Center | 604 mm | 603 mm | 613 mm | 616 mm |
| Rake | 28 mm | 28 mm | 28 mm | 28 mm |
| Trail | 91 mm | 87 mm | 84 mm | 81 mm |
| Stack | 616 mm | 637 mm | 658.1 mm | 679.2 mm |
| Reach | 377.4 mm | 374.8 mm | 383.2 mm | 386 mm |
| Top Tube Length | 566 mm | 576 mm | 591 mm | 607 mm |
| Seat Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 550 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1088 mm | 1087 mm | 1096 mm | 1100 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 782 mm | 809 mm | 834 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

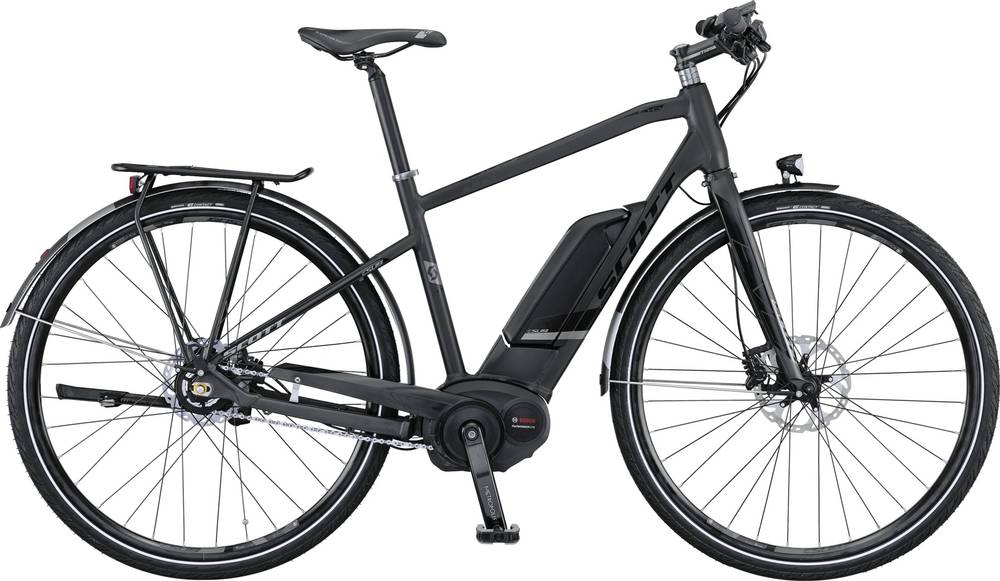

E-Sub Evo is part of the Scott E E Sub model. There are 3 e-bikes that carry this model name. Take a sneak peek at all Scott E E Sub e-bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Urban e-bikes average price
If you want to purchase a solid General Urban e-bike, it is important to know that the average cost is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
General Urban e-bikes average weight
If we make a quick analysis of the average weight of a General Urban e-bike, we get 24.08 kg (53.09 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 22 kg (48.5 lbs), Scott e-bike is a bit lighter than average. In other words, this model is 9.45% lighter than the average General Urban e-bike.
Overview of components
Wheels
The E-Sub Evo 2017 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
