Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W mid-drive -
Battery Bosch Active 250w System 400wh batter pack / Intuvia display -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-SUB 6061 Alloy
Suspension Fork
Suntour NEX HLO, w/ Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-T610 SGS 10 speed
Shift Levers
Shimano Deore SL-T610
Cassette
Shimano CS-HG50-10 11-36 T
Crank
FSA Metropolis 18 T
Chain
KMC X10
Pedals
Xerama SP 823
Wheels
Front Hub
Formula CL51
Rear Hub
Shimano FH-RM35 Disc
Rims
Mach 1-640
Spokes
Sapim double butted
Tires
Continental E Contact 700x42c
Brakes
Brakes
Shimano BR-M355
Brake Levers
Shimano BR-M355 Disc
Cockpit
Stem
JD-ST103 A adjustable angle
Handlebar
Syncros UC3.0 25mm rise, 35° bend
Headset
VP semi integrated
Seat
Saddle
Syncros Urban Commuter 2.5
Seatpost
Syncros UC3.0, 31.6mm
Motor & Battery
Motor
Bosch Active 250w System 400wh batter pack / Intuvia display
Battery
Bosch Active 250w System 400wh batter pack / Intuvia display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.7 mm | 1.72 mm | 1.76 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 604 mm | 603 mm | 613 mm | 616 mm |
| Rake | 28 mm | 28 mm | 28 mm | 28 mm |
| Trail | 86 mm | 83 mm | 80 mm | 77 mm |
| Stack | 616 mm | 637 mm | 658.1 mm | 679.2 mm |
| Reach | 377.4 mm | 374.8 mm | 383.2 mm | 386 mm |
| Top Tube Length | 566 mm | 576 mm | 591 mm | 607 mm |
| Seat Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 550 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1088 mm | 1087 mm | 1096 mm | 1100 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 782 mm | 809 mm | 834 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

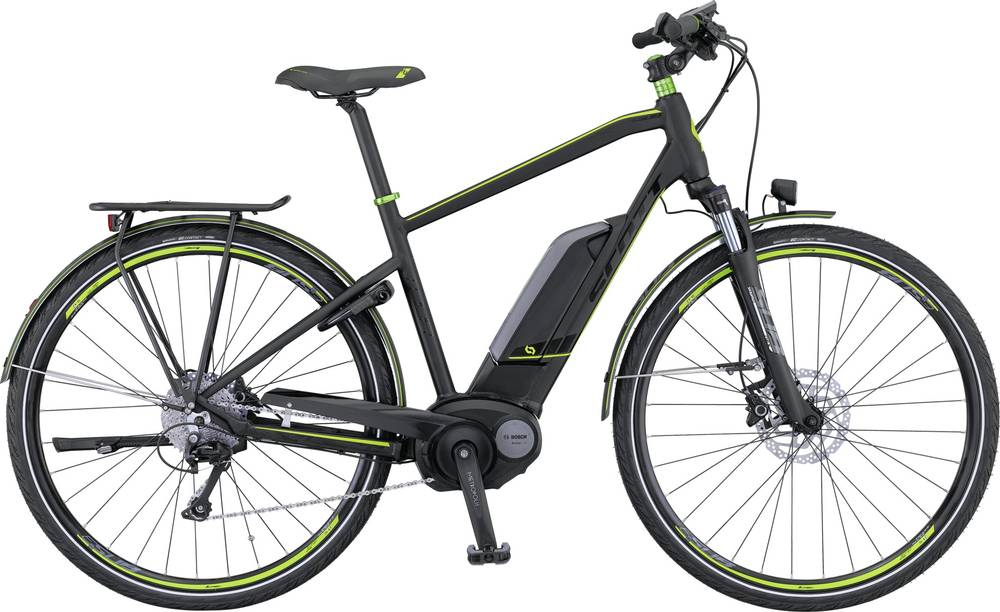

About this model
E-Sub Tour Men (US) belongs to the Scott E E Sub model. 3 e-bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Touring e-bikes average weight
Touring e-bikes weigh an average of 25.55 kg (56.33 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 23.9 kg (52.69 lbs), Scott e-bike is a bit lighter than average. To sum up, it’s 6.9% lighter than the average weight of Touring e-bikes.
E-Sub Tour Men (US) components
Fork
The E-Sub Tour Men (US) comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on E-Sub Tour Men (US) are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Sub Tour Men (US) comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
E-Sub Tour Men (US) comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
