Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FOIL DISC HMF / IMP, F01 AERO Carbon tech. Road Race geometry Replaceable Dropout STD Seattube / INT BB
Suspension Fork
FOIL DISC HMF 1 1/4" - 1 1/2" Carbon steerer Integrated Carbon Dropout
Drivetrain
Rear Derailleur
Shimano Ultegra RD-R8050 22 Speed Electronic
Front Derailleur
Shimano Ultegra FD-R8050 Eletronic Shift System
Shift Levers
Shimano Ultegra ST-R8070 22 Speed Electronic Shift
Cassette
Shimano Ultegra CS-R8000 11-30
Crank
Shimano Ultegra FC-R8000 Hollowtech II 52x36 T
Bottom Bracket
Shimano SM-BB72-41B
Chain
Shimano CN-HG701-11
Wheels
Rims
Syncros RR2.0 Disc 28 Front / 28 Rear Syncros RWS
Tires
Continental Grand Sport Race Fold 700x28C
Brakes
Brakes
Shimano BR-R8070 Hyd Disc 160/F and 160/Rmm SM-RT800 CL Rotor
Cockpit
Stem
Syncros FOIL 1 1/4"
Handlebar
Syncros Creston 1.5 Compact 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros RR2.0
Seatpost
Syncros FOIL aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.34 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 571 mm | 577 mm | 579 mm | 586 mm | 593 mm | 602 mm | 611 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 77 mm | 73 mm | 67 mm | 64 mm | 61 mm | 59 mm | 59 mm |
| Stack | 504.6 mm | 511 mm | 528.7 mm | 549.5 mm | 570.3 mm | 590.5 mm | 609.7 mm |
| Reach | 372.6 mm | 380.8 mm | 386 mm | 390.9 mm | 396.5 mm | 402 mm | 405.4 mm |
| Top Tube Length | 512 mm | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 974 mm | 980 mm | 982 mm | 989 mm | 996 mm | 1004 mm | 1014 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 717 mm | 731 mm | 755 mm | 775 mm | 800 mm | 814 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model

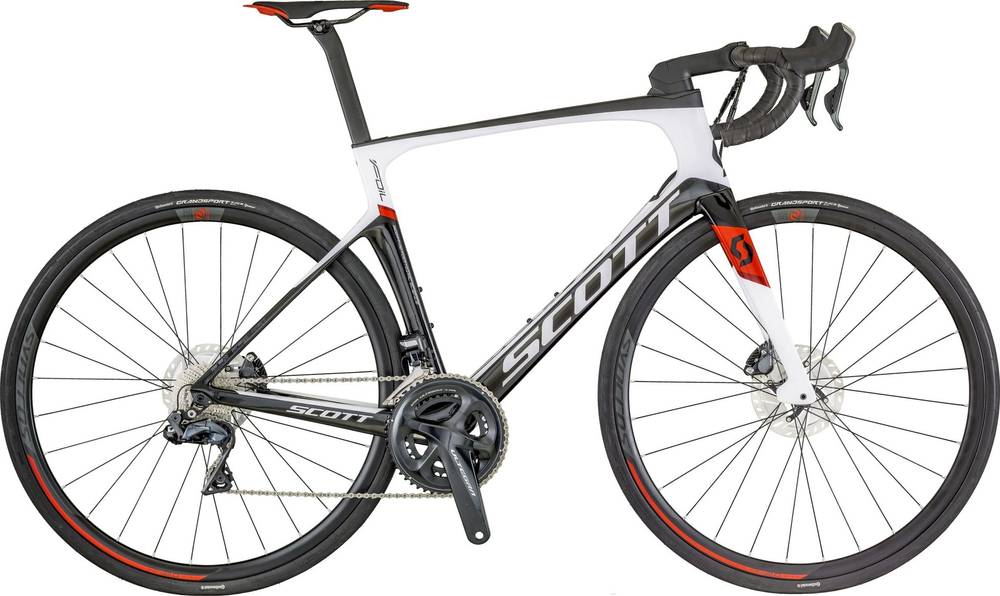

Foil 10 disc is a Scott Foil model. There are 37 bikes that carry this model name. Take a sneak peek at all Scott Foil bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Aero bikes average weight
Aero bikes have an average weight of 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 8.25 kg (18.19 lbs), Scott bike is considerably heavier than average. In conclusion, the average Aero bike weighs 12.4% less than Foil 10 disc.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Scott Foil 10 disc 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Foil 10 disc is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Foil 10 disc comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
