Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FOIL DISC HMF / IMP, F01 AERO Carbon tech. Road Race geometry Replaceable Dropout STD Seattube / INT BB
Suspension Fork
FOIL DISC HMF 1 1/4" - 1 1/2" Carbon steerer Integrated Carbon Dropout
Drivetrain
Rear Derailleur
Shimano Ultegra RD-R8000 22 Speed
Front Derailleur
Shimano Ultegra FD-R8000
Shift Levers
Shimano Ultegra ST-R8020 Carbon Dual control 22 Speed
Cassette
Shimano Ultegra CS-R8000 11-30
Crank
Shimano Ultegra FC-R8000 Hollowtech II 52x36 T
Bottom Bracket
Shimano SM-BB72-41B
Chain
Shimano CN-HG701-11
Wheels
Rims
Syncros RR2.0 Disc 28 Front / 28 Rear Syncros RWS
Tires
Continental Grand Sport Race Fold 700x28C
Brakes
Brakes
Shimano BR-R8070 Hyd Disc 160/F and 160/Rmm SM-RT800 CL Rotor
Cockpit
Stem
Syncros FOIL 1 1/4"
Handlebar
Syncros Creston 1.5 Compact 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros RR2.0
Seatpost
Syncros FOIL aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.34 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 571 mm | 577 mm | 579 mm | 586 mm | 593 mm | 602 mm | 611 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 77 mm | 73 mm | 67 mm | 64 mm | 61 mm | 59 mm | 59 mm |
| Stack | 504.6 mm | 511 mm | 528.7 mm | 549.5 mm | 570.3 mm | 590.5 mm | 609.7 mm |
| Reach | 372.6 mm | 380.8 mm | 386 mm | 390.9 mm | 396.5 mm | 402 mm | 405.4 mm |
| Top Tube Length | 512 mm | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 974 mm | 980 mm | 982 mm | 989 mm | 996 mm | 1004 mm | 1014 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 717 mm | 731 mm | 755 mm | 775 mm | 800 mm | 814 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview

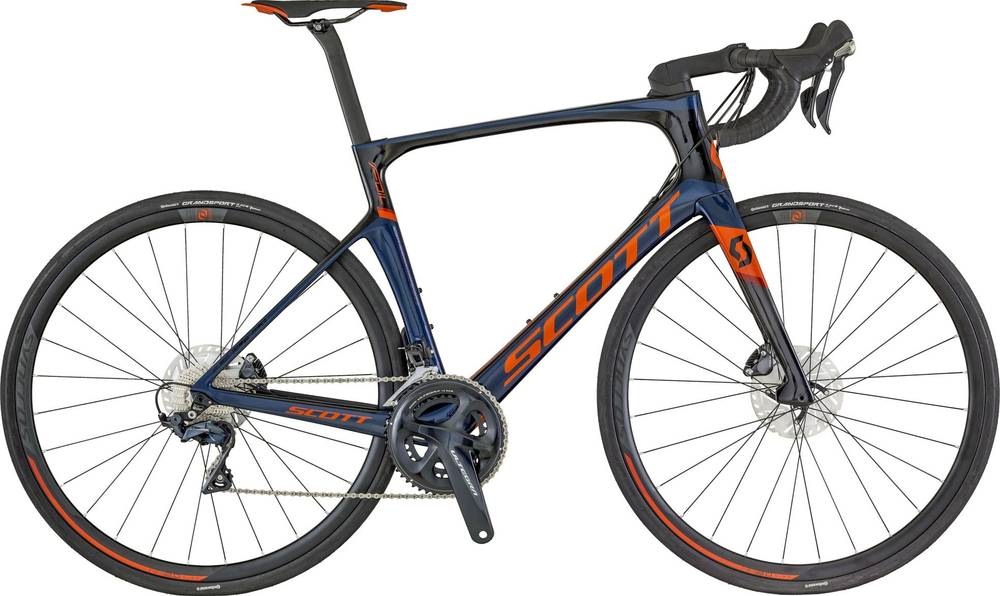

Foil 20 disc completes the Scott Foil model. Scott released 37 bikes variations of this model so far. You can easily view all of the Scott Foil bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Aero bikes
Aero bikes weigh an average of 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, Foil 20 disc has a weight of 8.25 kg (18.19 lbs). To sum up, it’s 12.4% heavier than the average weight of Aero bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Scott Foil 20 disc 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, finding one for you shouldn’t be a problem.
