Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FOIL HMF / IMP, F01 AERO Carbon tech. Road Race geometry Replaceable Dropout STD Seattube / INT BB
Suspension Fork
FOIL HMF 1 1/4" - 1 1/2" Carbon steerer Integrated Carbon Dropout
Drivetrain
Rear Derailleur
Shimano 105 RD-5800 22 Speed
Front Derailleur
Shimano 105 FD-5800
Shift Levers
Shimano 105 ST-5800 Dual control 22 Speed
Cassette
Shimano 105 CS-5800 11-28
Crank
Shimano 105 FC-5800 Compact Hyperdrive 52x36 T
Bottom Bracket
Shimano BB-RS500-PB
Chain
Shimano CN-HG601-11
Wheels
Front Hub
Shimano WH-RS330
Rear Hub
Shimano WH-RS330
Rims
Shimano WH-RS330 16 Front / 20 Rear
Spokes
Shimano WH-RS330
Tires
Continental Grand Sport Race Fold 700x25C
Brakes
Brakes
Tektro T531 / T541 rear Direct mount
Cockpit
Stem
Syncros FOIL 1 1/4"
Handlebar
Syncros RR2.0 Anatomic 31.8mm
Headset
Syncros Integrated
Seat
Saddle
Syncros RR2.0
Seatpost
Syncros FOIL aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.38 mm | 1.42 mm | 1.45 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 576 mm | 582 mm | 584 mm | 591 mm | 599 mm | 607 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 68 mm | 62 mm | 59 mm | 56 mm | 54 mm | 54 mm |
| Stack | 495.6 mm | 502 mm | 519.7 mm | 540.5 mm | 561.3 mm | 581.5 mm | 600.7 mm |
| Reach | 363.6 mm | 371.8 mm | 377 mm | 381.9 mm | 387.5 mm | 393 mm | 396.4 mm |
| Top Tube Length | 503 mm | 513 mm | 528 mm | 543 mm | 558 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 430 mm | 460 mm | 480 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 110 mm | 115 mm | 130 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm | 398 mm |
| Wheelbase | 965 mm | 971 mm | 973 mm | 980 mm | 987 mm | 995 mm | 1005 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 708 mm | 722 mm | 746 mm | 766 mm | 791 mm | 805 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |

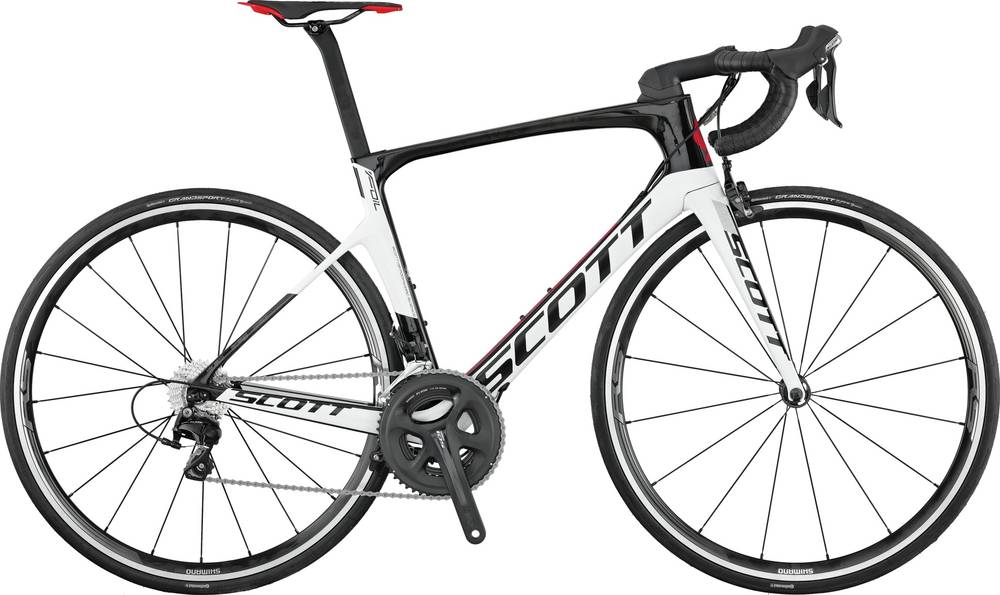

About this model
Foil 30 completes the Scott Foil model. Scott launched 37 bikes of this model so far. Take a sneak peek at all Scott Foil bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Aero bikes average weight
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Foil 30 weighs 8.2 kg (18.08 lbs) and is considerably heavier than the average. To sum up, it’s 11.72% heavier than the average weight of Aero bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Foil 30 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Foil 30 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Scott Foil 30 bike has 7 sizes, in the range of 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, finding one for you shouldn’t be a problem.
