Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Fork Fox Rhythm Float 34 -
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genius Alloy 6061 custom butted Hydroformed tubes / tapered Headtube BB92 / IDS SL DM dropout for 142x12mm U-Mono Link / rear 180PM BB height adj.
Suspension Fork
FOX 34 Float Rhythm Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer Reb. Adj. / Lockout
Rear Shock
FOX Float Performace 3 modes / Lockout - Trail - Descend DPS / Reb. Adj.
Drivetrain
Rear Derailleur
Shimano XT RD-M786 SGS DM / Shadow Plus / 20 Speed
Front Derailleur
Shimano Deore FD-M618-E / DM
Shift Levers
Shimano Deore SL-M610-I / Rapidfire Plus 2 way release w/gear indicator
Cassette
Shimano CS-HG50-10 / 11-36 T
Crank
Shimano FC-M627-2 / 2-piece Design 36x22 T
Bottom Bracket
Shimano BB-MT500-PA / shell 41x89.5mm
Chain
KMC X10
Wheels
Front Hub
Shimano HB-M618-B CL / 15x110mm
Rear Hub
Shimano FH-M618 CL / 12x142mm RWS axle
Rims
Syncros X-25 / 32H / Tubeless ready
Spokes
Stainless Black 15G / 1.8mm
Tires
Schwalbe Nobby Nic Performance / 2.35 67EPI Kevlar Bead Dual compound
Brakes
Brakes
Shimano M506 Disc 180mm F & R / SM-RT54 CL Rotor
Cockpit
Stem
Syncros TR2.0 6061 / 3D forged / oversize 31.8mm 1 1/8" / 700 Series: +6° / 900 Series: -6°
Handlebar
Syncros FL2.0 mini Riser / Alloy 6061D.B. 12mm rise / 9° / 740mm
Headset
Syncros Pro Press Fit / Tapered 1.5" - 1 1/8" OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros XM2.0 / CROM rails
Seatpost
Syncros Dropper 2.0 / YSP12 ICR / Remote 31.6mm / S size 100mm / M, L & XL 120mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 350.4 mm | 344.9 mm | 350.4 mm | 344.9 mm | 350.4 mm | 344.9 mm | 350.4 mm | 344.9 mm |
| Front Center | 683 mm | 684 mm | 714 mm | 715 mm | 740 mm | 741 mm | 767 mm | 768 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 93 mm | 96 mm | 93 mm | 96 mm | 93 mm | 96 mm | 92 mm | 96 mm |
| Stack | 583.5 mm | 586.8 mm | 592.7 mm | 596.1 mm | 601.9 mm | 605.3 mm | 615.7 mm | 619.2 mm |
| Reach | 404.1 mm | 399.4 mm | 431.4 mm | 426.7 mm | 453.7 mm | 449.1 mm | 474.7 mm | 470.1 mm |
| Top Tube Length | 566.6 mm | 567.9 mm | 596.6 mm | 597.9 mm | 621.6 mm | 622.9 mm | 646.6 mm | 647.9 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74.5 ° | 74 ° | 74.5 ° | 74 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 415 mm | 415 mm | 440 mm | 440 mm | 475 mm | 475 mm | 510 mm | 510 mm |
| Head Tube Angle | 68.4 ° | 67.9 ° | 68.4 ° | 67.9 ° | 68.4 ° | 67.9 ° | 68.4 ° | 67.9 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 135 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1119 mm | 1120 mm | 1150 mm | 1151 mm | 1177 mm | 1177 mm | 1203 mm | 1204 mm |
| Bottom Bracket Drop | 6 mm | 11 mm | 6 mm | 11 mm | 6 mm | 11 mm | 6 mm | 11 mm |
| Standover Height | 773 mm | 771 mm | 775 mm | 772 mm | 808 mm | 805 mm | 810 mm | 807 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

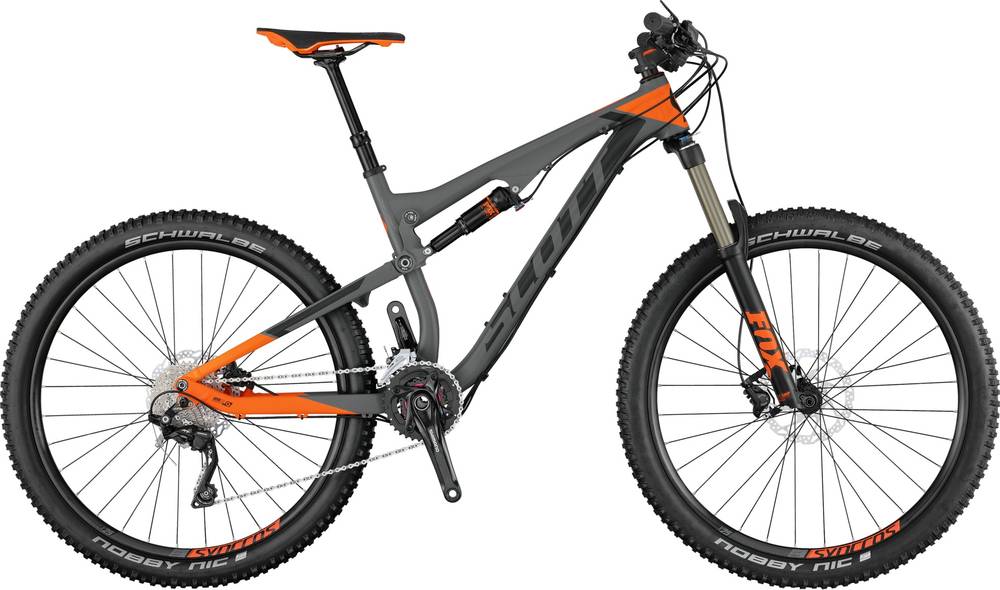

Genius 740 completes the Scott Genius model. Scott released 80 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.4 kg (29.54 lbs), the Genius 740 model is slightly heavier than average. In short, the average Trail bike weight is 3.24% lower than this one.
Genius 740 components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Scott Genius 740 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Genius 740 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Scott Genius 740 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
