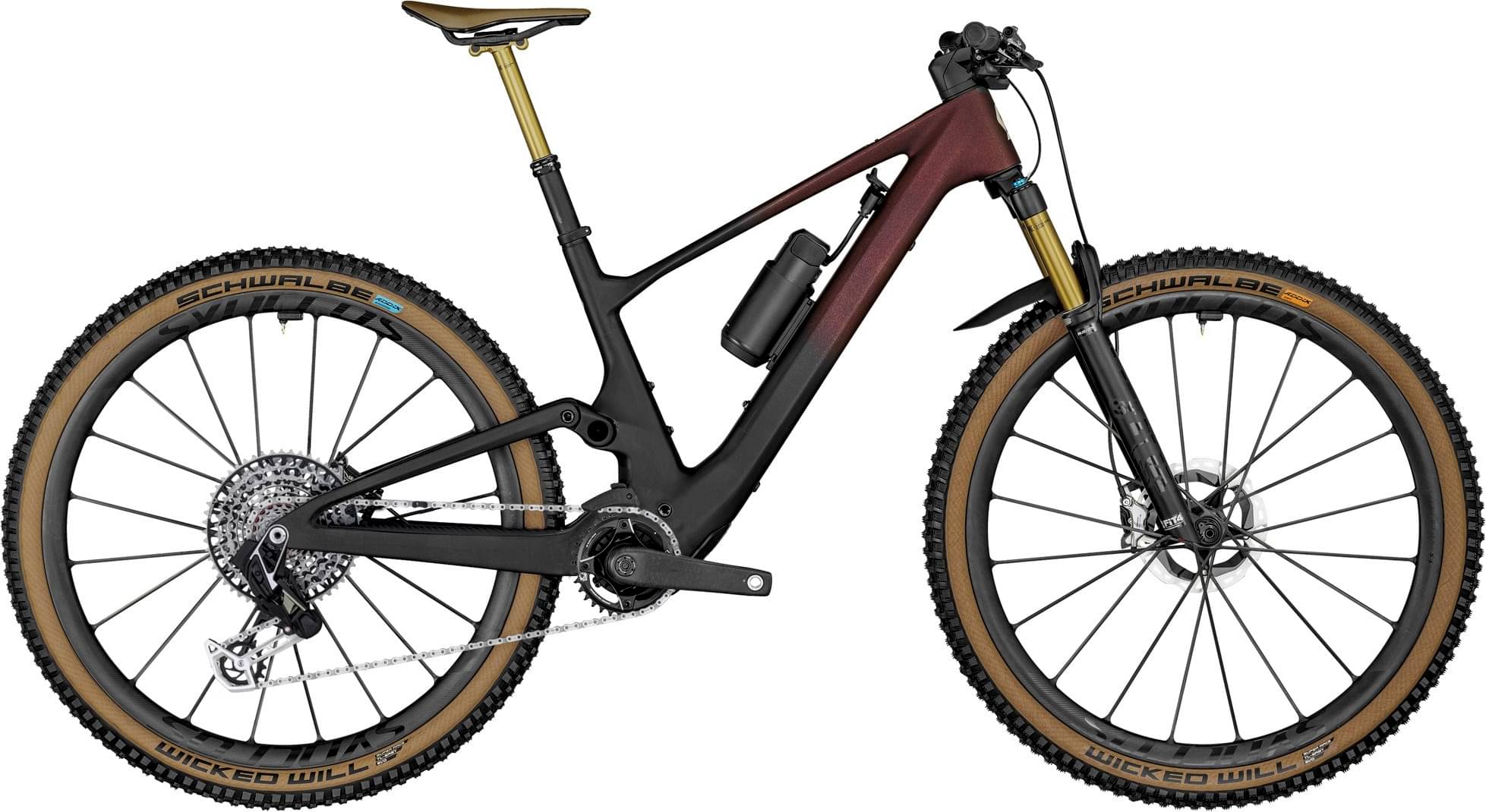

Scott Lumen eRIDE 900 SL TR 2023
2023 E-bike
Estimate price |
17,203$
Weight | 15.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor TQ 50Nm mid-drive -
Battery TQ Internal 360Wh + Range Extender 160Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Suspension Fork
FOX 34 Float Factory Air / Kashima FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset Tapered steerer / Lockout / Reb. Adj. 130mm travel
Rear Shock
FOX NUDE 5T Factory EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Kashima / Reb. Adj. Travel 130-90-Lockout / T165X45mm
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM AXS Pod Ultimate Controller
Cassette
SRAM XX Eagle XS 1297 Transmission 10-52
Crank
FSA Carbon crankset / 175mm / 34T
Chain
SRAM CN XX Eagle Transmission
Chain Guide
e*thirteen / e*spec Slider
Wheels
Rims
Syncros Silverton SL2-30 CL full Carbon F: 15x110mm R: 12x148mm / 30mm Tubeless ready rim DT Swiss 240 Ratchet EXP 36 / XD Driver SRAM TyreWiz / Syncros SL Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
Tires
Front: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip
Brakes
Brakes
Shimano XTR M9120 4 Piston Disc
Cockpit
Handlebar
Syncros Fraser iC SL DC Carbon 0° rise / back sweep 8° / mini Rise / 760mm Syncros Performance XC lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino Regular 1.0 Carbon rails
Seatpost
FOX Transfer Factory Dropper Post Kashima 31.6mm / S size 125mm / M size 140mm L ize 150mm / XL size 175mm
Motor & Battery
Motor
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery
TQ Internal 360Wh + Range Extender 160Wh
Charger
TQ 100-240V-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.38 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 338.5 mm | 338.5 mm | 338.5 mm | 338.5 mm |
| Front Center | 729 mm | 759 mm | 793 mm | 823 mm |
| Rake | 45 mm | 45 mm | 44 mm | 43 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 613 mm | 613 mm | 623 mm | 636 mm |
| Reach | 414 mm | 444 mm | 474 mm | 499 mm |
| Top Tube Length | 560 mm | 587 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76.8 ° | 77 ° | 77.2 ° | 77.5 ° |
| Seat Tube Length | 415 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1174 mm | 1204 mm | 1238 mm | 1268 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 763 mm | 765 mm | 778 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Lumen eRIDE 900 SL TR belongs to the Scott E Lumen model. There are 6 e-bikes that carry this model name. Take a sneak peek at all Scott E Lumen e-bikes models from 2023, by clicking here.
Model range prices
Scott Lumen eRIDE 910 2023 is the most economical model, with a starting price of 6999$. Scott Lumen eRIDE 900 SL 2023 on the other hand costs 15999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Scott Lumen eRIDE 900 SL TR price was 15883$. If we compare this with the average Trail e-bike cost we notice that the price is 372.01% higher.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Lumen eRIDE 900 SL TR weighs 15.5 kg (34.17 lbs) and is much lighter than the average. In other words, this model is 52.9% lighter than the average Trail e-bike.
Lumen eRIDE 900 SL TR components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX NUDE 5T Factory EVOL Trunnion model, with a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Scott Lumen eRIDE 900 SL TR 2023, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Lumen eRIDE 900 SL TR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Scott Lumen eRIDE 900 SL TR comes with a dropper post. Therefore, climbing or descending will be a breeze.
