Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Metrix Disc / 6061 D.Butted Alloy Endurance geometry / Integrated Headtube
Suspension Fork
Metrix Disc Carbon 1 1/8"-1 1/4" Carbon steerer Alloy Dropout
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700-GS 20 Speed
Front Derailleur
Shimano Tiagra FD-4700
Shift Levers
Shimano SL-RS700
Cassette
Shimano CS-HG500 10 Speed 11-32 T
Crank
Shimano Tiagra Compact FC-4700 Hyperdrive 50x34 T
Bottom Bracket
Shimano BB-RS500-PB
Chain
KMC X10
Wheels
Front Hub
Formula Team CL Disc 28 H
Rear Hub
Formula Team CL Disc 28 H
Rims
Syncros Race 24 Disc 28 Front / 28 Rear
Spokes
SHA-DAR Black 2mm
Tires
Schwalbe Spicer 700x35C
Brakes
Brakes
Shimano BR-RS405 Hyd Disc160/F and 160/R mm SM-RT70 CL Rotor
Brake Levers
Shimano BL-RS600
Cockpit
Stem
JD ST123A Alloy 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Flat-Bar FL2.0 580mm
Headset
Integrated Steel Cup
Seat
Saddle
Syncros FL2.5
Seatpost
Syncros RR2.5 27.2/300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 568 mm | 574 mm | 576 mm | 581 mm | 586 mm | 593 mm | 607 mm |
| Rake | 36 mm | 36 mm | 35 mm | 35 mm | 35 mm | 35 mm | 40 mm |
| Trail | 85 mm | 82 mm | 77 mm | 73 mm | 70 mm | 68 mm | 63 mm |
| Stack | 518.7 mm | 529.9 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 615.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 111 mm | 121 mm | 141 mm | 161 mm | 181 mm | 201 mm | 221 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 975 mm | 981 mm | 983 mm | 988 mm | 993 mm | 1001 mm | 1014 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 743 mm | 769 mm | 789 mm | 809 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview

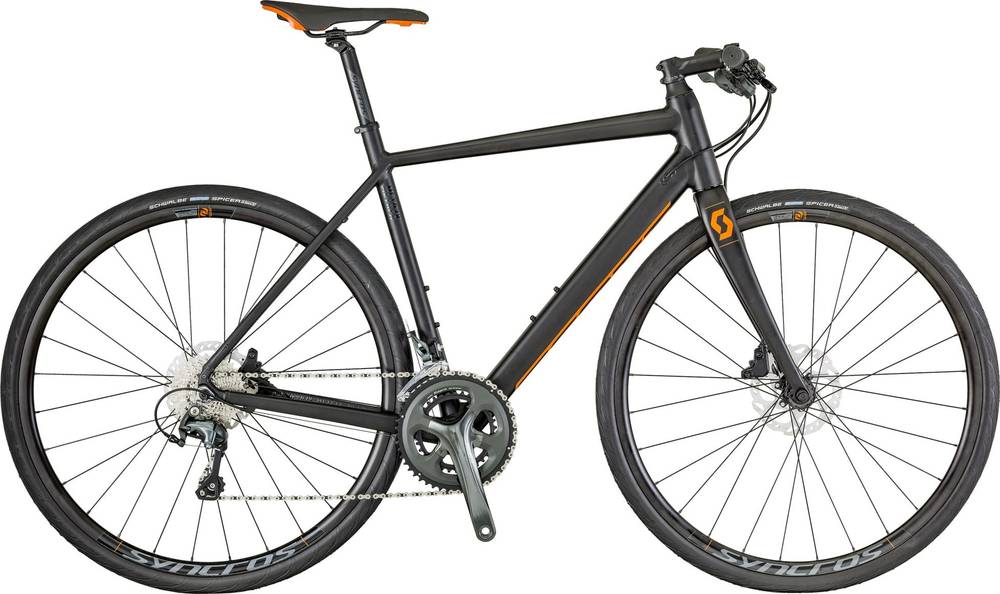

Metrix 20 disc belongs to the Scott Metrix model. There are 16 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness bikes average price
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Fitness bikes
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 10.1 kg (22.27 lbs), the Metrix 20 disc model is considerably lighter than average. To sum up, it’s 11.29% lighter than the average weight of Fitness bikes.
Metrix 20 disc components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Metrix 20 disc are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Metrix 20 disc comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Metrix 20 disc comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, finding one for you shouldn’t be a problem.
