Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris, Shimano -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Metrix Disc / 6061 D.Butted Alloy Endurance geometry / Integrated Headtube
Suspension Fork
Metrix Disc Alloy 1 1/8" Alloy steerer
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-GS 16 Speed
Front Derailleur
Shimano Claris FD-R2000
Shift Levers
Shimano SL-R2000
Cassette
Shimano CS-HG50 8 Speed 11-32 T
Crank
Shimano FC-RS200 50x34 T
Bottom Bracket
Shimano BB-RS500
Chain
KMC X8
Wheels
Front Hub
Formula Team CL Disc 28 H
Rear Hub
Formula Team CL Disc 28 H
Rims
Syncros Race 23 Disc 28 Front / 28 Rear
Spokes
SHA-DAR Black 2mm
Tires
Schwalbe Spicer 700x35C
Brakes
Brakes
Shimano BR-UR300 Hyd Disc160/F and 160/R mm SM-RT10 CL Rotor
Brake Levers
Shimano BL-MT201
Cockpit
Stem
JD ST123A Alloy 1 1/8" / four Bolt 31.8mm
Handlebar
Syncros Flat-Bar FL2.0 580mm
Headset
Integrated Steel Cup
Seat
Saddle
Syncros FL2.5
Seatpost
Syncros RR2.5 27.2/300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.41 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 568 mm | 574 mm | 576 mm | 581 mm | 586 mm | 593 mm | 607 mm |
| Rake | 36 mm | 36 mm | 35 mm | 35 mm | 35 mm | 35 mm | 40 mm |
| Trail | 85 mm | 82 mm | 77 mm | 73 mm | 70 mm | 68 mm | 63 mm |
| Stack | 518.7 mm | 529.9 mm | 552.5 mm | 573.3 mm | 594.3 mm | 614.5 mm | 615.6 mm |
| Reach | 368.6 mm | 375.5 mm | 379.3 mm | 383.2 mm | 386.6 mm | 391 mm | 399 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 547 mm | 562 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73.1 ° | 73 ° |
| Seat Tube Length | 470 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 111 mm | 121 mm | 141 mm | 161 mm | 181 mm | 201 mm | 221 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 975 mm | 981 mm | 983 mm | 988 mm | 993 mm | 1001 mm | 1014 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 727 mm | 743 mm | 769 mm | 789 mm | 809 mm | 829 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model

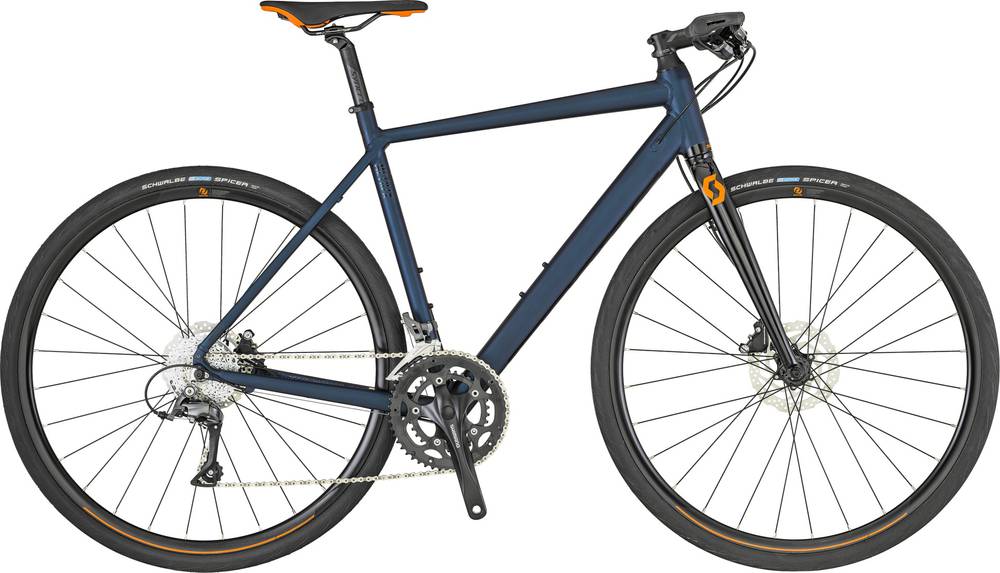

Metrix 30 is a Scott Metrix model. There are 16 bikes that carry this model name. Take a sneak peek at all Scott Metrix bikes models from 2019, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Scott Metrix 30 it’s weighing 11.16 kg (24.6 lbs). At this weight, is slightly lighter than average. In conclusion, the average Fitness bike weighs 0.72% more than Metrix 30.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The Metrix 30 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Metrix 30 comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, you won’t have a problem finding one that suits you.
