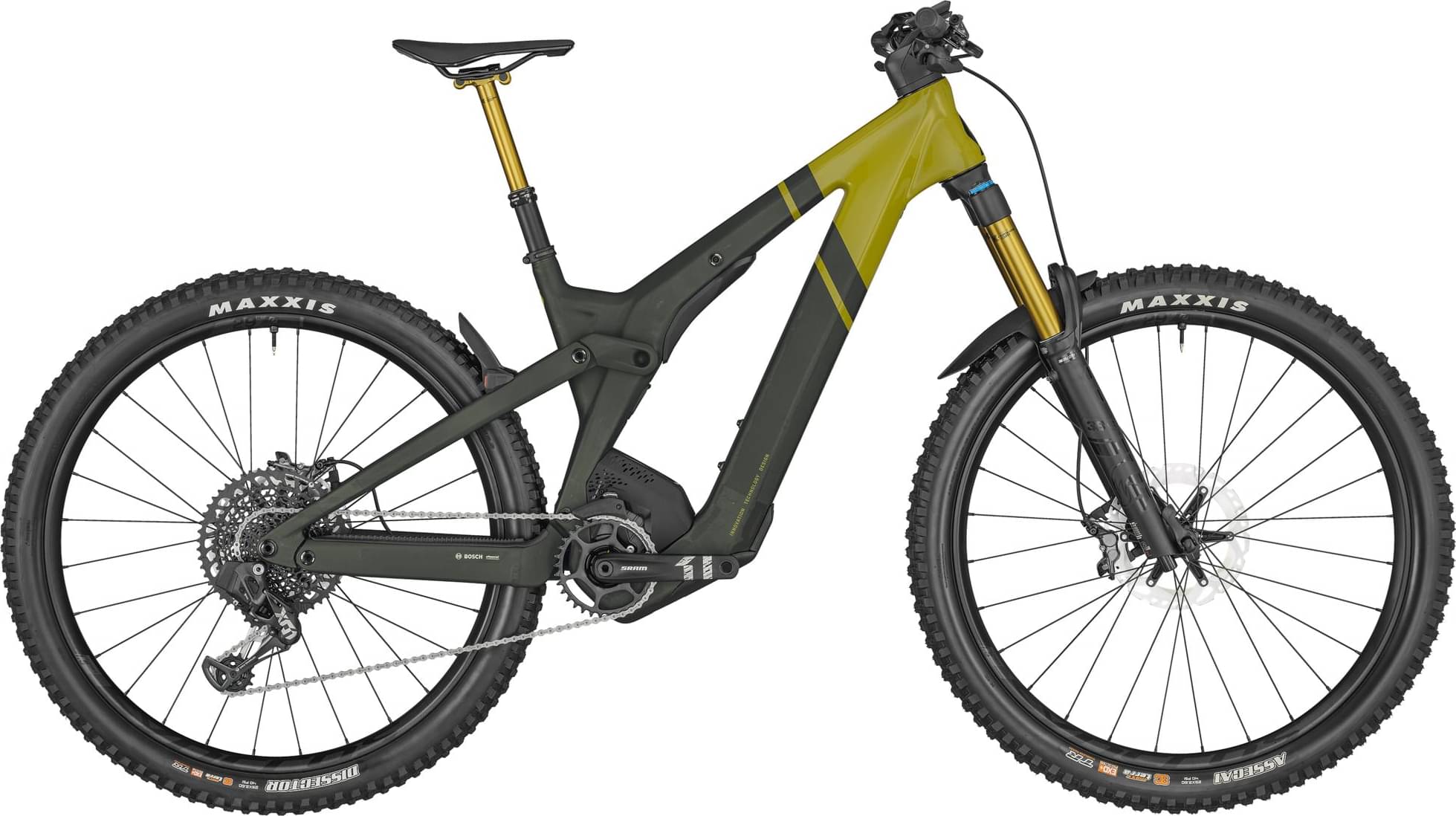

Scott Patron ST eRIDE 900 Tuned 2023
2023 E-bike
Estimate price |
14,050$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Main Frame & SST / Alloy CST-Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable
Suspension Fork
FOX 38 FIT Factory Grip 2 Air / Kashima HSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm 44mm offset / tapered steerer 170mm travel
Rear Shock
FOX NUDE T eRIDE EVOL Kashima / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM XG1275 / 10-52 T
Crank
SRAM X1 1000 / 165mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM CN NX Eagle
Chain Guide
e*thirteen / e*spec Slider
Wheels
Rims
Syncros Revelstoke-E 1.5 CL F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H Syncros Axle w/Removable Lever with Tool
Tires
Front: Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra, Rear: Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
Brakes
Brakes
Shimano XT / BR-M8120 4 Piston
Cockpit
Handlebar
Syncros Hixon iC SL / 15mm Rise / integrated cockpit S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension 7° backsweep / 6° upsweep / Syncros Endurance lock-on grips
Headset
Acros / 1.8" ZS66 OD74 / integr. Cable
Seat
Saddle
Syncros Tofino 1.5 Regular Titanium rails
Seatpost
FOX Transfer Factory Dropper Post Kashima 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Motor & Battery
Motor
Bosch Performance CX-R EU: 25kmh / INT: 20mph
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.48 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 778 mm | 788 mm | 820 mm | 851 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 135.4 mm | 131.6 mm | 131.4 mm | 131.3 mm |
| Stack | 632.7 mm | 640.3 mm | 649.5 mm | 658.8 mm |
| Reach | 418.4 mm | 431.4 mm | 459.3 mm | 486.9 mm |
| Top Tube Length | 572.4 mm | 588 mm | 618.6 mm | 649.4 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 410 mm | 470 mm | 470 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1223 mm | 1233 mm | 1265 mm | 1297 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 765 mm | 765 mm | 765 mm | 765 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Patron ST eRIDE 900 Tuned is a Scott E Patron model. 20 e-bikes variations carry this model name so far. Take a sneak peek at all Scott E Patron e-bikes models from 2023, by clicking here.
Model range prices
Scott Patron eRIDE 920 2023 is the most affordable e-bike of this model and has a price of 6299$. On the other hand, Scott Patron eRIDE 900 Ultimate 2023, is the most expensive and costs 14596$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 12771$. Comparing the average cost of an Enduro e-bike to this one, you will see that Patron ST eRIDE 900 Tuned price is 166.9% more expensive.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 23.6 kg (52.03 lbs), the Patron ST eRIDE 900 Tuned model is slightly heavier than average. In conclusion, the average Enduro e-bike weighs 0.77% less than Patron ST eRIDE 900 Tuned.
Overview of components
Fork
The Patron ST eRIDE 900 Tuned comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Patron ST eRIDE 900 Tuned has a rear shock with a travel of 160mm. The model FOX NUDE T eRIDE EVOL Kashima is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Patron ST eRIDE 900 Tuned 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Scott Patron ST eRIDE 900 Tuned includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
