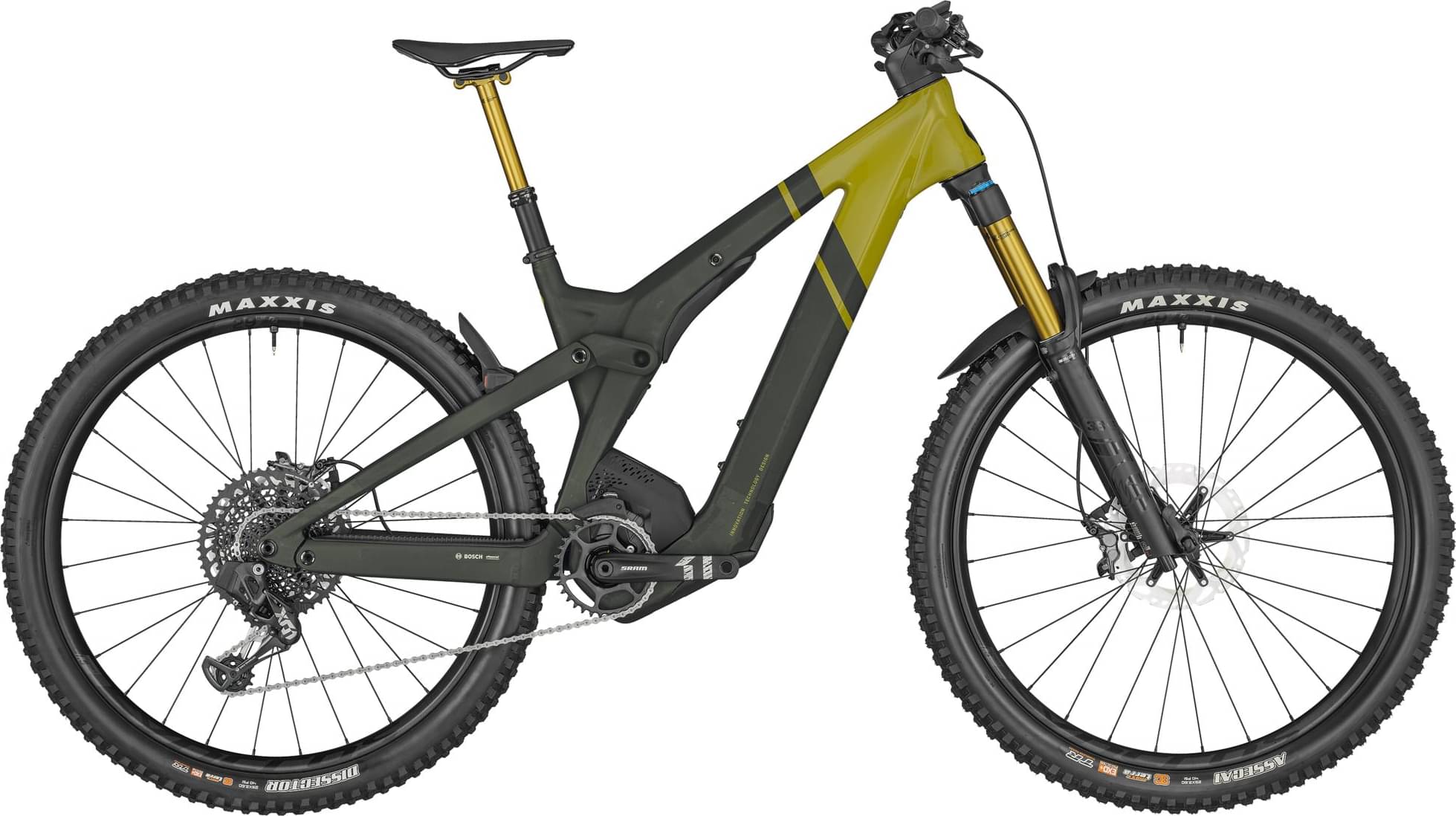

Scott Patron ST eRIDE 900Tuned 2023
2023 E-bike
Weight | 23.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Main Frame & SST / Alloy CST-Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable
Suspension Fork
FOX 38 FIT Factory Grip 2 Air / Kashima HSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm 44mm offset / tapered steerer 170mm travel
Rear Shock
FOX NUDE T eRIDE EVOL Kashima / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM XG1275 / 10-52 T
Crank
SRAM X1 1000 / 165mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM CN NX Eagle
Chain Guide
e*thirteen / e*spec Slider
Wheels
Rims
Syncros Revelstoke-E 1.5 CL F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H Syncros Axle w/Removable Lever with Tool
Tires
Front: Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra, Rear: Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
Brakes
Brakes
Shimano XT / BR-M8120 4 Piston
Cockpit
Handlebar
Syncros Hixon iC SL / 15mm Rise / integrated cockpit S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension 7° backsweep / 6° upsweep / Syncros Endurance lock-on grips
Headset
Acros / 1.8" ZS66 OD74 / integr. Cable
Seat
Saddle
Syncros Tofino 1.5 Regular Titanium rails
Seatpost
FOX Transfer Factory Dropper Post Kashima 31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Motor & Battery
Motor
Bosch Performance CX-R EU: 25kmh / INT: 20mph
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.48 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 778 mm | 788 mm | 820 mm | 851 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 135.4 mm | 131.6 mm | 131.4 mm | 131.3 mm |
| Stack | 632.7 mm | 640.3 mm | 649.5 mm | 658.8 mm |
| Reach | 418.4 mm | 431.4 mm | 459.3 mm | 486.9 mm |
| Top Tube Length | 572.4 mm | 588 mm | 618.6 mm | 649.4 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 410 mm | 470 mm | 470 mm | 500 mm |
| Head Tube Angle | 63.8 ° | 64.4 ° | 64.4 ° | 64.4 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1223 mm | 1233 mm | 1265 mm | 1297 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 765 mm | 765 mm | 765 mm | 765 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Patron ST eRIDE 900Tuned completes the Scott E Patron model. Scott launched 20 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Scott Patron eRIDE 920 2023 is the cheapest e-bike model and costs 6299$. Scott Patron eRIDE 900 Ultimate 2023 is the most expensive one and costs 14596$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Patron ST eRIDE 900Tuned weighs 23.6 kg (52.03 lbs) and is slightly heavier than the average. To sum up, it’s 0.77% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX NUDE T eRIDE EVOL Kashima model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Patron ST eRIDE 900Tuned model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Patron ST eRIDE 900Tuned has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Scott Patron ST eRIDE 900Tuned comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
