Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Plasma 5 / IMP technology / HMX TT / TRI Geometry / Plasma HMX seatpost / Replaceable hanger / UCI approved
Suspension Fork
Plasma 5 1"- 1 1/8" Carbon / integrated
Drivetrain
Rear Derailleur
Shimano Ultegra RD-6870 22 Speed Electronic
Front Derailleur
Shimano Ultegra FD-6870 Eletronic Shift System
Shift Levers
Shimano Di2 SW-R671
Cassette
Shimano Ultegra CS-6800 11-25
Crank
Shimano Ultegra FC-6800 39/53 T
Bottom Bracket
Ultegra SM-BB72-41B
Chain
Shimano CN-HG701-11
Wheels
Front Hub
Formula RB 25
Rear Hub
Formula RB 2611
Rims
Syncros Race 22 Aero Profile 24 Front / 28 Rear
Spokes
CN - Standard Black 2mm
Tires
Continental Grand Sport Race 700x25C Fold
Brakes
Brakes
Front: SCOTTT KB136 Rear: Shimano Ultegra BR-6810R, direct mount
Brake Levers
Shimano Di2 ST-6871
Cockpit
Stem
Profile Plasma 5 TRI, 30°, 85mm
Handlebar
Profile Plasma 5 Aeria, flat, 420mm Profile T5+Carbon
Headset
Syncros Integrated 1 - 1 1/8" drop-in headset
Seat
Saddle
Syncros RR1.5 TRI
Seatpost
Plasma HMX with Ritchey WCS clamp adjustable head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.4 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 571 mm | 589 mm | 615 mm | 635 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 66 mm | 60 mm | 60 mm | 57 mm |
| Stack | 503.8 mm | 533.8 mm | 563.8 mm | 593.8 mm |
| Reach | 373.8 mm | 390.8 mm | 407.8 mm | 423.8 mm |
| Top Tube Length | 517.8 mm | 537.8 mm | 557.8 mm | 576.8 mm |
| Seat Tube Angle | 74 ° | 75 ° | 75 ° | 76 ° |
| Seat Tube Length | 529.8 mm | 559.6 mm | 589.4 mm | 619.2 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 138 mm | 170 mm | 199 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 958 mm | 976 mm | 1002 mm | 1022 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 772 mm | 802 mm | 832 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

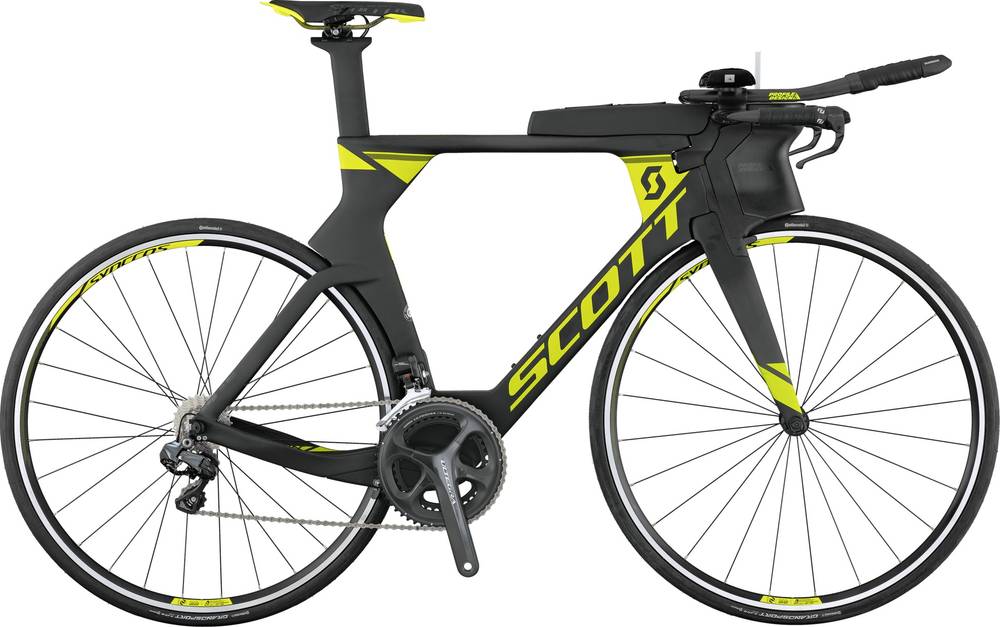

Model Overview
Plasma RC belongs to the Scott Plasma model. Scott launched 18 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Triathlon bikes average price
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Triathlon bikes average weight
On a deeper look, we notice that the average weight of a Triathlon bike is 8.9 kg (19.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Scott Plasma RC it’s weighing 9.32 kg (20.55 lbs). At this weight, is slightly heavier than average. In short, the average Triathlon bike weight is 4.72% lower than this one.
Plasma RC components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Plasma RC bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Plasma RC comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
